Fuse Block - Rear Bottom View

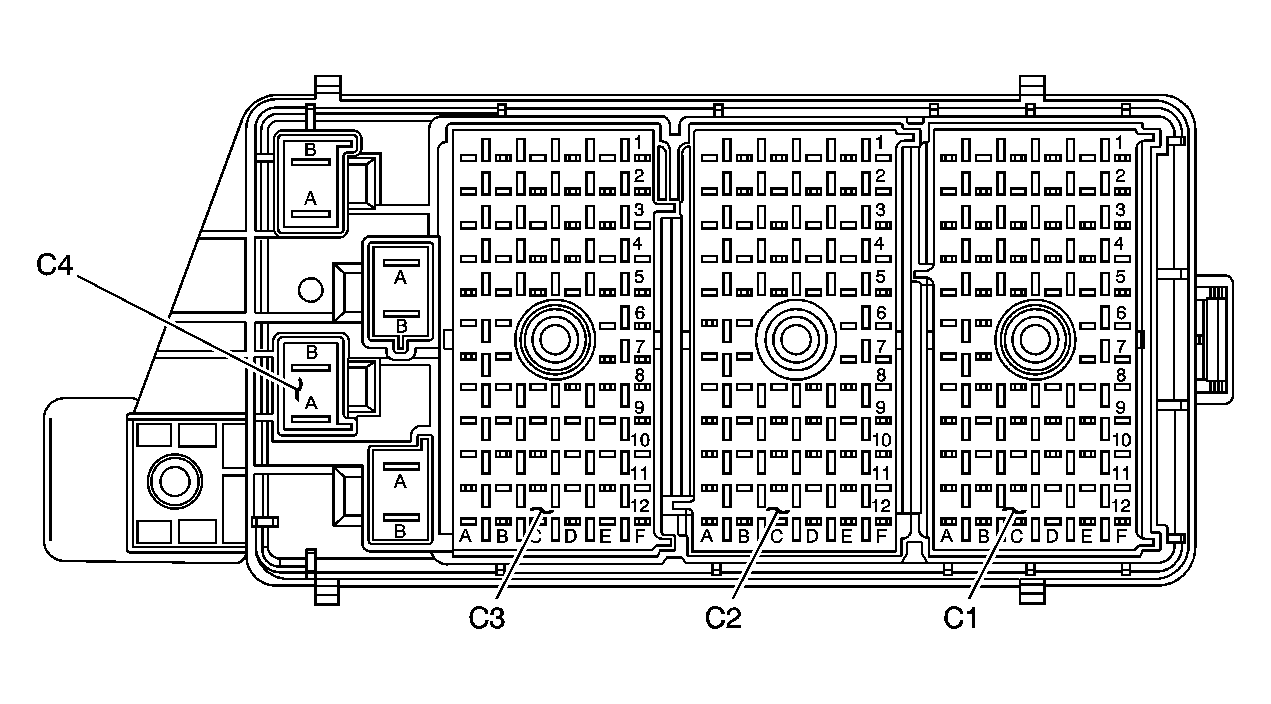

Fig 1: Fuse Block - Rear Bottom View
GM879499Courtesy of GENERAL MOTORS CORP.
Fuse Block - Rear C1

GM280787Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15303512
  • 68-Way F Metri-Pack 280 Series (LT GRY)
Pin Wire Color Circuit No. Function
A1 ORN 1340 Battery Positive Voltage
A2 - - Not Used
A3 BRN/WHT 309 Right Park Lamp Supply Voltage
A4 YEL 32 Instrument Panel Lamp Fuse Supply Voltage - 1
A5-A8 - - Not Used
A9 ORN 440 Battery Positive Voltage
A10 BRN 141 Ignition 3 Voltage
A11 ORN 300 Ignition 3 Voltage
A12 - - Not Used
B1 - - Not Used
B2 YEL 1139 Ignition 1 Voltage
B3 BRN/WHT 309 Right Park Lamp Supply Voltage
B4 PPL 709 Left Park Lamp Supply Voltage
B5 PNK/BLK 1615 Park Brake Relay Control
B6 LT GRN 275 Park Neutral Position Switch Park Signal
B7 LT BLU 2182 Reverse Lamp Relay Control
B8 LT GRN 24 Backup Lamp Supply Voltage
LT GRN 24 Backup Lamp Supply Voltage
B9-B12 - - Not Used
C1-C4 - - Not Used
C5 ORN 1640 Battery Positive Voltage
C8 LT GRN 24 Backup Lamp Supply Voltage
C9 ORN 540 Battery Positive Voltage
ORN 540 Battery Positive Voltage
C10 - - Not Used
C11 BRN 41 Ignition 3 Voltage
C12 BRN 241 Ignition 3 Voltage
D1 - - Not Used
D2 BLK 750 Ground
D3 - - Not Used
D4 DK GRN 1483 Control Power Output
DK GRN 1483 Control Power Output
D5-D8 - - Not Used
D9 PNK 70 RAP Relay Switch Supply Voltage
D10 DK GRN 1399 RAP Relay Coil Supply Voltage
D11-D12 - - Not Used
E1-E2 - - Not Used
E3 ORN 840 Battery Positive Voltage
E4 PPL 709 Left Park Lamp Supply Voltage
E5-E8 - - Not Used
E9 ORN 540 Battery Positive Voltage
E10 ORN 540 Battery Positive Voltage
E11 - - Not Used
E12 ORN 3740 Battery Positive Voltage
F1 DK GRN/
WHT		 465 Fuel Pump Relay Control
F2 GRY 120 Fuel Pump Supply Voltage
F3 WHT 1080 Park Lamp Relay Control
F4 - - Not Used
F5 ORN 840 Battery Positive Voltage
F6-F11 - - Not Used
F12 ORN 3740 Battery Positive Voltage
Fuse Block - Rear C2

GM280786Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15303514
  • 68-Way F Metri-Pack 280 Series (DK GRY)
Pin Wire Color Circuit No. Function
A1-A5 - - Not Used
A6 DK BLU 75 RAP Relay Switch Supply Voltage
A7-A8 - - Not Used
A9 BLK/WHT 56 Trunk Release Motor Supply Voltage
A10 ORN 3640 Battery Positive Voltage
A11 BLK 750 Ground
A12 - - Not Used
B1-B4 - - Not Used
B5 ORN 2240 Battery Positive Voltage
ORN 2240 Battery Positive Voltage
B6-B12 - - Not Used
C1 ORN 3640 Battery Positive Voltage
C2-C3 - - Not Used
C4 ORN 2440 Battery Positive Voltage
C5 ORN 2240 Battery Positive Voltage
C8 - - Not Used
C9 LT BLU 1344 Trunk Release Relay Control
C10-C12 - - Not Used
D1-D11 - - Not Used
D12 DK BLU/WHT 149 Courtesy Lamp Supply Voltage
E1 ORN 2840 Battery Positive Voltage
E2 PNK 3 Ignition 1 Voltage
E3-E10 - - Not Used
E11 TAN 2183 Inadvertent Power Relay Control
E12 DK BLU/WHT 149 Courtesy Lamp Supply Voltage
F1-F2 - - Not Used
F3 PNK 1239 Ignition 1 Voltage
F4 ORN 3840 Battery Positive Voltage
F5-F12 - - Not Used
Fuse Block - Rear C3

GM280784Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15203513
  • 68-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A1-A6 - - Not Used
A7 ORN 740 Battery Positive Voltage
A8-A12 - - Not Used
B1 ORN 640 Battery Positive Voltage
B2-B9 - - Not Used
B10 RED 1342 Battery Positive Voltage
B11 - - Not Used
B12 ORN 3340 Battery Positive Voltage
C1 - - Not Used
C2 ORN 1040 Battery Positive Voltage
C3 - - Not Used
C4 WHT 193 Rear Defog Relay Control
C5 PPL 293 Rear Defog Element Supply Voltage
C8-C9 - - Not Used
C10 YEL 321 Automatic Level Control Relay Coil Supply Voltage
C11 DK GRN 322 Automatic Level Control Compressor Motor Control
C12 - - Not Used
D1 ORN 2640 Battery Positive Voltage
D2 ORN 1040 Battery Positive Voltage
D3 PNK 1039 Ignition 1 Voltage
PNK 1039 Ignition 1 Voltage
D4 WHT 193 Rear Defog Relay Control
D5-D11 - - Not Used
D12 ORN 1140 Battery Positive Voltage
E1 - - Not Used
E2 ORN 1040 Battery Positive Voltage
E3 PNK 1039 Ignition 1 Voltage
E4-E10 - - Not Used
E11 ORN 3340 Battery Positive Voltage
E12 - - Not Used
F1 - - Not Used
F2 ORN 1040 Battery Positive Voltage
F3-F5 - - Not Used
F6 BLK 755 RAP Relay Coil Control
F7-F8 - - Not Used
F9 ORN 2540 Battery Positive Voltage
F10-F11 - - Not Used
F12 ORN 1740 Battery Positive Voltage
Fuse Block - Rear C4

GM280790Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160605
  • 2-Way F (GRN)
Pin Wire Color Circuit No. Function
A - - Not Used
B RED 1242 Battery Positive Voltage (w/UZ8)
