Removal Procedure

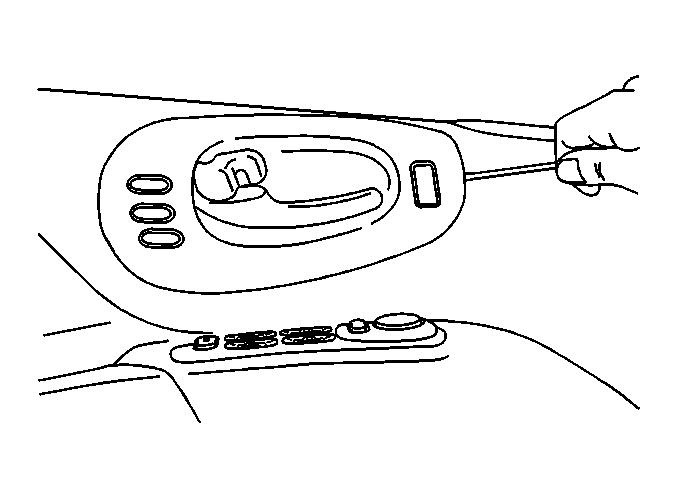

    Fig 1: Locating Door Handle Bezel
    GM710816Courtesy of GENERAL MOTORS CORP.
  1. Remove the inside handle bezel from the door trim pad. Refer to Handle Bezel Replacement - Inside in Doors.
  2. Disconnect the electrical connector for the memory seat switch.

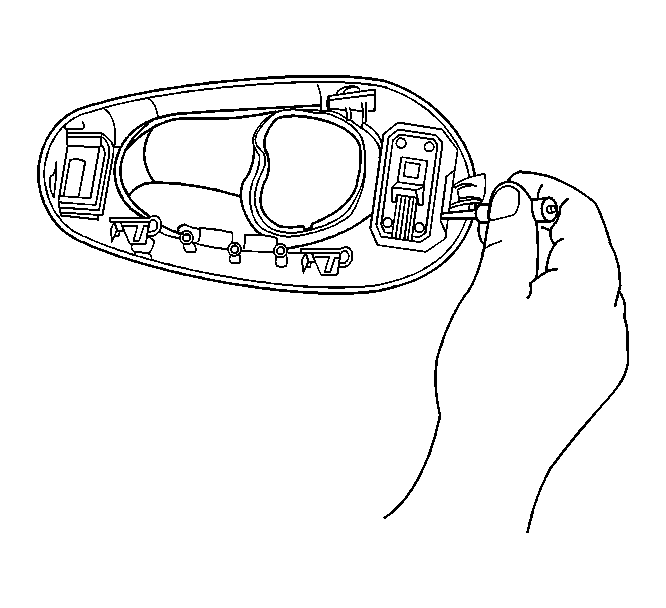

    3. Fig 2: Locating Memory Seat Switch Inside Door Handle Bezel
    GM716715Courtesy of GENERAL MOTORS CORP.
  3. Use a small flat bladed tool in order to release the tabs and remove the memory seat switch from the inside door handle bezel.
