Installation Procedure

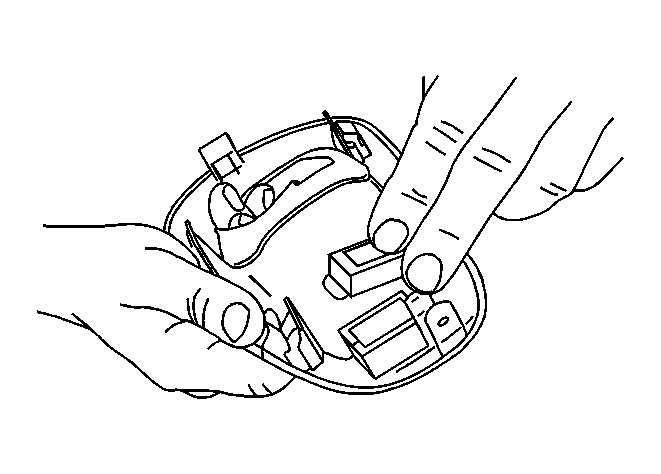

    Fig 1: Installing Memory Seat Switch Inside Door Handle Bezel
    GM524463Courtesy of GENERAL MOTORS CORP.
  1. Snap the memory seat switch to the inside door handle bezel.
  2. Connect the electrical connector to the memory seat switch.
  3. Install the inside door handle bezel to the door trim panel. Refer to Handle Bezel Replacement - Inside in Doors.
