Power Seat Systems Connector End Views

Heated Seat Module - Driver C1 (w/AG1, A80, KA1)

GM62464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064769
  • 10-Way F Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function
A ORN 2440 Battery Positive Voltage
B BRN 41 Ignition 3 Voltage
C LT BLU/WHT 181 Heated Seat Control Module Status Signal
D PNK 1501 Driver Heated Seat High/Low Signal
E - - Not Used
F LT BLU 2179 Driver Heated Seat Off Signal
G YEL 182 Heated Seat Control Module Inhibit Signal
H BRN 1463 Heated Seat Low Temperature Indicator Control
J DK BLU 1461 Heated Seat High Temperature Indicator Control
K BLK 650 Ground
Heated Seat Module - Driver C2 (w/AG1, KA1)

GM40422Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-Pack 150 Series (GRY)
Pin Wire Color Circuit No. Function
A RED - Heater Control
B - - Not Used
C BLK - Controlled Ground
D GRY - Ground
E - - Not Used
F GRY - Temperature Sensor Signal
Heated Seat Module - Front Passenger C1 (w/AG2, A81, KA1)

GM62464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064769
  • 10-Way F Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function
A ORN 2540 Battery Positive Voltage
B BRN 41 Ignition 3 Voltage
C LT BLU/WHT 181 Heated Seat Control Module Status Signal
D PNK/BLK 1503 Passenger Heated Seat High/Low Signal
E - - Not Used
F ORN/BLK 2180 Passenger Heated Seat Off Signal
G YEL 182 Heated Seat Control Module Inhibit Signal
H BRN/WHT 1506 Passenger Heated Seat Low Temperature Indicator Supply Voltage
J DK BLU/WHT 1504 Passenger Heated Seat Indicator Control
K BLK 650 Ground
Heated Seat Module - Front Passenger C2 (w/AG2, KA1)

GM40422Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-Pack 150 Series (GRY)
Pin Wire Color Circuit No. Function
A RED - Heater Control
B - - Not Used
C BLK - Controlled Ground
D GRY - Ground
E - - Not Used
F GRY - Temperature Sensor Signal
Heated Seat Switch - Driver

GM280764Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064993
  • 6-Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
5 BRN 1463 Heated Seat Low Temperature Indicator Control
6 DK BLU 1461 Heated Seat High Temperature Indicator Control
7 PNK 1501 Driver Heated Seat High/Low Signal
8 BLK 450 Ground
9 YEL 1491 Backlight Lamps Control
10 LT BLU 2179 Driver Heated Seat Switch Off Signal
Heated Seat Switch - Front Passenger

GM280764Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064993
  • 6-Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
5 BRN/WHT 1506 Passenger Heated Seat Low Temperature Indicator Control
6 DK BLU/WHT 1504 Passenger Heated Seat Low Temperature Indicator Control
7 PNK/BLK 1503 Passenger Heated Seat High/Low Signal
8 BLK 450 Ground
9 YEL 1491 Backlight Lamps Control
10 ORN/BLK 2180 Passenger Heated Seat Switch Off Signal
Memory/Personalization Function Switch (w/A45)

GM535620Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12066189
  • 4-Way F Micro-Pack 100 Series (NAT)
Pin Wire Color Circuit No. Function
1 WHT 615 Memory 1 Switch Signal
2 PPL 616 Memory 2 Switch Signal
3 BLK/WHT 351 Ground
4 YEL 1491 Backlight Lamps Control
Memory Seat Module C1 (w/A45)

GM35456Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 3740 Battery Positive Voltage
B BLK 650 Ground
Memory Seat Module C2 (w/A45)

GM73157Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110114
  • 32-Way F Micro-Pack 100 Series (WHT)
Pin Wire Color Circuit No. Function
C1 DK GRN 1518 Power Seat Front Vertical Up Switch Signal
C2 YEL 1519 Power Seat Rear Vertical Up Switch Signal
C3 DK BLU 1520 Power Seat Front Vertical Down Switch Signal
C4 LT BLU 1521 Power Seat Rear Vertical Down Switch Signal
C5 TAN 1522 Power Seat Horizontal Forward Switch Signal
C6 LT GRN 1523 Power Seat Horizontal Rearward Switch Signal
C7 LT GRN 276 Driver Seat Recline Motor Forward Control
C8 LT BLU 277 Driver Seat Recline Motor Rearward Control
C9 DK BLU 1064 Driver Seat Lumbar Rearward Switch Signal
C10 YEL 1065 Driver Seat Lumbar Forward Switch Signal
C11 WHT 1066 Driver Seat Lumbar Up Switch Signal
C12 YEL/BLK 1067 Driver Seat Lumbar Down Switch Signal
C13 GRY 788 5 Volt Reference
C14 BRN/WHT 557 Front Vertical Seat Motor Position Sensor Signal
C15 BLK 782 Memory Seat/Mirror Sensor Low Reference
C16 DK GRN 569 Horizontal Seat Motor Position Sensor Signal
D1 TAN 568 Rear Vertical Seat Motor Position Sensor Signal
D2 WHT/BLK 570 Driver Seat Recline Motor Position Sensor Signal
D3 YEL 1063 Driver Seat Lumbar Horizontal Position Sensor Signal
D4 BLK 1062 Driver Seat Lumbar Vertical Position Sensor Signal
D5-D10 - - Not Used
D11 ORN 2840 Battery Positive Voltage
D12-D13 - - Not Used
D14 PPL 1807 Class 2 Serial Data
D15 PPL 1807 Class 2 Serial Data
D16 - - Not Used
Memory Seat Module C3 (w/A45)

GM258247Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129432
  • 16-Way F Metri-Pack 280 Series (GRY)
Pin Wire Color Circuit No. Function
A DK GRN 286 Driver Seat Front Vertical Motor Up Control
B DK BLU 611 Driver Seat Lumbar Motor Forward Control
C TAN 768 Driver Seat Lumbar Motor Up Control
D-E - - Not Used
F LT GRN 276 Driver Seat Recline Motor Forward Control
G LT BLU 277 Driver Seat Recline Motor Rearward Control
H-J - - Not Used
K PPL 767 Driver Seat Lumbar Motor Down Control
L PNK 610 Driver Seat Lumbar Motor Rearward Control
M DK BLU 287 Driver Seat Front Vertical Motor Down Control
N TAN 285 Driver Seat Horizontal Motor Forward Control
P YEL 282 Driver Seat Rear Vertical Motor Up Control
R LT BLU 283 Driver Seat Rear Vertical Motor Down Control
S LT GRN 284 Driver Seat Horizontal Motor Rearward Control
Seat Adjuster Switch - Driver (w/AG1) w/o A80 and A45

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064998
  • 8-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A DK GRN 286 Driver Seat Front Vertical Motor Up Control
B DK BLU 287 Driver Seat Front Vertical Motor Down Control
C YEL 282 Driver Seat Rear Vertical Motor Up Control
D LT BLU 283 Driver Seat Rear Vertical Motor Down Control
E BLK 650 Ground
F LT GRN 284 Driver Seat Horizontal Motor Rearward Control
G TAN 285 Driver Seat Horizontal Motor Forward Control
H ORN 3740 Battery Positive Voltage
Seat Adjuster Switch - Driver (w/AG1 and A80)

GM476149Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326110
  • 12-Way F 280 GT Series (BLK)
Pin Wire Color Circuit No. Function
A LT BLU 277 Driver Seat Recline Motor Rearward Control
B LT GRN 276 Driver Seat Recline Motor Forward Control
C BLK 650 Ground
D LT GRN 284 Driver Seat Horizontal Motor Rearward Control
E TAN 285 Driver Seat Horizontal Motor Forward Control
F ORN 3740 Battery Positive Voltage
G-H - - Not Used
J LT BLU 283 Driver Seat Rear Vertical Motor Down Control
K YEL 282 Driver Seat Rear Vertical Motor Up Control
L DK BLU 287 Driver Seat Front Vertical Motor Down Control
M DK GRN 286 Driver Seat Front Vertical Motor Up Control
Seat Adjuster Switch - Driver (w/AG1, A80 and A45)

GM476149Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326110
  • 12-Way F 280 GT Series (BLK)
Pin Wire Color Circuit No. Function
A LT BLU 277 Driver Seat Recline Motor Rearward Control
B LT GRN 276 Driver Seat Recline Motor Forward Control
C - - Not Used
D LT GRN 1523 Power Seat Horizontal Rearward Switch Signal
E TAN 1522 Power Seat Horizontal Forward Switch Signal
F ORN 2840 Battery Positive Voltage
G-H - - Not Used
J LT BLU 1521 Power Seat Rear Vertical Down Switch Signal
K YEL 1519 Power Seat Rear Vertical Up Switch Signal
L DK BLU 1520 Power Seat Front Vertical Down Switch Signal
M DK GRN 1518 Power Seat Front Vertical Up Switch Signal
Seat Adjuster Switch - Front Passenger (w/AG2)

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064998
  • 8-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A DK BLU 298 Passenger Seat Front Vertical Motor Down Control
B DK GRN 297 Passenger Seat Front Vertical Motor Up Control
C LT BLU 289 Passenger Seat Rear Vertical Motor Down Control
D YEL 288 Passenger Seat Rear Vertical Motor Up Control
E BLK 650 Ground
F LT GRN 290 Passenger Seat Horizontal Motor Rearward Control
G TAN 296 Passenger Seat Horizontal Motor Forward Control
H ORN 3740 Battery Positive Voltage
Seat Adjuster Switch - Front Passenger (w/AG2, A81)

GM476149Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326110
  • 12-Way F 280 GT Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 3740 Battery Positive Voltage
B LT GRN 290 Passenger Seat Horizontal Motor Rearward Control
C TAN 296 Passenger Seat Horizontal Motor Forward Control
D BLK 650 Ground
E DK BLU 77 Passenger Seat Recline Motor Rearward
F DK GRN 76 Passenger Seat Recline Motor Forward
G DK BLU 298 Passenger Seat Front Vertical Motor Down Control
H DK GRN 297 Passenger Seat Front Vertical Motor Up Control
J LT BLU 289 Passenger Seat Rear Vertical Motor Down Control
K YEL 288 Passenger Seat Rear Vertical Motor Up Control
L-M - - Not Used
Seat Front Vertical Motor - Driver

GM130707Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020556
  • 2-Way F Metri-Pack 480 Series (BLK)
Pin Wire Color Circuit No. Function
A DK GRN 286 Driver Seat Front Vertical Up Control
B DK BLU 287 Driver Seat Front Vertical Down Control
Seat Front Vertical Motor - Front Passenger

GM130707Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020556
  • 2-Way F Metri-Pack 480 Series (BLK)
Pin Wire Color Circuit No. Function
A DK GRN 297 Passenger Seat Front Vertical Motor Up Control
B DK BLU 298 Passenger Seat Front Vertical Motor Down Control
Seat Front Vertical Position Sensor - Driver (w/A45)

GM130702Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059584
  • 4-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A - - Not Used
B BLK 782 Memory Seat Low Reference
C BRN/WHT 557 Front Vertical Seat Motor Position Sensor Signal
D GRY 788 5 Volt Reference
Seat Horizontal Motor - Driver

GM130706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052110
  • 2-Way F Metri-Pack 480 Series (NAT)
Pin Wire Color Circuit No. Function
A TAN 285 Driver Seat Horizontal Forward Control
B LT GRN 284 Driver Seat Horizontal Rearward Control
Seat Horizontal Motor - Front Passenger

GM130706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052110
  • 2-Way F Metri-Pack 480 Series (NAT)
Pin Wire Color Circuit No. Function
A TAN 296 Passenger Seat Horizontal Motor Forward Control
B LT GRN 290 Passenger Seat Horizontal Motor Rearward Control
Seat Horizontal Position Sensor - Driver (w/A45)

GM130704Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059583
  • 4-Way F Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function
A BLK 782 Memory Seat Low Reference
B - - Not Used
C DK GRN 569 Horizontal Seat Motor Position Sensor Signal
D GRY 788 5 Volt Reference
Seat Lumbar Horizontal Motor - Driver

GM130707Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020556
  • 2-Way F Metri-Pack 480 Series (BLK)
Pin Wire Color Circuit No. Function
A DK BLU/WHT 611 Driver Seat Lumbar Motor Forward Control
B PNK/BLK 610 Driver Seat Lumbar Motor Rearward Control
Seat Lumbar Horizontal Motor - Front Passenger (A81)

GM130707Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020556
  • 2-Way F Metri-Pack 480 Series (BLK)
Pin Wire Color Circuit No. Function
A DK BLU/WHT 211 Passenger Seat Lumbar Motor Forward Control
B PNK/BLK 210 Passenger Seat Lumbar Motor Rearward Control
Seat Lumbar Horizontal Position Sensor - Driver (A45)

GM694206Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15976041
  • 2-Way F (WHT)
Pin Wire Color Circuit No. Function
1 LT BLU 782 Memory Seat Sensor Low Reference
2 - - Not Used
3 RED 1063 Driver Seat Lumbar Horizontal Position Sensor Signal
4 BRN 788 5 Volt Reference
Seat Lumbar Switch - Driver (w/A45 and AL9)

GM73146Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052854
  • 7-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A DK BLU 1064 Driver Seat Lumbar Rearward Switch Signal
B WHT 1066 Driver Seat Lumbar Up Switch Signal
C YEL/BLK 1067 Driver Seat Lumbar Down Switch Signal
D-E - - Not Used
F YEL 1065 Driver Seat Lumbar Forward Switch Signal
G ORN 2840 Battery Positive Voltage
Seat Lumbar Switch-Driver (w/o A45)-(W/AL9)

GM73146Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052854
  • 7-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A PNK 610 Driver Seat Lumbar Motor Rearward Switch Signal
B TAN 768 Driver Seat Lumbar Up Switch Signal
C PPL 767 Driver Seat Lumbar Down Switch Signal
D - - Not Used
E BLK 650 Ground
F DK BLU 611 Driver Seat Lumbar Motor Forward Switch Signal
G ORN 3740 Battery Positive Voltage
Seat Lumbar Switch - Front Passenger (w/A81)

GM73146Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052854
  • 7-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A WHT 210 Passenger Seat Lumbar Motor Rearward Control
B ORN 792 Passenger Seat Lumbar Motor Down Control
C PNK 793 Passenger Seat Lumbar Motor Up Control
D - - Not Used
E BLK 650 Ground
F DK BLU 211 Passenger Seat Lumbar Motor Forward Control
G ORN 3740 Battery Positive Voltage
Seat Lumbar Vertical Motor - Driver

GM130707Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020556
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A TAN/WHT 768 Driver Seat Lumbar Motor Up Control
B PPL/WHT 767 Driver Seat Lumbar Motor Down Control
Seat Lumbar Vertical Motor - Front Passenger

GM130707Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020556
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A TAN/WHT 793 Passenger Seat Lumbar Motor Up Control
B PPL/WHT 792 Passenger Seat Lumbar Motor Down Control
Seat Lumbar Vertical Position Sensor - Driver (A45)

GM694206Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15976041
  • 2-Way F (WHT)
Pin Wire Color Circuit No. Function
1 BRN 788 5 Volt Reference
2 - - Not Used
3 ORN 1062 Driver Seat Lumbar Vertical Position Sensor Signal
4 LT BLU 782 Memory Seat Sensor Low Reference
Seat Rear Vertical Motor - Driver

GM130709Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052109
  • 2-Way F Metri-Pack 480 Series (BLU)
Pin Wire Color Circuit No. Function
A YEL 282 Driver Seat Rear Vertical Motor Up Control
B LT BLU 283 Driver Seat Rear Vertical Motor Down Control
Seat Rear Vertical Motor - Front Passenger

GM130709Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052109
  • 2-Way F Metri-Pack 480 Series (BLU)
Pin Wire Color Circuit No. Function
A LT BLU 289 Passenger Seat Rear Vertical Motor Down Control
B YEL 288 Passenger Seat Rear Vertical Motor Up Control
Seat Rear Vertical Position Sensor - Driver (w/A45)

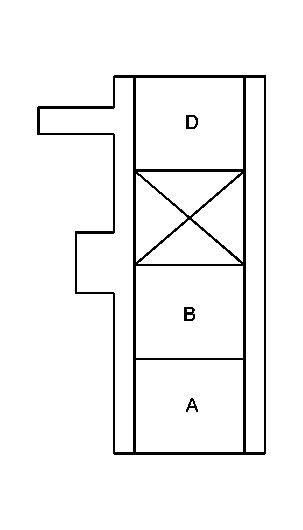

GM130701Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059582
  • 4-Way F Metri-Pack 150 Series (BLU)
Pin Wire Color Circuit No. Function
A BLK 782 Memory Seat Low Reference
B TAN 568 Rear Vertical Seat Motor Position Sensor Signal
C - - Not Used
D GRY 788 5 Volt Reference
Seat Recline Motor - Driver

GM153645Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129081
  • 2-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A LT GRN 276 Driver Seat Recline Motor Forward Control
B LT BLU 277 Driver Seat Recline Motor Rearward Control
Seat Recline Motor - Front Passenger

GM153645Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129081
  • 2-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A DK BLU 77 Passenger Seat Recline Motor Rearward
B DK GRN 76 Passenger Seat Recline Motor Forward
Seat Recline Position Sensor - Driver (w/A45)

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A GRY 788 5 Volt Reference
B WHT/BLK 570 Driver Seat Recline Motor Position Sensor Signal
C BLK 782 Memory Seat Low Reference
scientia non olet · About LEMON Manuals
