Power Seat Systems Component Views

Fig 1: Left Front Seat Back

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Lumbar Vertical Position Sensor - Driver
2	Seat Lumbar Vertical Motor - Driver
3	Seat Recline Motor - Driver
4	S331
5	S330
6	Seat Lumbar Horizontal Motor - Driver
7	Lumbar Horizontal Position Sensor

Fig 2: LH Front Seat Horizontal & Vertical Motors & Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horizontal Position Sensor
2	Rear Vertical Position Sensor
3	Rear Vertical Motor
4	Front Vertical Motor
5	Horizontal Motor
6	Seat Lumbar Horizontal Position Sensor - Driver

Fig 3: Left Lumbar & Seat Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Adjuster Switch - Driver
2	Seat Lumbar Switch - Driver

Fig 4: Left Seat Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C302
2	Inflatable Restraint Connector

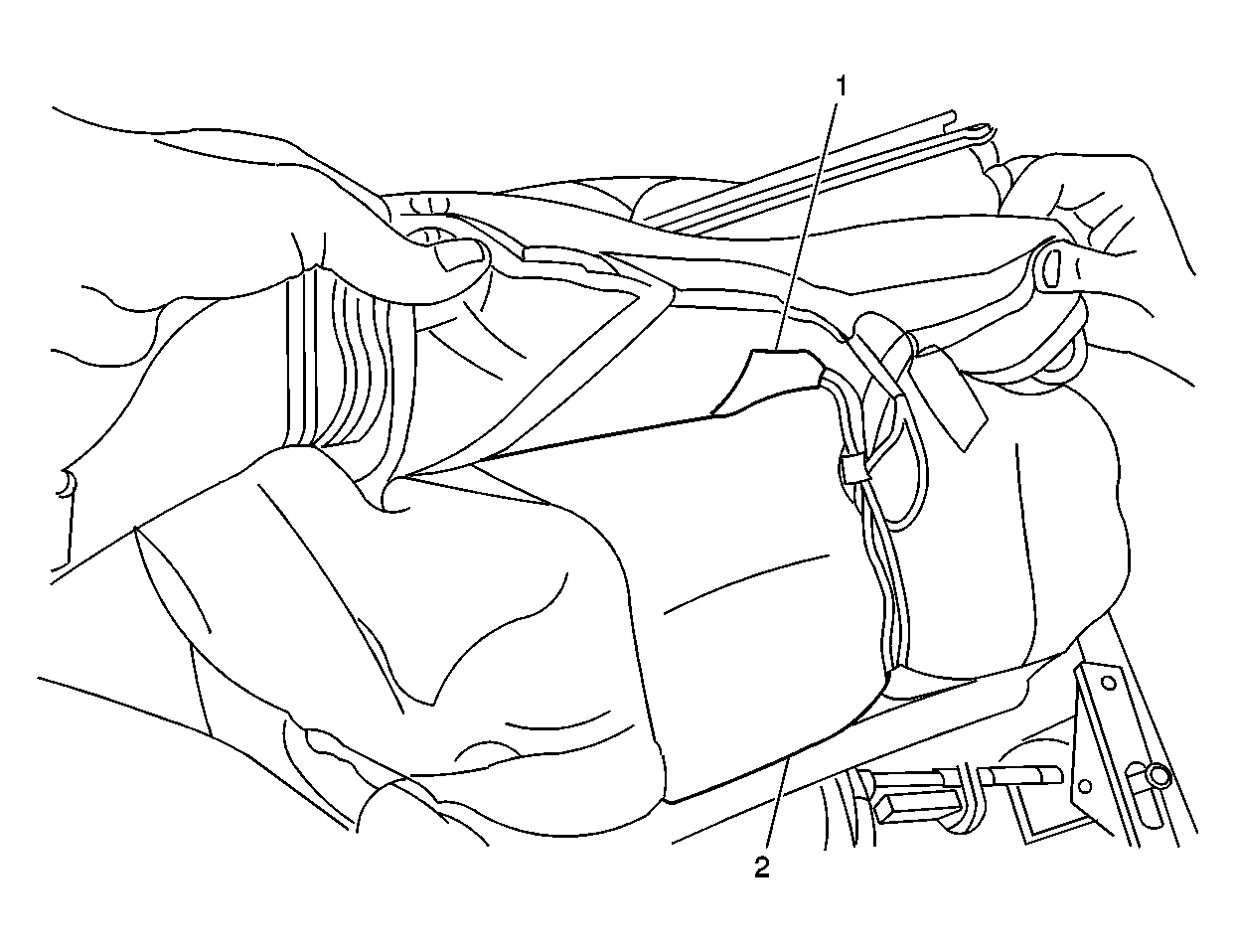

Fig 5: Driver Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Cushion Element - Driver, Front Passenger Similar, Heated Seat Back Element Similar
2	Heated Seat Module - Driver, Hidden Front Passenger Similar

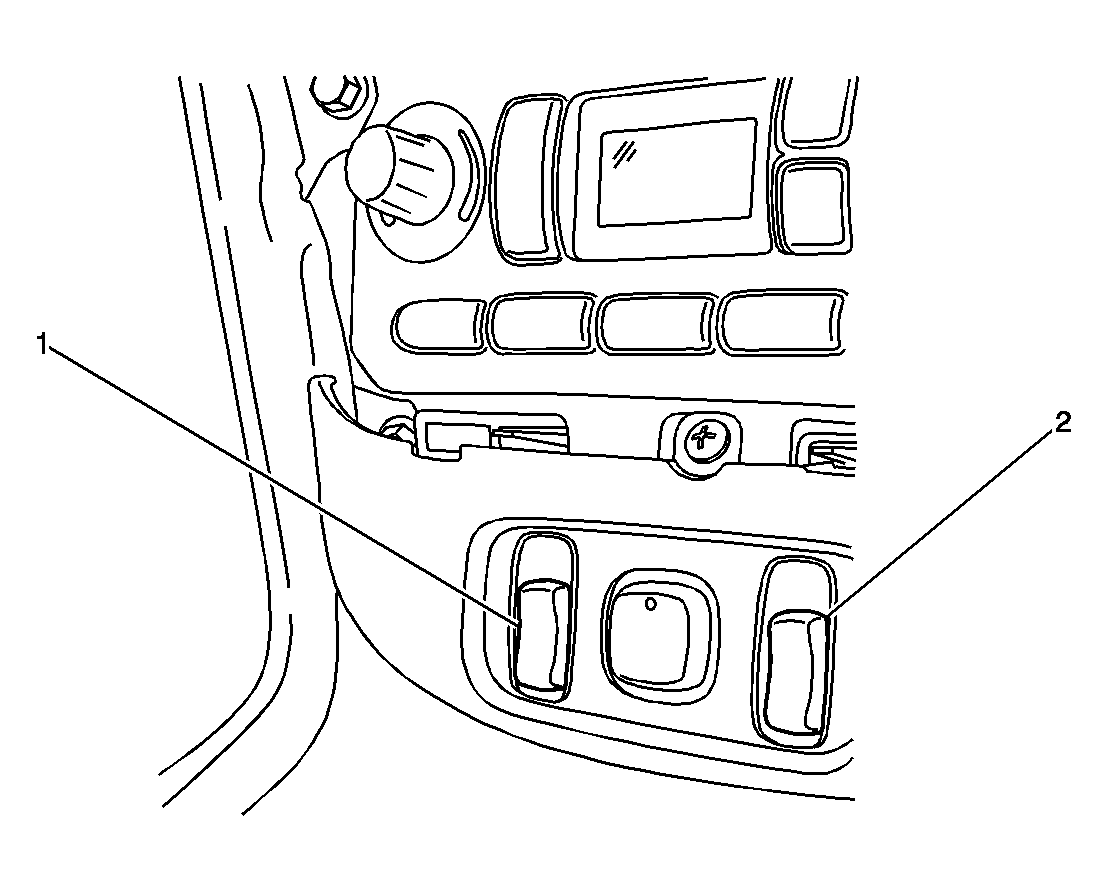

Fig 6: Heated Seat Switches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Switch - Driver
2	Heated Seat Switch - Front Passenger
