Wiper/Washer System Component Views

Fig 1: Locating Windshield Wiper Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor

Fig 2: Locating Windshield Washer At Lower Right Front Wheel Well

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Level Switch
2	Windshield Washer Container
3	Windshield Washer Fluid Pump

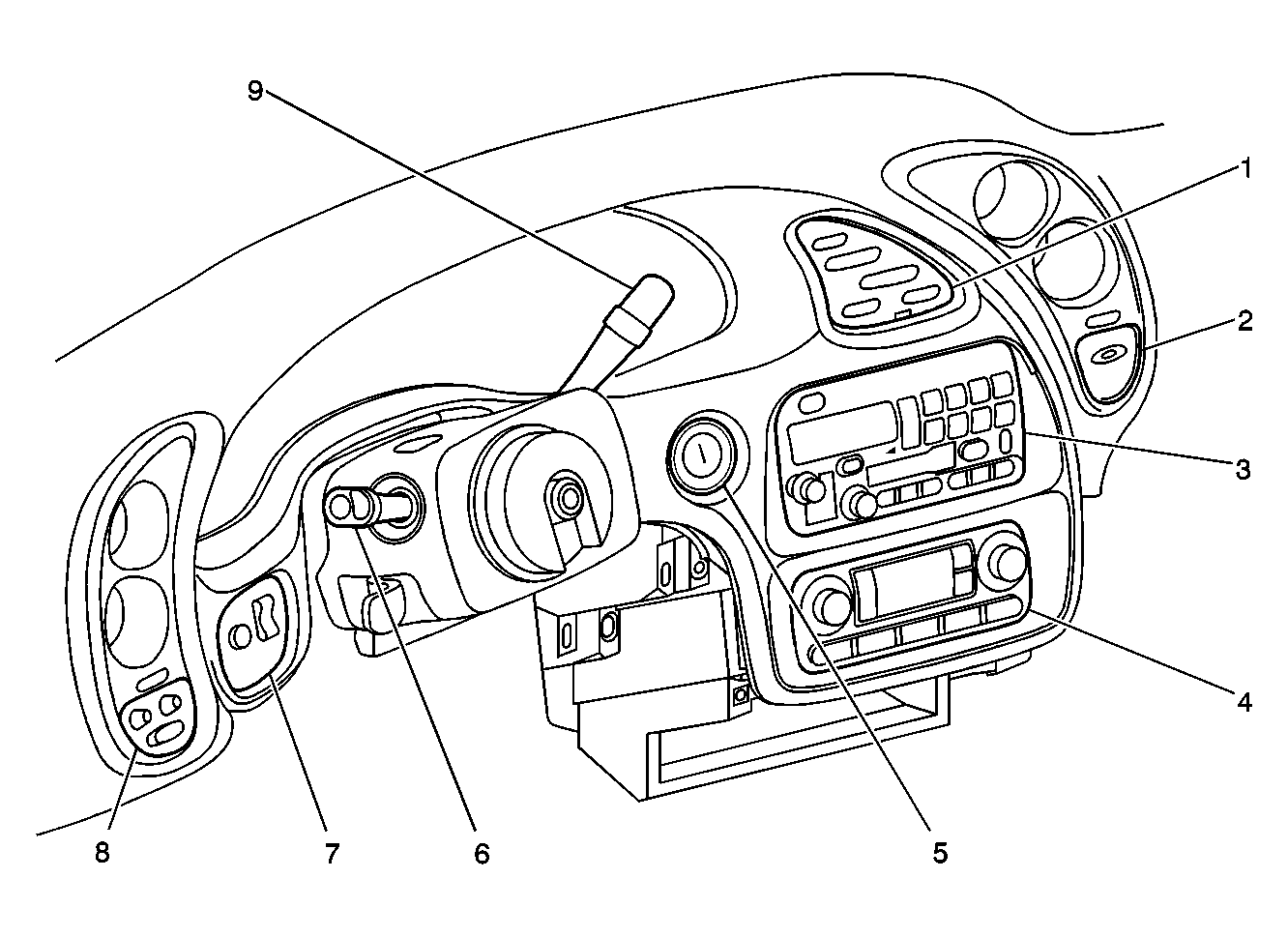

Fig 3: Locating Wiper/Washer Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Drivers Information Center (DIC)
2	Hazard Flasher Switch (Turn Signal/Hazard Flasher Module)
3	Radio
4	Heater A/C Control
5	Ignition Key Lamp
6	Turn Signal Multifunction Lever
7	Heads Up Display (HUD) Dimmer Switch
8	Fog Lamp Switch
9	Wiper/Washer Switch
