Entertainment Component Views

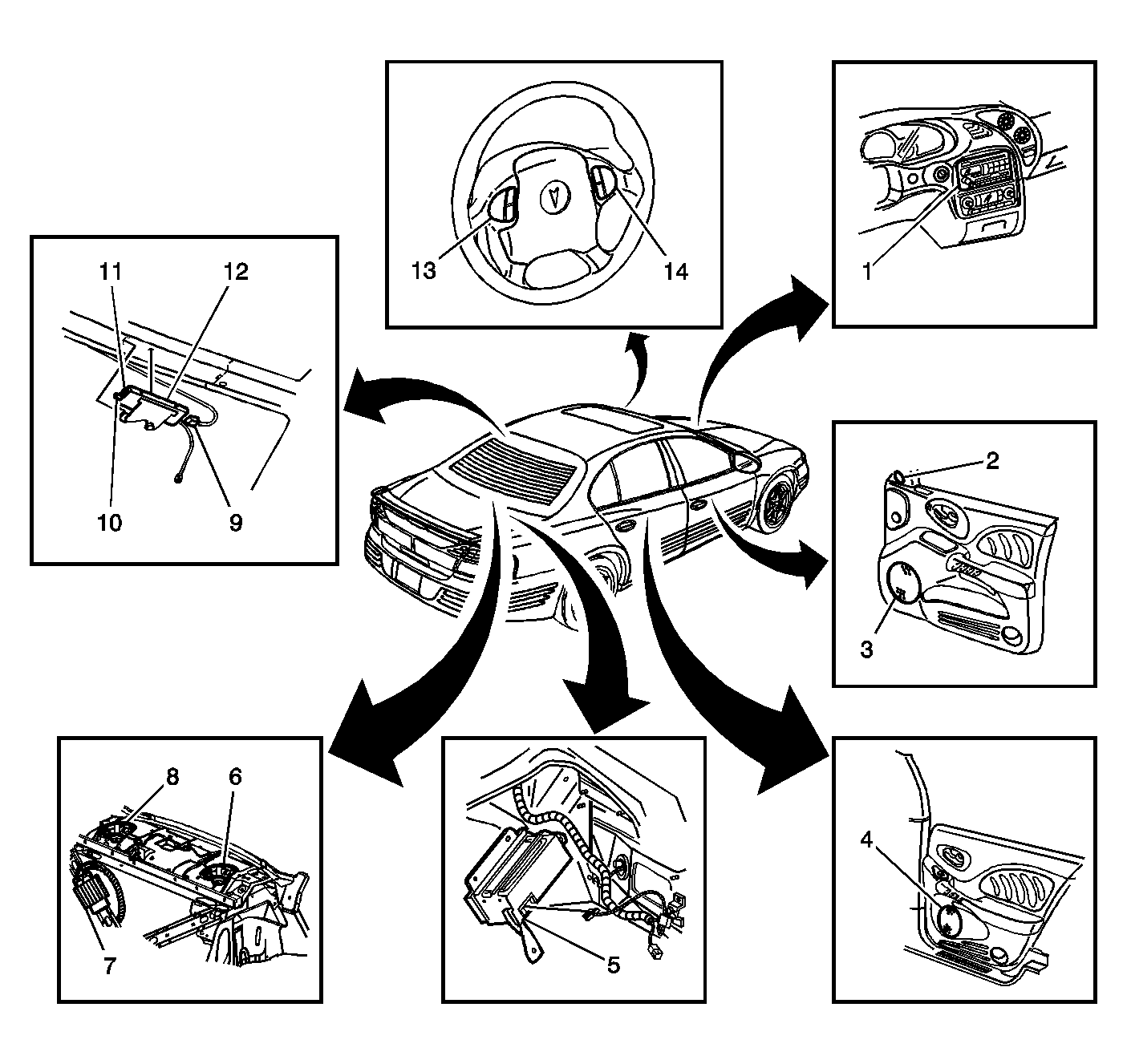

| Callout | Component Name |
|---|---|
| 1 | Radio |
| 2 | Speaker - RF Tweeter |
| 3 | Speaker - RF Door |
| 4 | Speaker - RR Door |
| 5 | Remote Playback Device - CD Changer |
| 6 | Speaker - RR Subwoofer |
| 7 | Audio Amplifier |
| 8 | Speaker - LR Subwoofer |
| 9 | Radio Antenna Module Connector |
| 10 | Radio Signal Coax Cable |
| 11 | Front Windshield FM Antenna Coax Cable |
| 12 | Radio Antenna Module |
| 13 | Steering Wheel Control Switch - Left |
| 14 | Steering Wheel Control Switch - Right |

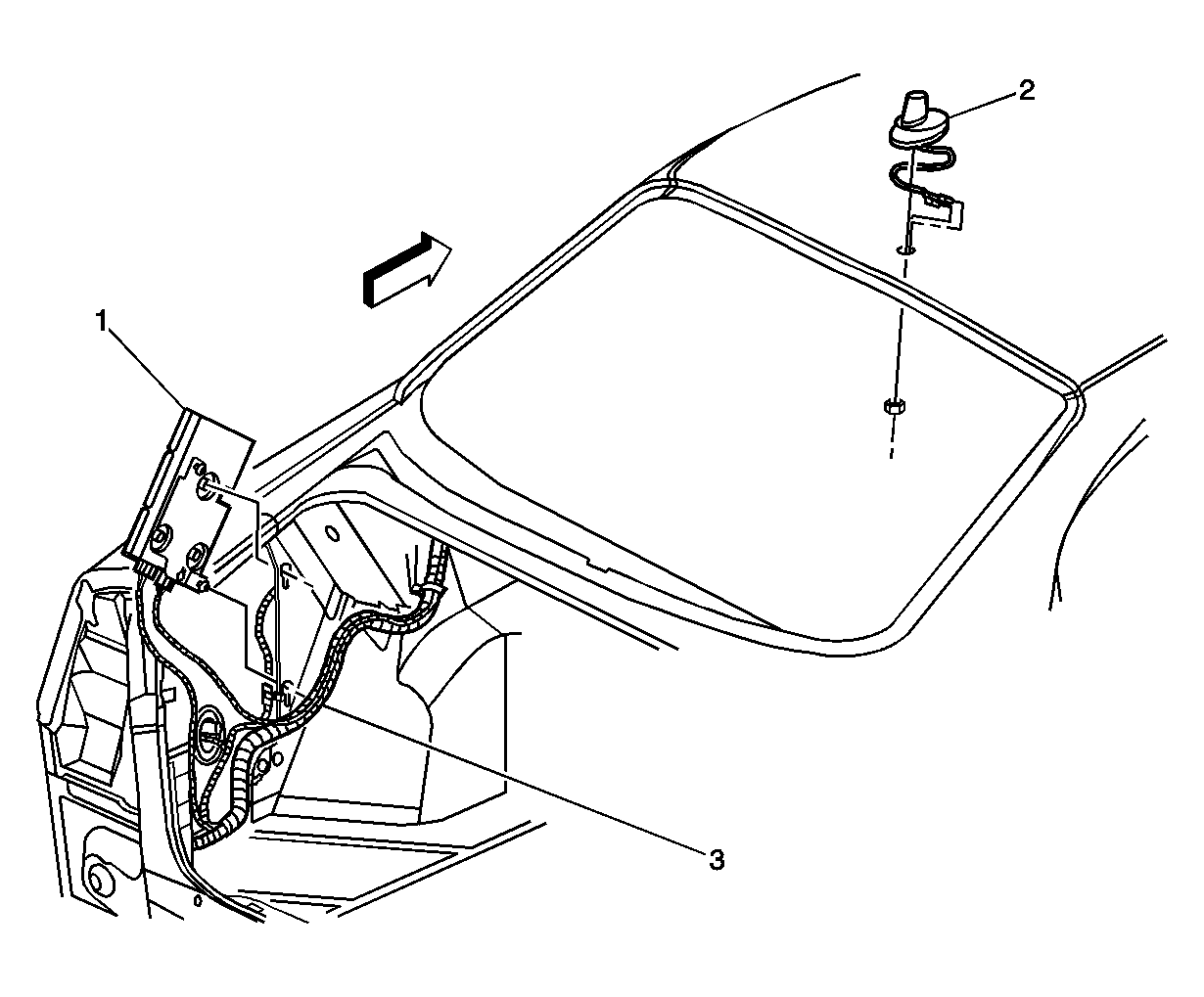

| Callout | Component Name |
|---|---|
| 1 | Digital Radio Receiver |
| 2 | Digital Radio Antenna |
| 3 | S402, S403, S404, S405 |
