Cellular Communication Component Views
Cellular Communication Component Views

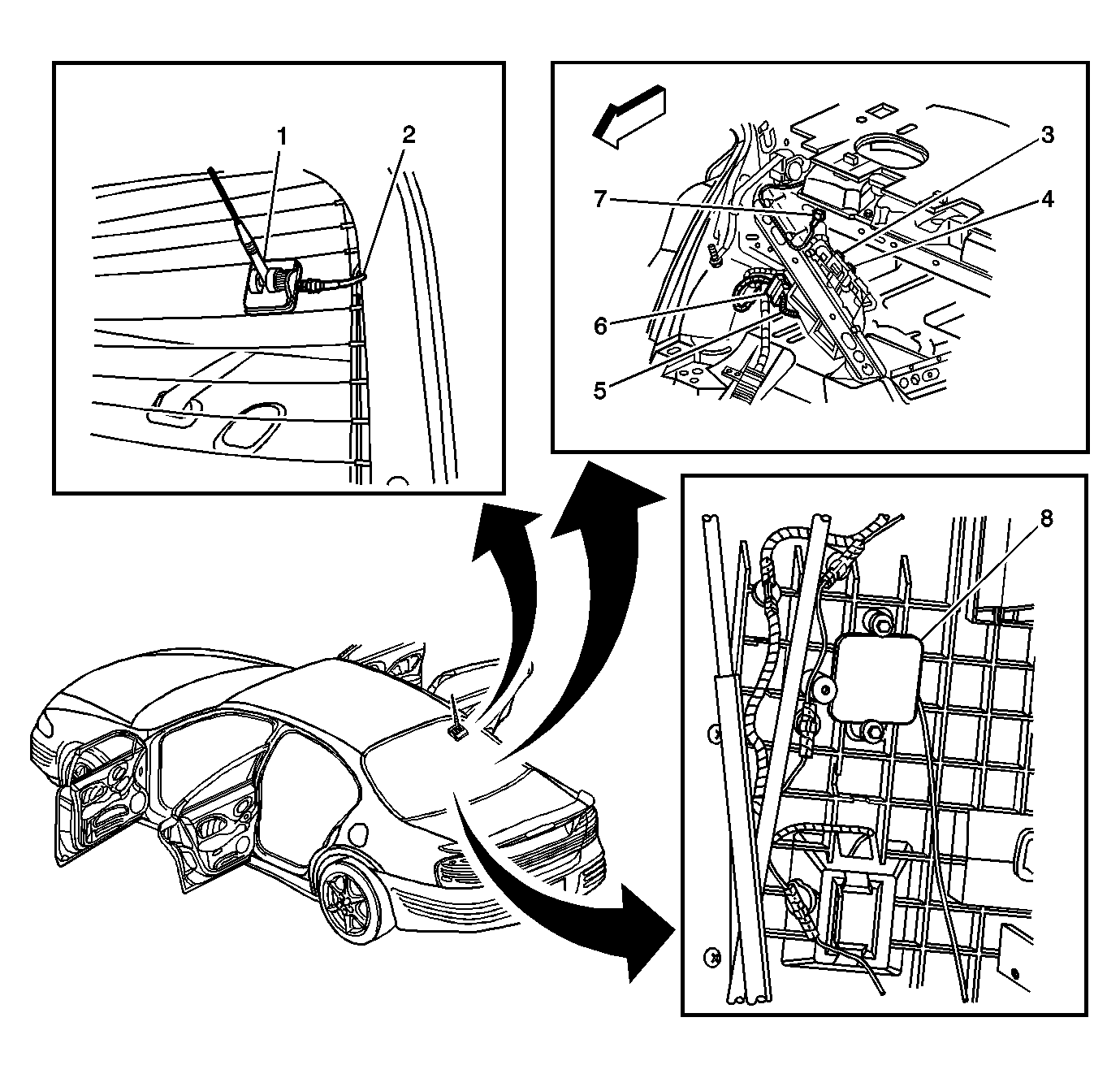

Fig 1: Cellular Communications Sub-System Component Views
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
OnStar® Cellular Antenna
2
OnStar® Cellular Antenna Cable
3
Vehicle Communication Interface Module (VCIM)
4
OnStar® GPS Antenna Lead
5
S360 and S361
6
C345 (Body Harness to OnStar® Harness)
7
OnStar® Cellular Antenna Lead
8
OnStar® GPS Antenna
