Cruise Control Component Views

Fig 1: Engine Compartment Component Views, On the Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Cruise Control Module (CCM)
3	G106
4	Inflatable Restraint Front End Sensor
5	C101
6	P100
7	C112

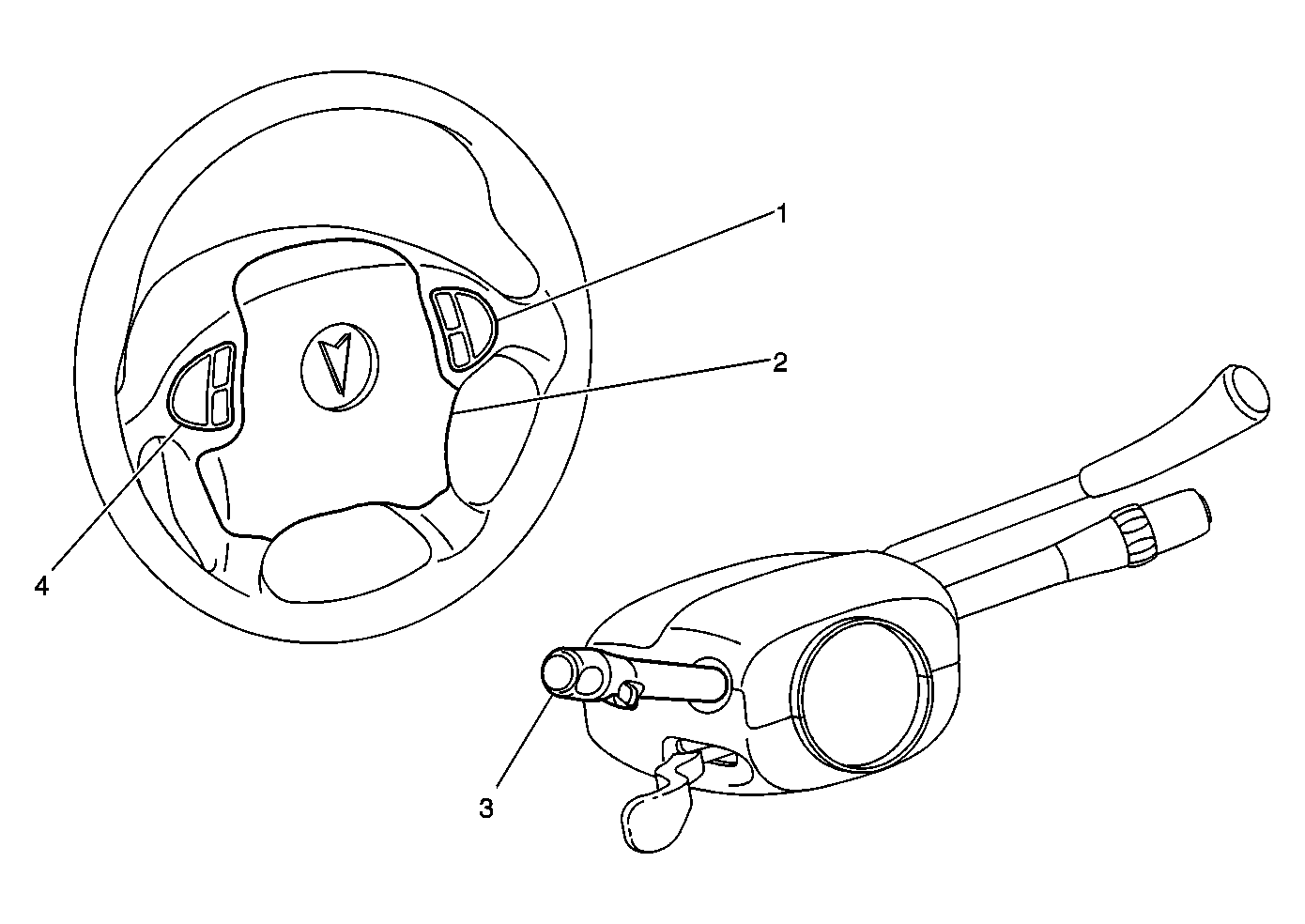

Fig 2: Passenger Compartment, Top of the Steering Column Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheels Controls - Right
2	Horn Pad/Switch
3	Turn Signal/Multifunction Switch
4	Steering Wheels Controls - Left
