Body Control System Schematics

Fig 1: DIM Power and Ground Schematic

GM885742

Courtesy of GENERAL MOTORS CORP.

Fig 2: Ignition Inputs Schematic

GM766389

Courtesy of GENERAL MOTORS CORP.

Fig 3: DIM Inputs/Outputs Schematic

GM1364666

Courtesy of GENERAL MOTORS CORP.

Fig 4: IPM Power and Ground Schematic

GM885744

Courtesy of GENERAL MOTORS CORP.

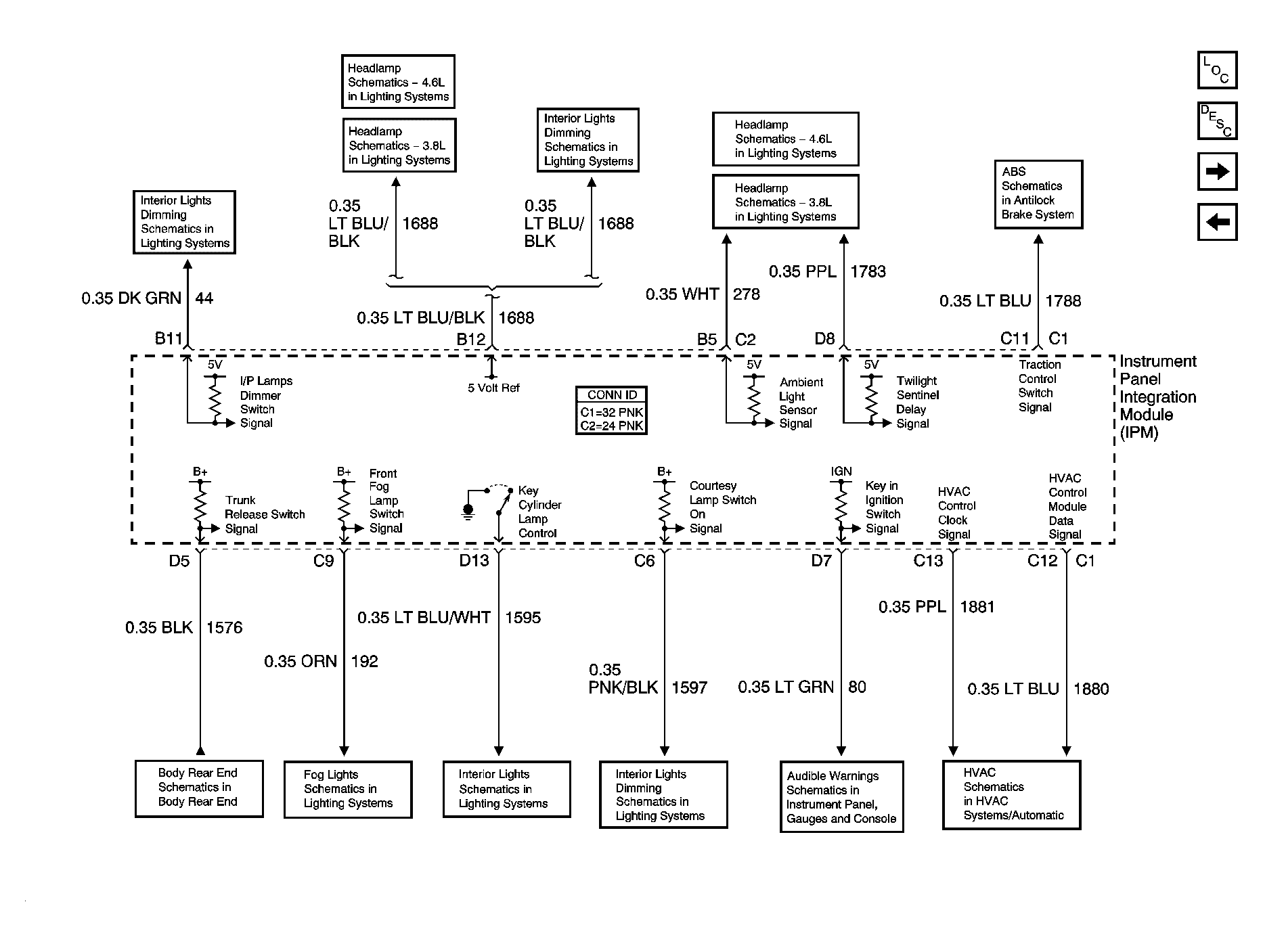

Fig 5: IPM Input/Outputs w/CJ2 Schematic - 1 of 2

GM1400431

Courtesy of GENERAL MOTORS CORP.

Fig 6: IPM Input/Outputs w/CJ2 Schematic - 2 of 2

GM664429

Courtesy of GENERAL MOTORS CORP.

Fig 7: RIM Power and Ground Schematic

GM885747

Courtesy of GENERAL MOTORS CORP.

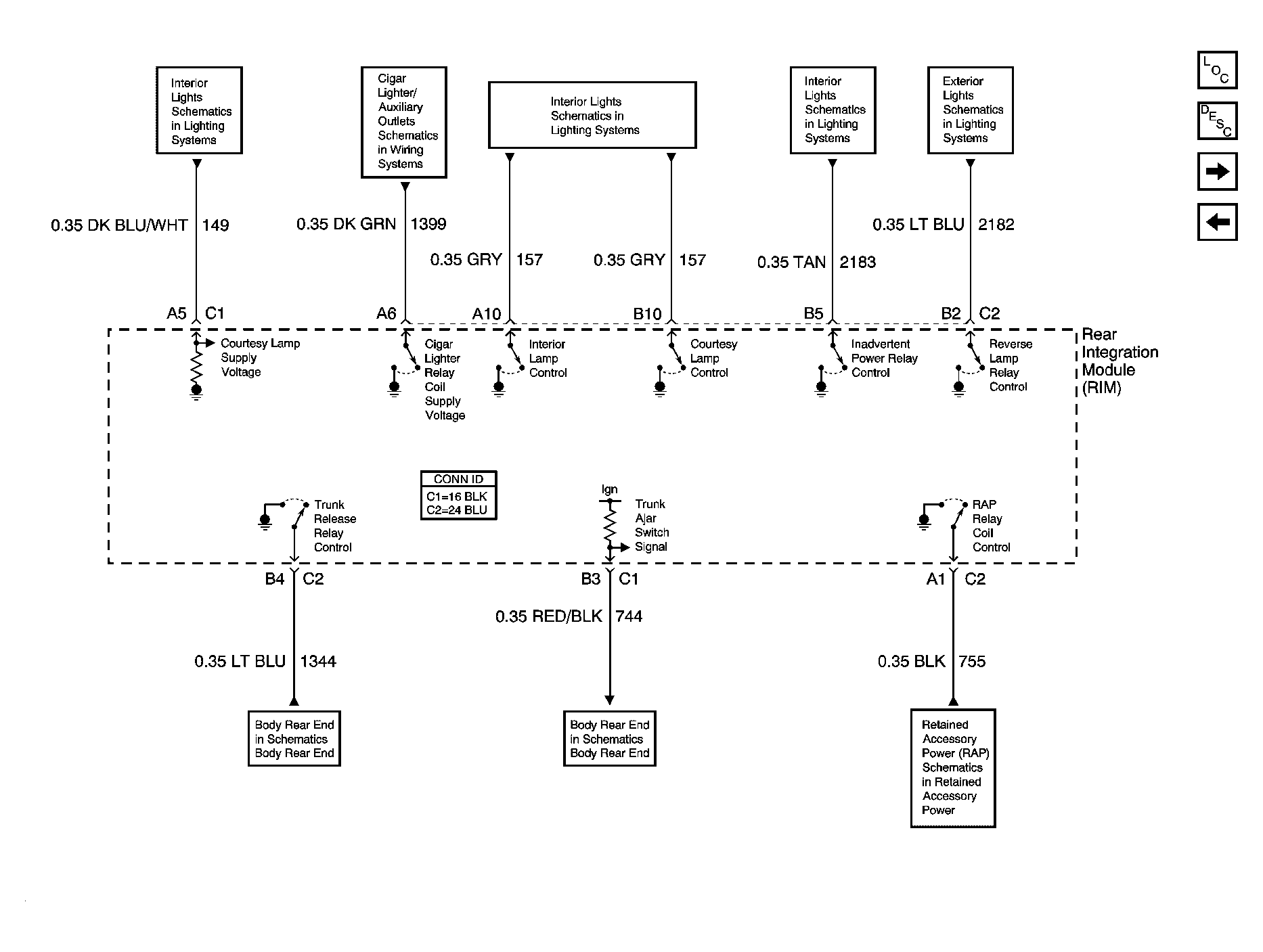

Fig 8: RIM Inputs/Outputs Schematic - 1 of 2

GM1364671

Courtesy of GENERAL MOTORS CORP.

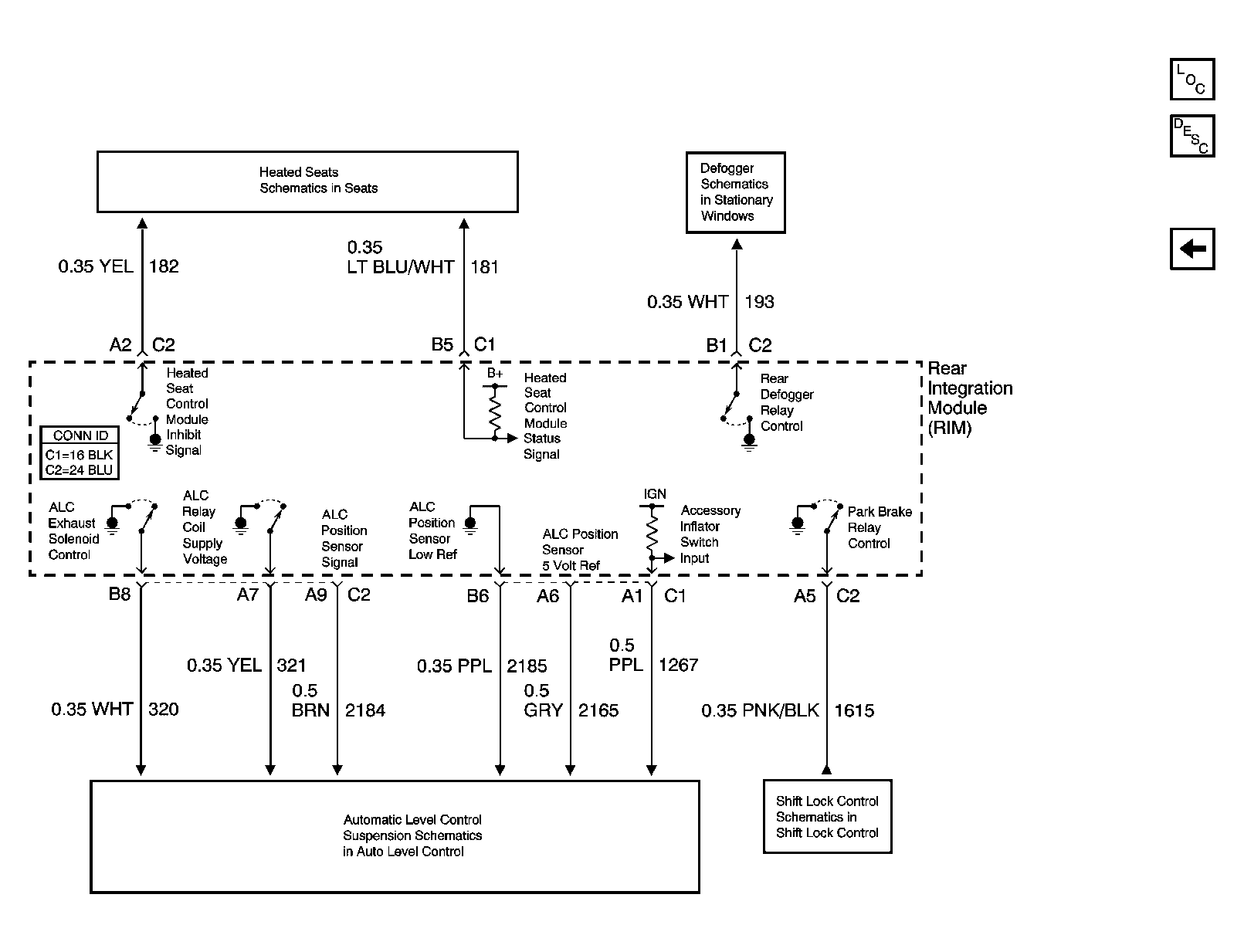

Fig 9: RIM Inputs/Outputs Schematic - 2 of 2

GM766401

Courtesy of GENERAL MOTORS CORP.
