Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the energy absorber to the impact bar.
  2. Install the center spacer and bolt.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the outer spacers and bolts.

    Tighten

    Tighten the front energy absorber bolts to 5 N.m (44 lb in).

  4. Install the fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER  .

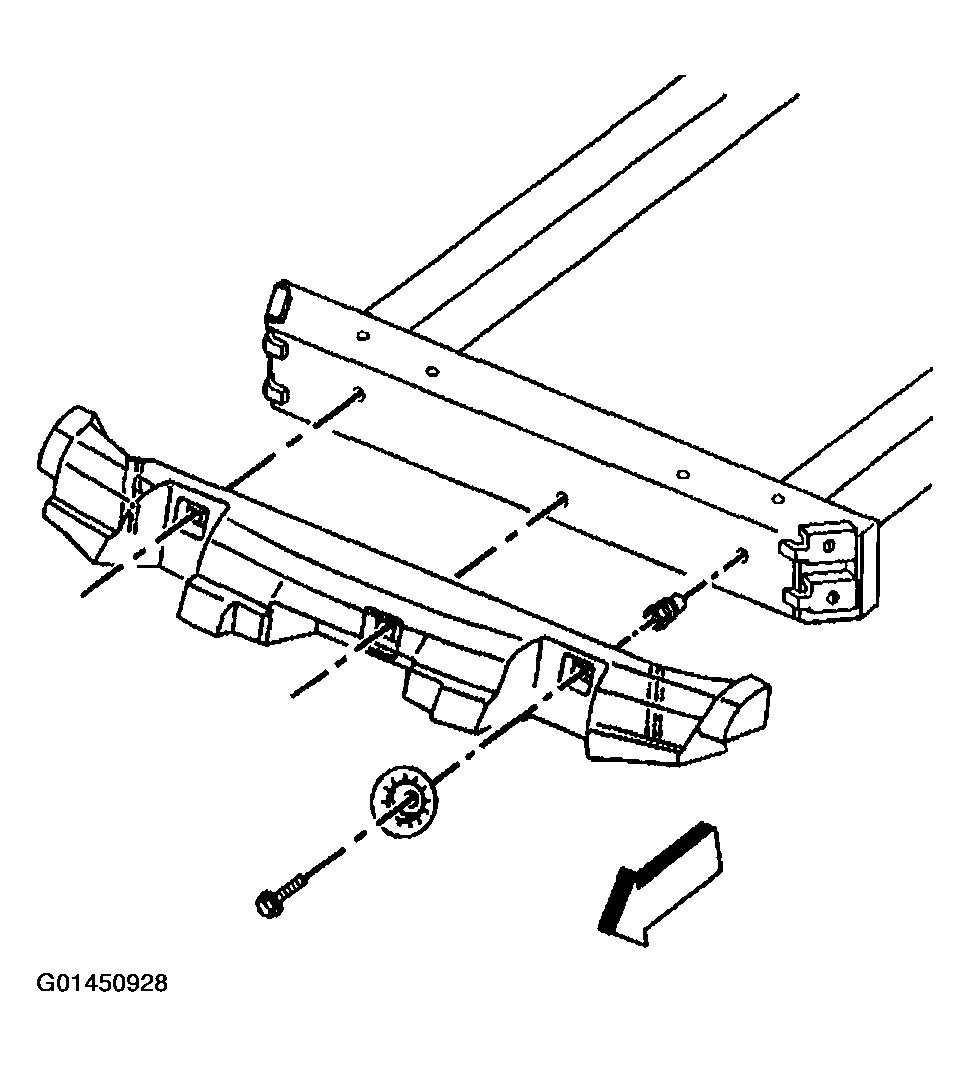

Fig 1: Front Energy Absorber
G01450928Courtesy of GENERAL MOTORS CORP.
