Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper transmission to the wiper motor module assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the wiper transmission screws.

    Tighten  Tighten the screws to 10 N.m (89 lb in).

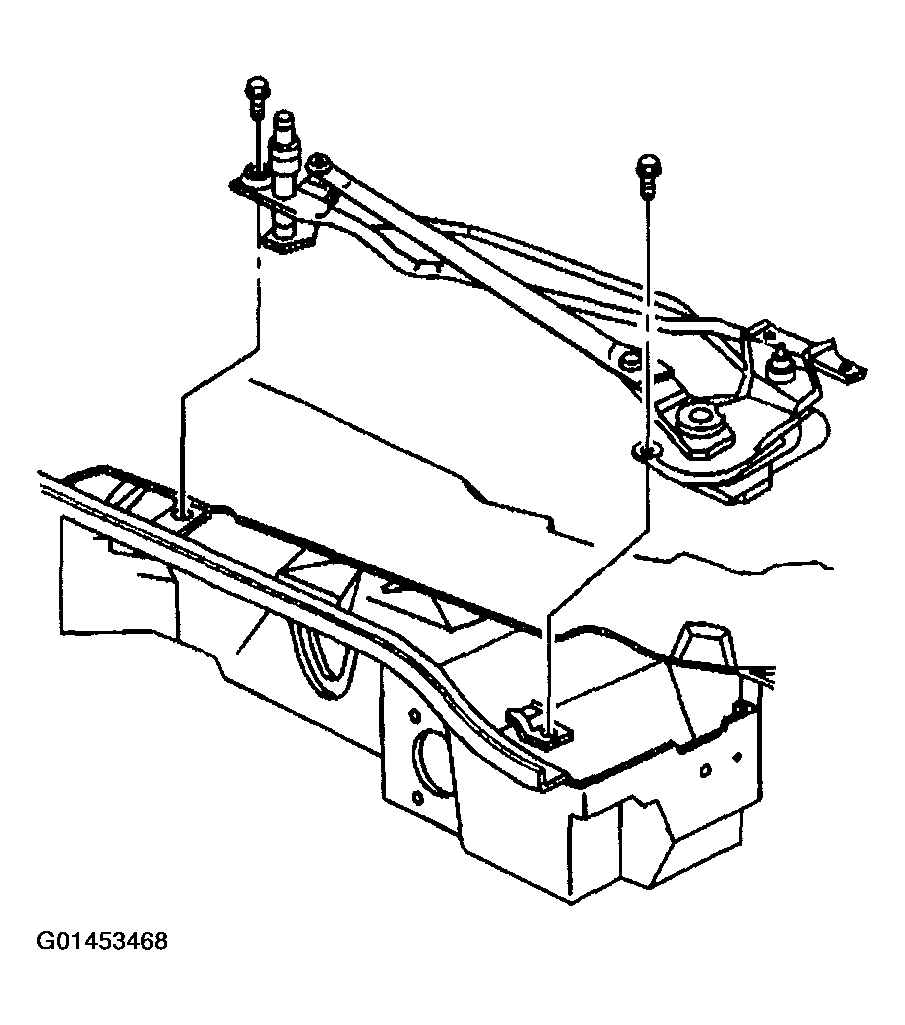

    Fig 1: Wiper Transmission Screws
    G01453468Courtesy of GENERAL MOTORS CORP.
  3. Using the J 39529, connect the wiper transmission to the wiper motor crank arm.
  4. Install the wiper drive system module. Refer to WIPER DRIVE SYSTEM MODULE REPLACEMENT  .
  5. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  6. Install the wiper arms. Refer to WIPER ARM REPLACEMENT  .

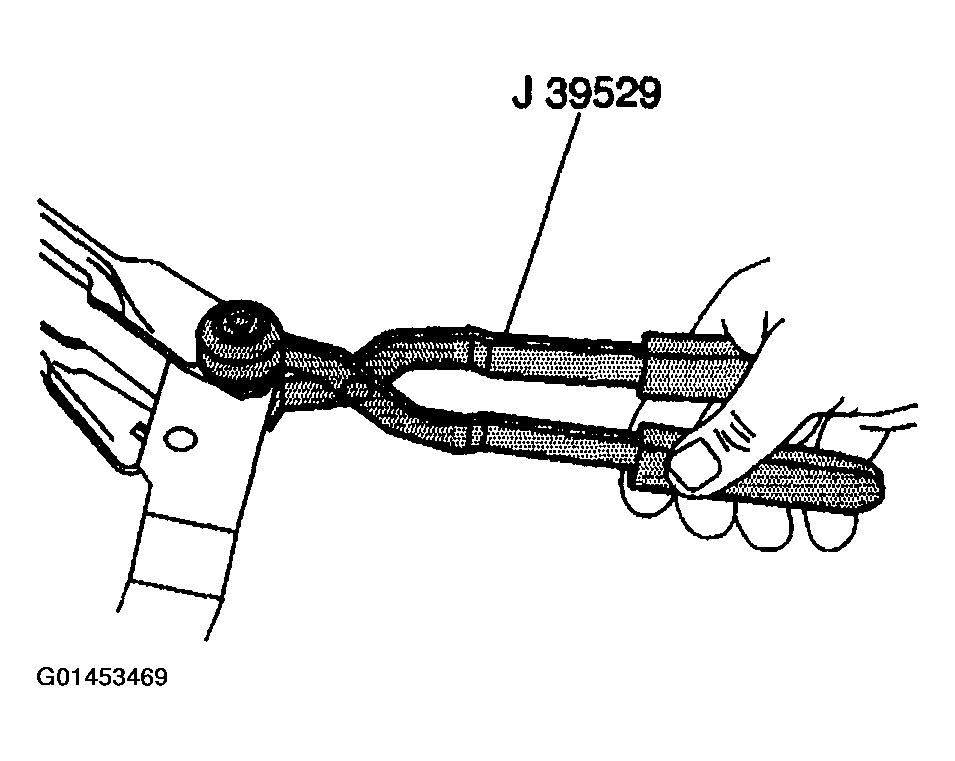

    Fig 2: Connecting Wiper Transmission To Wiper Motor Crank Arm Using Wiper Linkage Installer
    G01453469Courtesy of GENERAL MOTORS CORP.
