Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  2. Remove the wiper drive system module. Refer to WIPER DRIVE SYSTEM MODULE REPLACEMENT .
  3. Remove the wiper motor crank arm. Refer to WIPER MOTOR CRANK ARM REPLACEMENT  .
  4. Remove the wiper motor screws.
  5. Remove the wiper motor from the wiper motor module.
  6. Remove the wiper motor splash shield from the wiper motor.

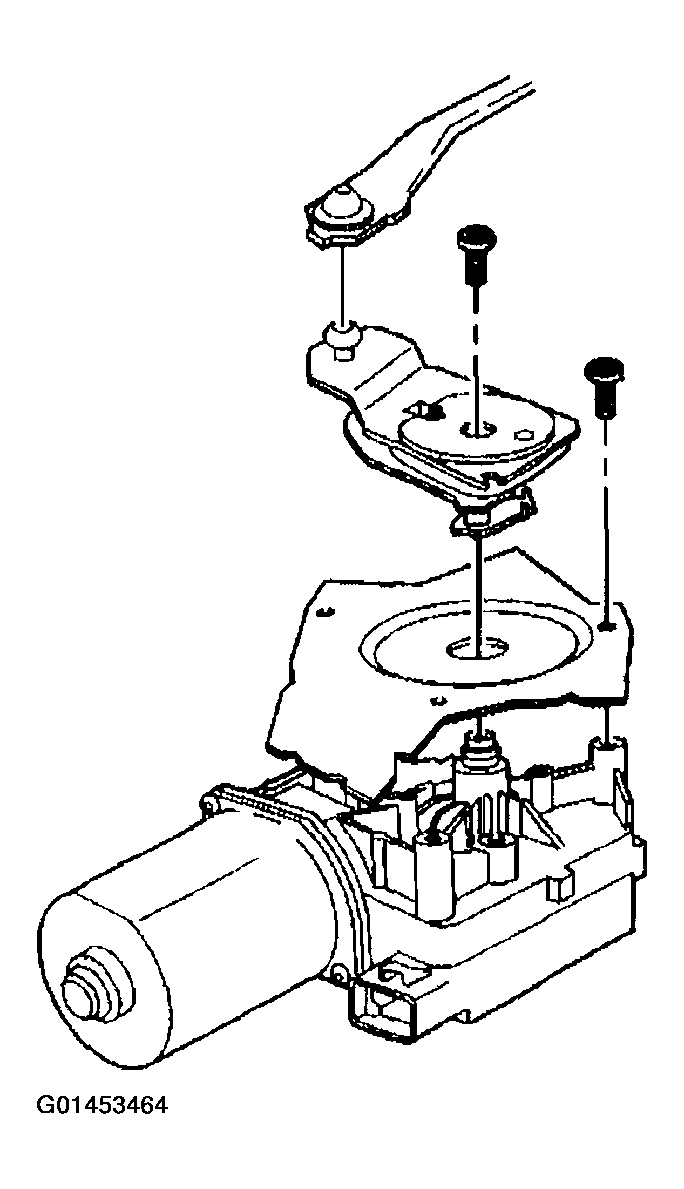

    Fig 1: Removing Wiper Motor Splash Shield From Wiper Motor
    G01453464Courtesy of GENERAL MOTORS CORP.
