Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper motor cover to the wiper motor.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the wiper motor cover screws.

    Tighten  Tighten the screws to 2 N.m (18 lb in).

  3. Install the wiper drive system module. Refer to WIPER DRIVE SYSTEM MODULE REPLACEMENT  .
  4. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  5. Inspect the wipers for proper operation.

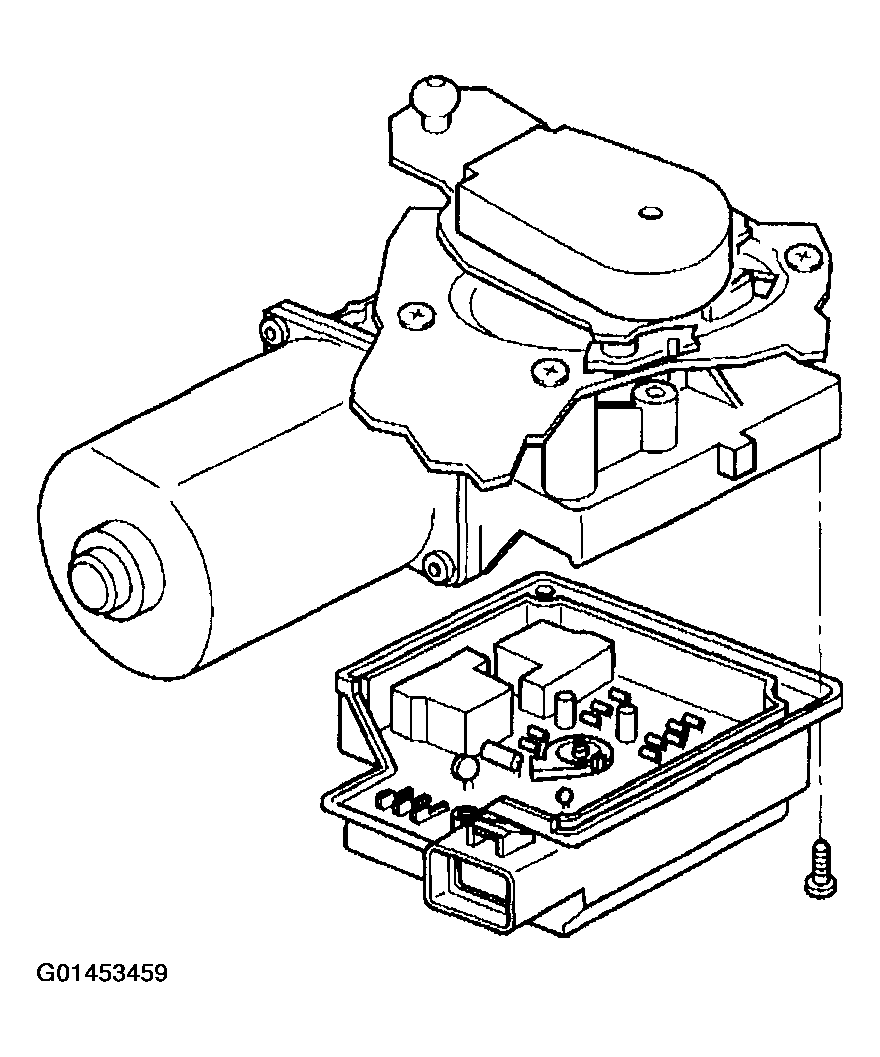

    Fig 1: Installing Wiper Motor Cover To Wiper Motor
    G01453459Courtesy of GENERAL MOTORS CORP.
