Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Drain the washer solvent from the washer solvent container.
  3. Disconnect the washer solvent container level sensor electrical connector.

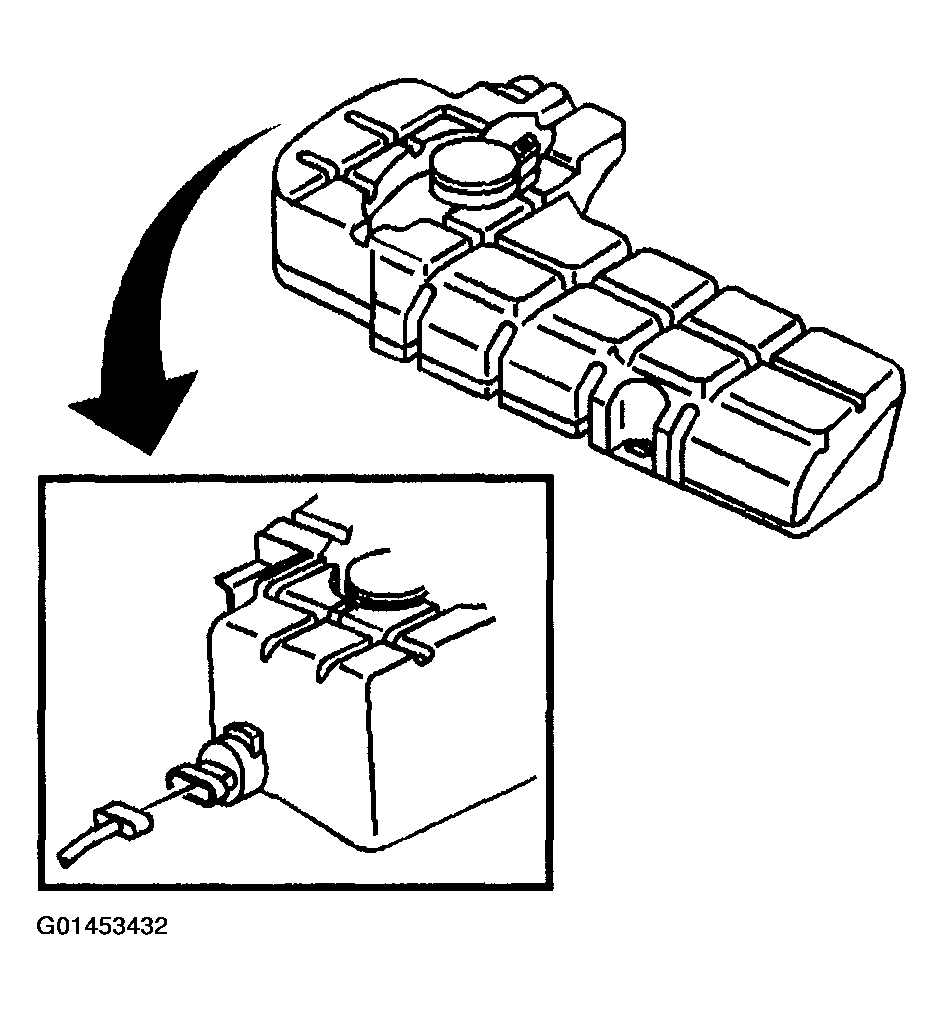

    Fig 1: Disconnecting Washer Solvent Container Level Sensor Electrical Connector
    G01453432Courtesy of GENERAL MOTORS CORP.
  4. Remove the washer solvent container nuts.
  5. Remove the heater hose retention clamp from the mounting stud.
  6. Remove the washer solvent container from the mounting studs to gain access to the washer pump.

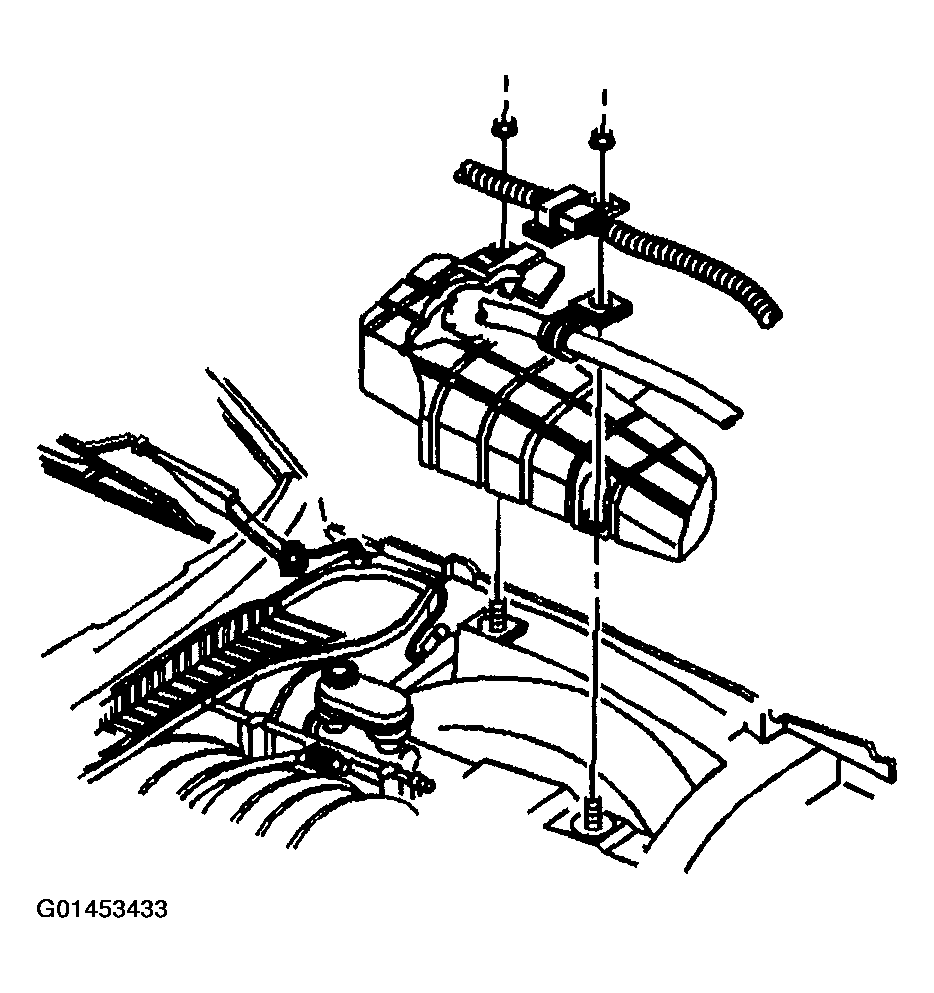

    Fig 2: Washer Solvent Container Nuts
    G01453433Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the washer pump electrical connector.
  8. Disconnect the washer pump hose.
  9. Remove the washer solvent container from the vehicle.

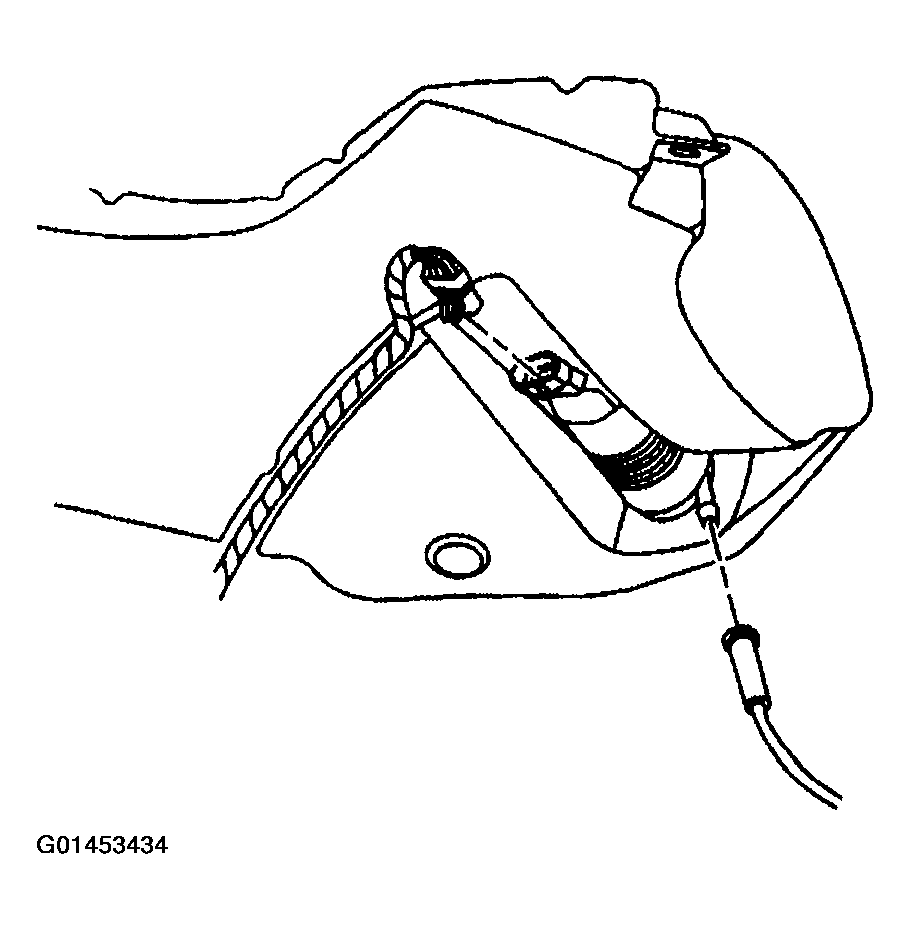

    Fig 3: Disconnecting Washer Pump Hose
    G01453434Courtesy of GENERAL MOTORS CORP.
