Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

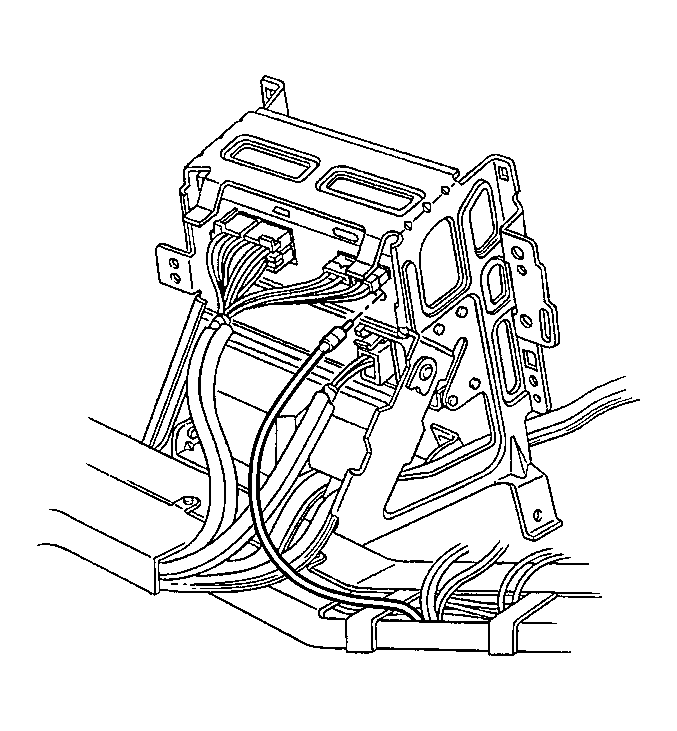

    Fig 1: Radio Control Coaxial Cable At IP Wiring Harness
    GM65101Courtesy of GENERAL MOTORS CORP.
  1. Install the radio control coaxial cable into position in the vehicle.
  2. Tape the radio control coaxial cable to the IP wiring harness along the IP lower support beam.
  3. Connect the radio control coaxial cable to the radio control.
    4. Fig 2: Radio Control To Bracket Alignment
    GM65092Courtesy of GENERAL MOTORS CORP.
  4. Align the radio control locator tab to the IP center support bracket locator hole.
  5. Install the radio control.
    6. Fig 3: Radio Control & Center Bracket
    GM65091Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the radio control retaining screws.

    Tighten:  Tighten the radio control retaining screws to 2.5 N.m (22 lb in).

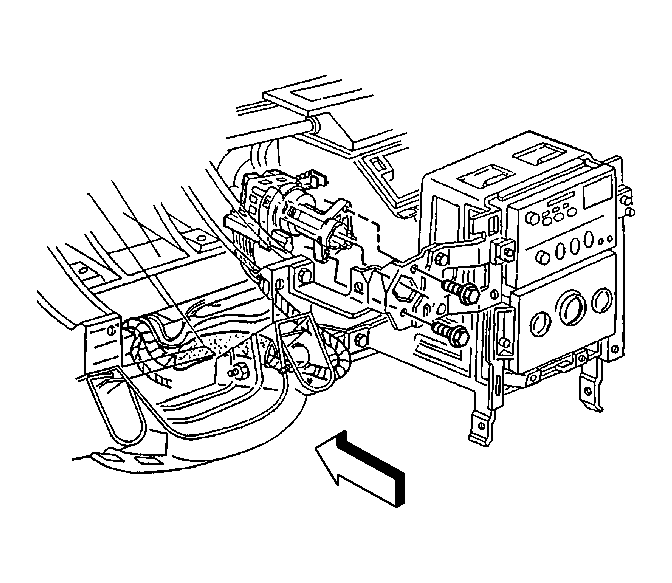

    7. Fig 4: View Of Ignition Switch
    GM95715Courtesy of GENERAL MOTORS CORP.
  7. Install the ignition switch to the ignition switch housing bracket.
  8. Install the ignition switch retaining bolts.

    Tighten:  Tighten the ignition switch retaining bolts to 5.5 N.m (49 lb in).

  9. Install the ignition switch bezel to the switch.

    Align the bezel slots to the switch pins, then push to secure.

    10. Fig 5: Coaxial Cable At Insulation Tape Along The Hinge Pillar
    GM65102Courtesy of GENERAL MOTORS CORP.
  10. Install the coaxial cable to the insulation tape along the hinge pillar.
  11. Install the IP left lower insulator panel. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages and Console.
    12. Fig 6: Radio Control Coaxial Cable At Antenna Module
    GM65103Courtesy of GENERAL MOTORS CORP.
  12. Tape the radio control coaxial cable to the front windshield antenna coaxial cable and the IP wiring harness.
  13. Install the IP wiring harness push -in retainers to the floor panel support.
  14. Secure the IP wiring harness to the body retaining clips.
  15. Connect the coaxial cable to the antenna module.
  16. Install the left lock pillar trim. Refer to Trim Replacement - Lock Pillar (Upper Convertible) or Trim Replacement - Lock Pillar (Coupe) or Trim Replacement - Lock Pillar (Lower Convertible and Hard Top) in Interior Trim.
  17. Install the left door sill plate. Refer to Door Sill Plate Replacement in Interior Trim.
  18. Install the driver knee bolster trim panel. Refer to Trim Panel Replacement - Knee Bolster in Instrument Panel, Gages and Console.
  19. Install the IP accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory in Instrument Panel, Gages and Console.
  20. Install the console. Refer to Console Replacement in Instrument Panel, Gages and Console.
