Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment release switch.
  2. Connect the electrical connector to the rear compartment release switch.
  3. Align the steering column filler panel to the I/P lower trim panel. Press the filler panel retainers into the I/P lower trim panel openings.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the steering column filler panel bolts.

    Tighten:  Tighten the bolts to 2 N.m (18 lb in).

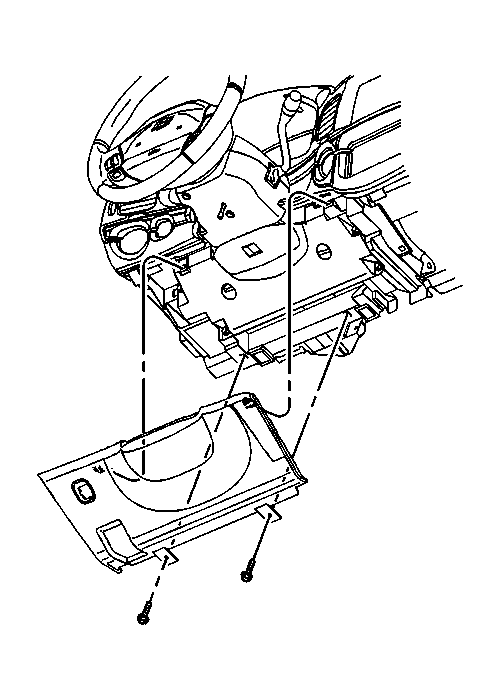

    5. Fig 1: Installing Steering Column Filler Panel
    GM519517Courtesy of GENERAL MOTORS CORP.
  5. Install the left I/P insulator retainers to the lower I/P trim pad.
  6. Install the I/P fuse block access hole cover.
