Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Install the armrest to the hinge at the front floor console.

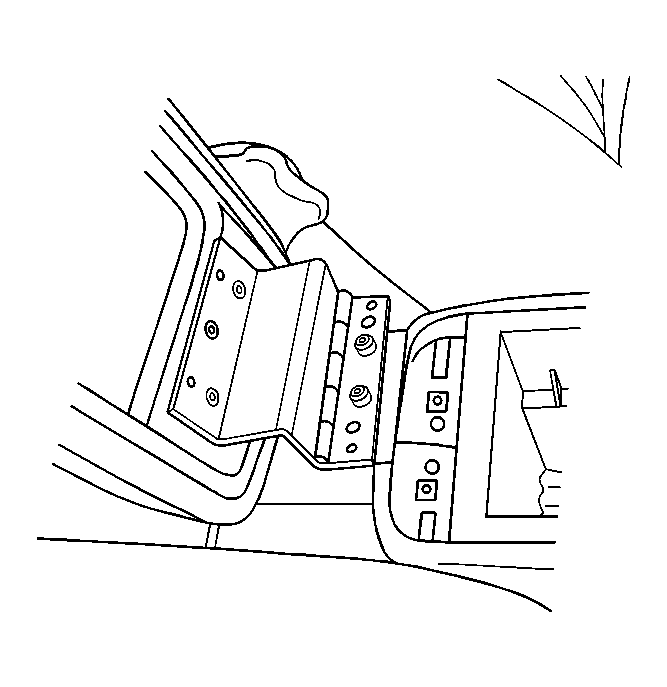

Fig 1: Installing Console Armrest

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the screws to console armrest hinge.
Tighten: Tighten the screws to 2 N.m (18 lb in).

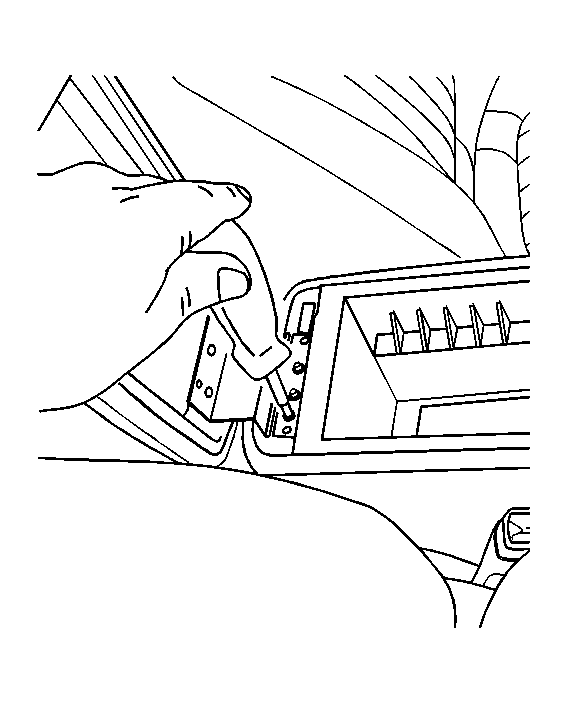

Fig 2: Installing Screws To Console Armrest Hinge

Courtesy of GENERAL MOTORS CORP.

Lower the console armrest.
