Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

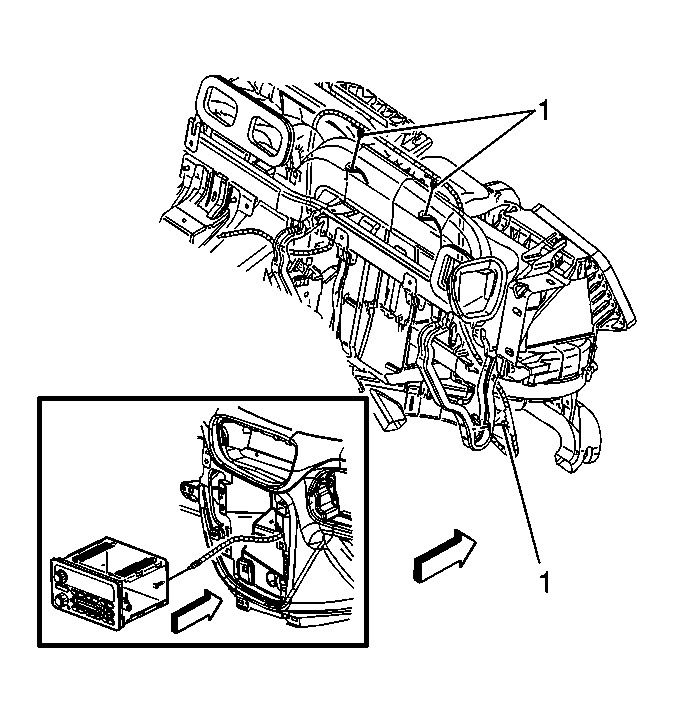

Fig 1: Positioning Radio Extension Cable To IP Support Bars

Courtesy of GENERAL MOTORS CORP.

Position the radio extension cable to the IP support bars as previously noted.
Reach through the IP compartment to connect the antenna cable to the radio.
Install the radio extension cable attachments (1) to the IP support bars.

Fig 2: View Of Radio Antenna Cable To Radio Extension Cable

Courtesy of GENERAL MOTORS CORP.

Connect the antenna cable (2) to the radio extension cable.
Install the inflatable restraint module. Refer to Inflatable Restraint Instrument Panel Module Replacement in SIR.
