Instrument Cluster Schematics

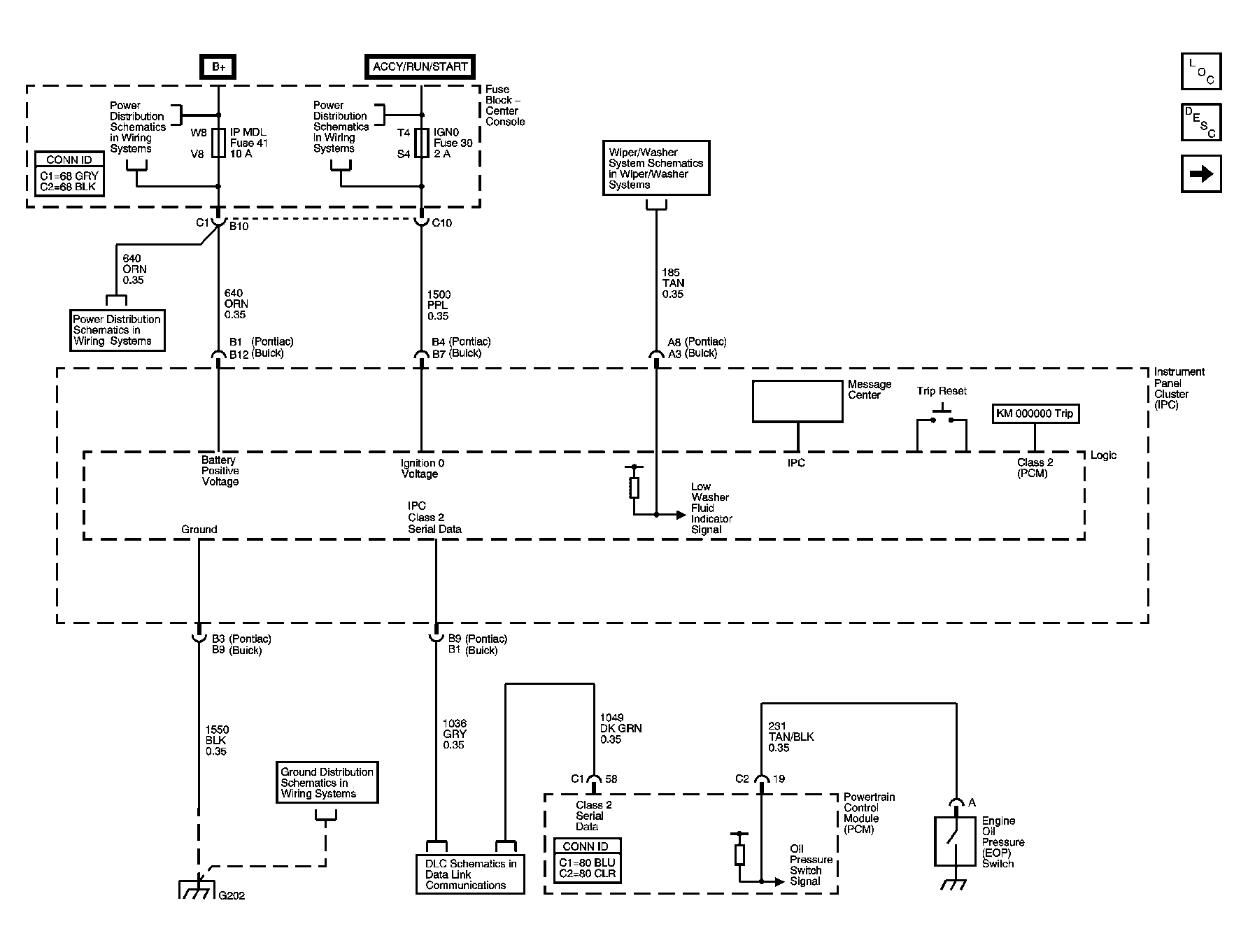

Fig 1: Power, Ground, Serial Data and Message Center Schematics
GM1016155Courtesy of GENERAL MOTORS CORP.

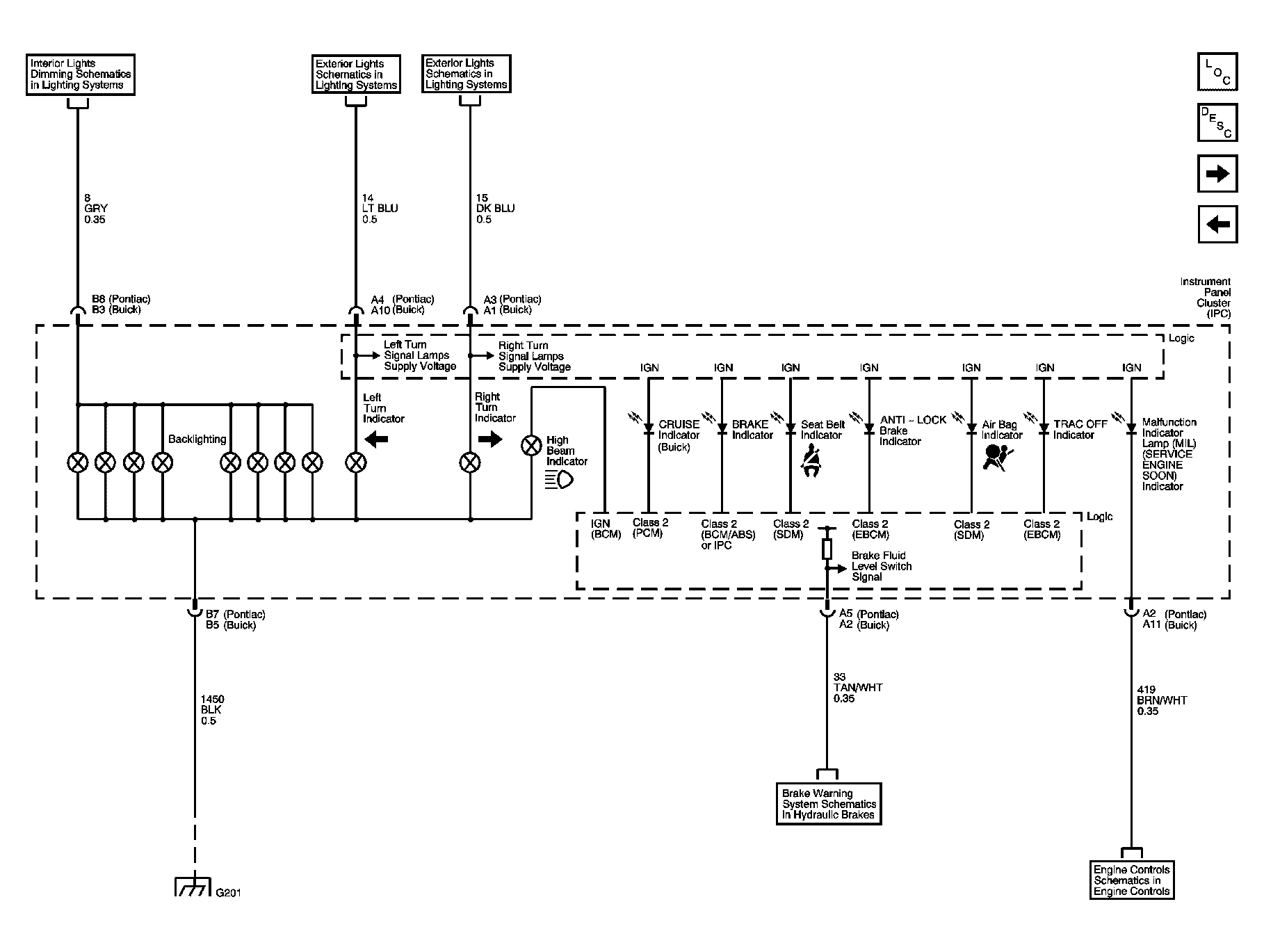

Fig 2: Indicators
GM816335Courtesy of GENERAL MOTORS CORP.

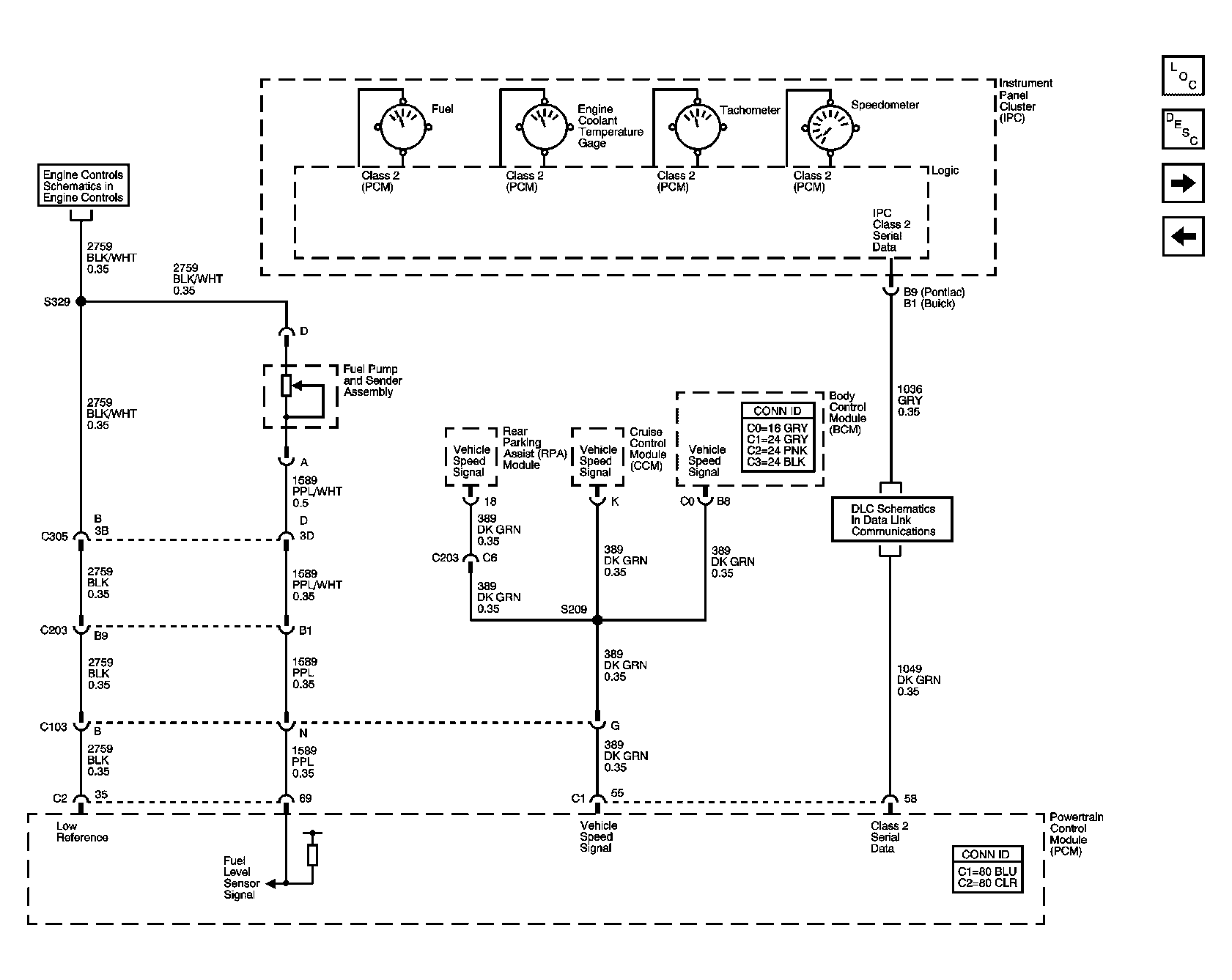

Fig 3: Gages Schematics
GM816337Courtesy of GENERAL MOTORS CORP.

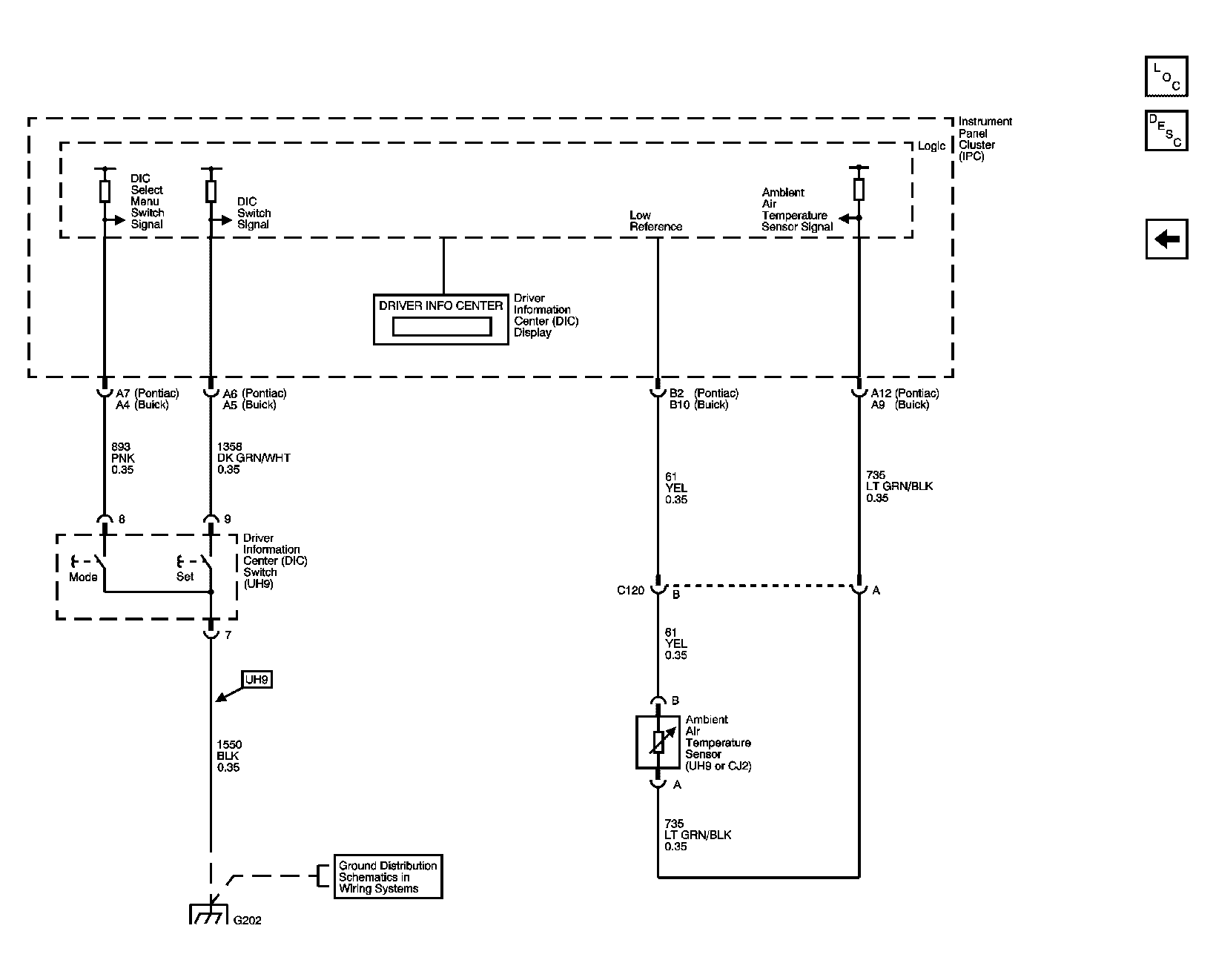

Fig 4: Driver Information Center (DIC) Schematics
GM816339Courtesy of GENERAL MOTORS CORP.
