Head Up Display Schematics

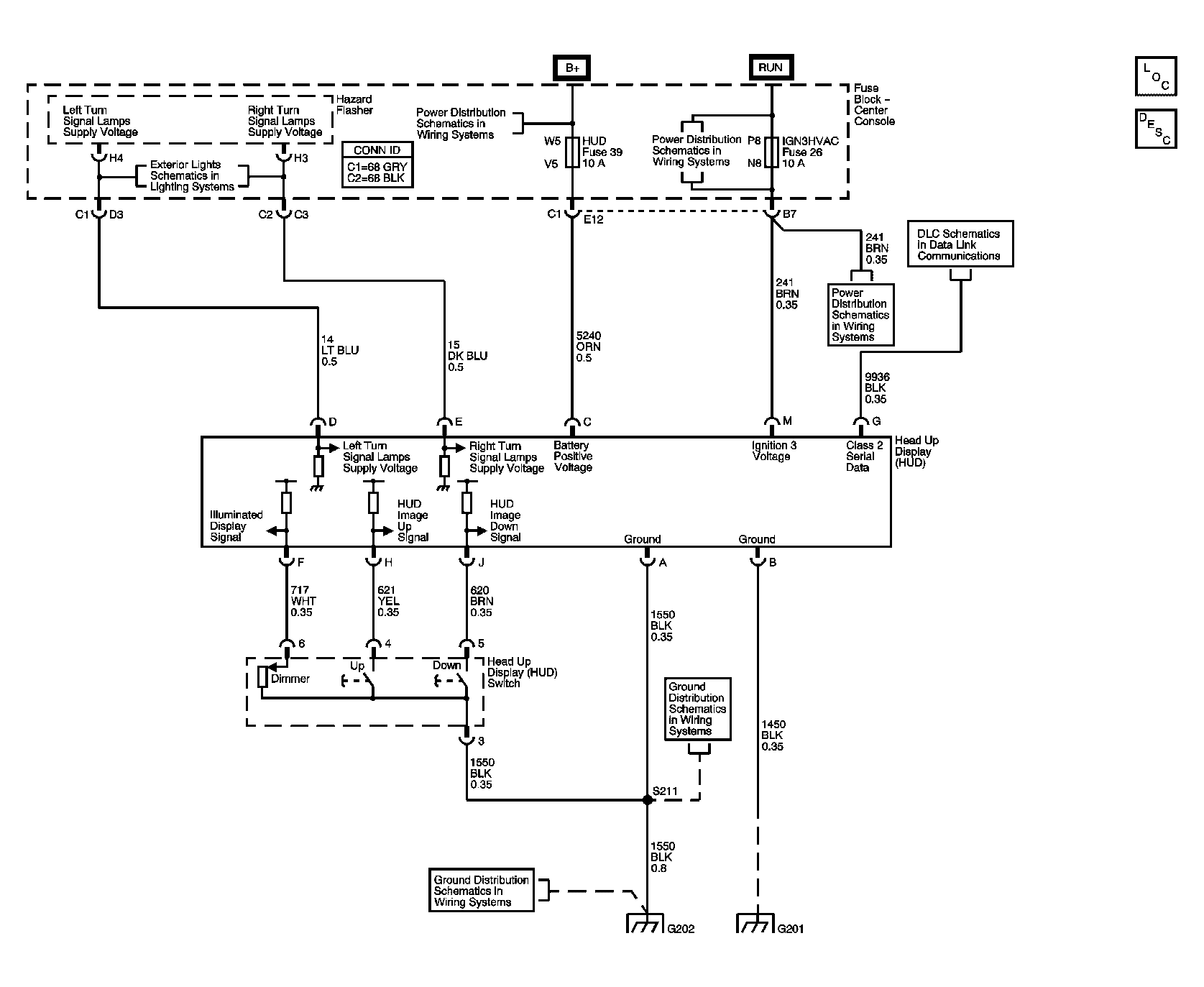

Fig 1: Head Up Display Schematics

GM628869

Courtesy of GENERAL MOTORS CORP.
