Installation Procedure

  1. Install the front defroster duct.

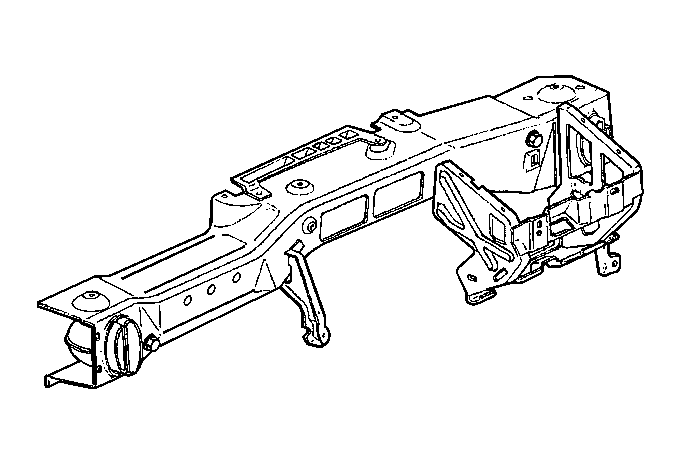

  2. Fig 1: Identifying I/P Carrier
    GM482600Courtesy of GENERAL MOTORS CORP.
  3. Install the I/P carrier to the vehicle through the main wire harness.

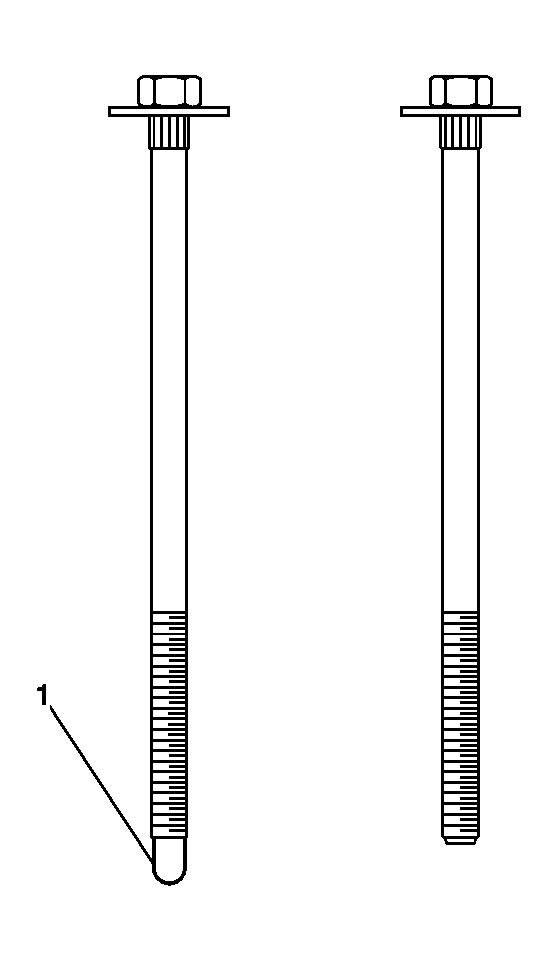

  4. Fig 2: Identifying Guide Feature On Carrier Bolt
    GM795816Courtesy of GENERAL MOTORS CORP.
  5. If you had to bend the I/P carrier bolt during removal, perform the following procedure:
    1. Discard the bent bolt.
    2. Shorten a NEW bolt 4-5 mm (3/16 in) by cutting off the guide feature (1) as shown.
    3. if necessary, clean the threads prior to installation using a die.
    4. When installed, 5-6 threads of the bolt should protrude through the fastener.

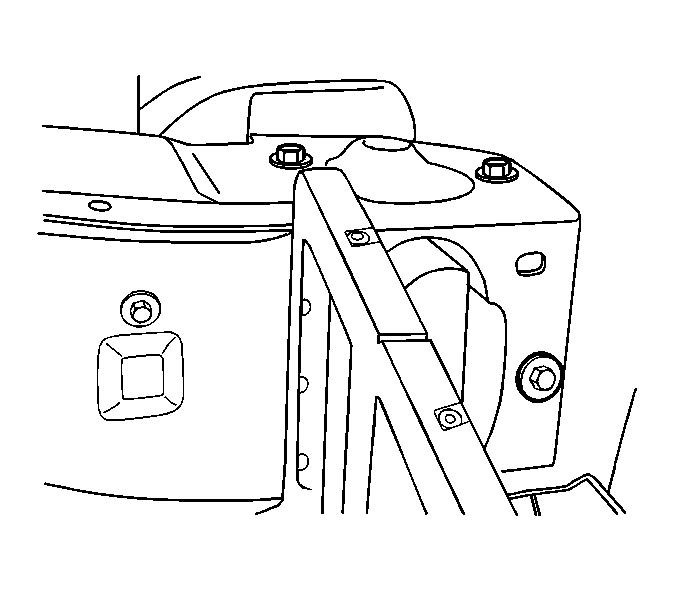

  6. Fig 3: View Of Bolts/Screws For IP Carrier And Cross Vehicle Beam To Hinge Pillar
    GM482588Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do NOT tighten the bolts.
  7. Loosely install the bolts which secure the I/P carrier to the right hinge pillar.

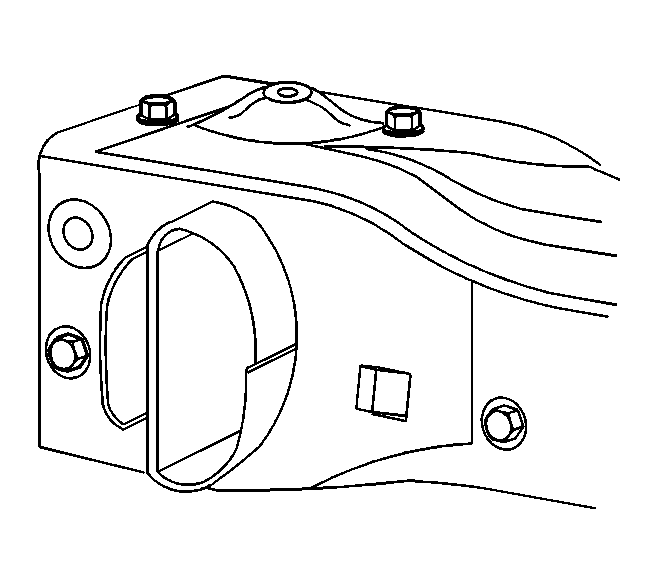

  8. Fig 4: Identifying I/P Carrier To The Left Hinge Pillar Bolts
    GM482587Courtesy of GENERAL MOTORS CORP.
  9. Loosely install the bolts which secure the I/P carrier to the left hinge pillar.
  10. NOTE: Refer to Fastener Notice in Cautions and Notices.
  11. Tighten all the bolts which secure the I/P carrier to the pillars.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

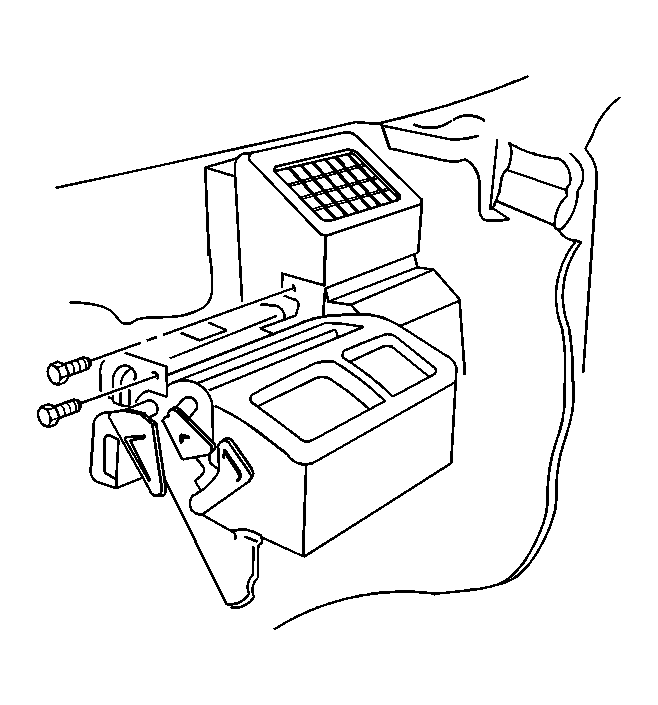

  12. Fig 5: Locating HVAC Module To I/P Carrier Retaining Bolts
    GM630889Courtesy of GENERAL MOTORS CORP.
  13. Install the HVAC module to the I/P carrier with the retaining bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  14. Install the bolts which retain the HVAC module to the center support bracket.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  15. Install the I/P wiring harnesses into position and secure the retaining clips.

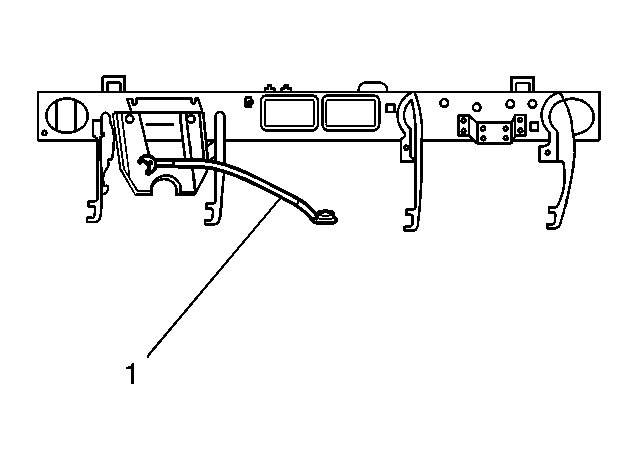

  16. Fig 6: View Of Cross Vehicle Anchor Tether
    GM630886Courtesy of GENERAL MOTORS CORP.
  17. Install the cross vehicle anchor tether (1).
  18. Clip the antenna cable to the I/P carrier.

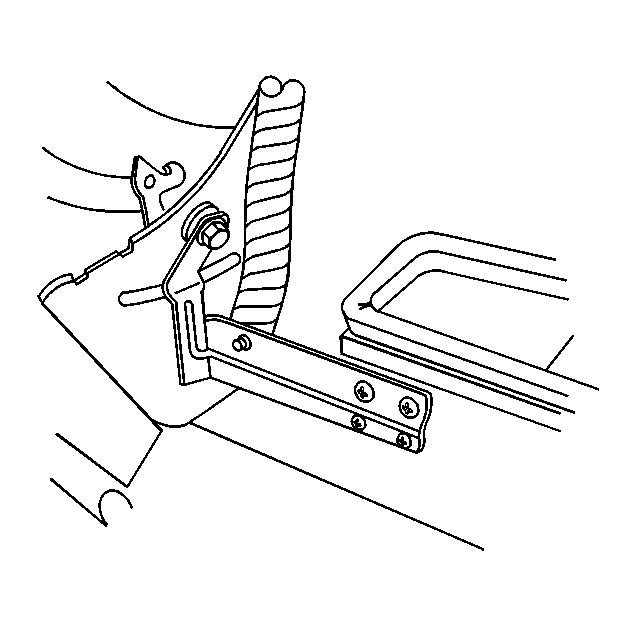

  19. Fig 7: Locating HVAC Bracket From I/P Carrier Bracket
    GM630895Courtesy of GENERAL MOTORS CORP.
  20. Install the HVAC bracket to the I/P carrier bracket.
  21. Install the HUD bracket, if equipped. Refer to Head Up Display Replacement .
  22. Install the brake pedal bracket and the reinforcement. Refer to Brake Pedal Assembly Replacement .
  23. Install the I/P trim pad. Refer to Instrument Panel (I/P) Assembly Replacement .
  24. Install the front floor console. Refer to Console Replacement - Front Floor (Aztek)  or Console Replacement - Front Floor (Rendezvous) .
