Installation Procedure

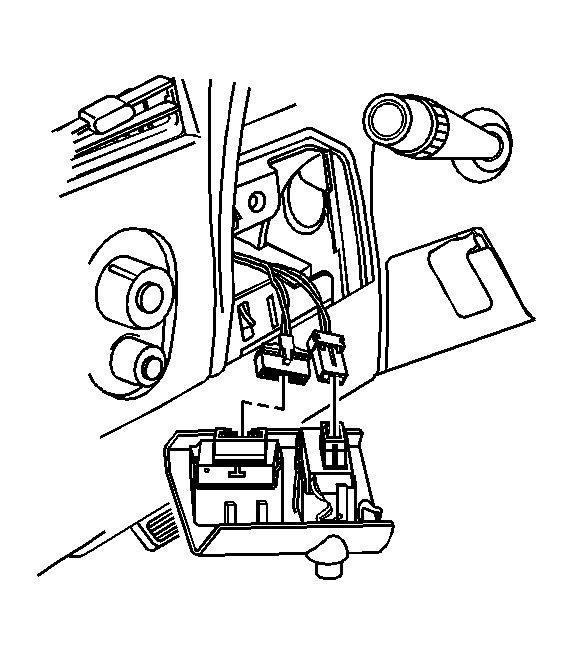

    Fig 1: Head Up Display Switch Electrical Connectors
    GM784930Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors to the driver information center panel.

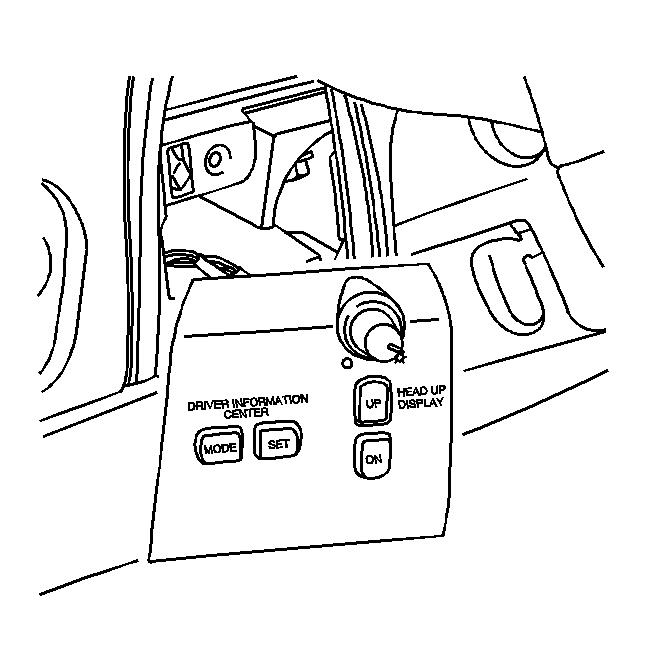

    2. Fig 2: Locating Cluster Trim Plate
    GM784927Courtesy of GENERAL MOTORS CORP.
  2. Install the driver information center panel to the instrument panel. Press firmly into place until fully seated.
