Removal Procedure

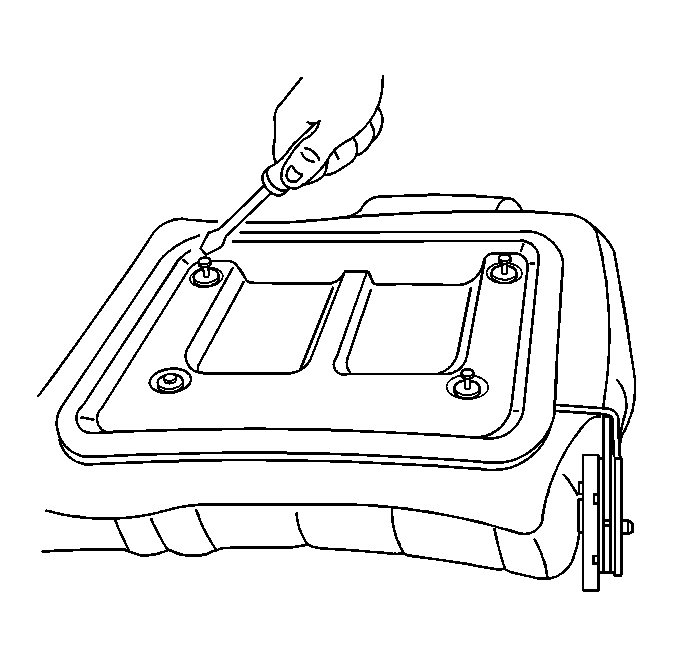

    Fig 1: Locating Rear Seat Back Trim Panel Push-Pin Retainer Center
    GM629108Courtesy of GENERAL MOTORS CORP.
  1. Remove the center of the push-pin retainer from the rear seat back trim panel using a small flat-bladed tool.

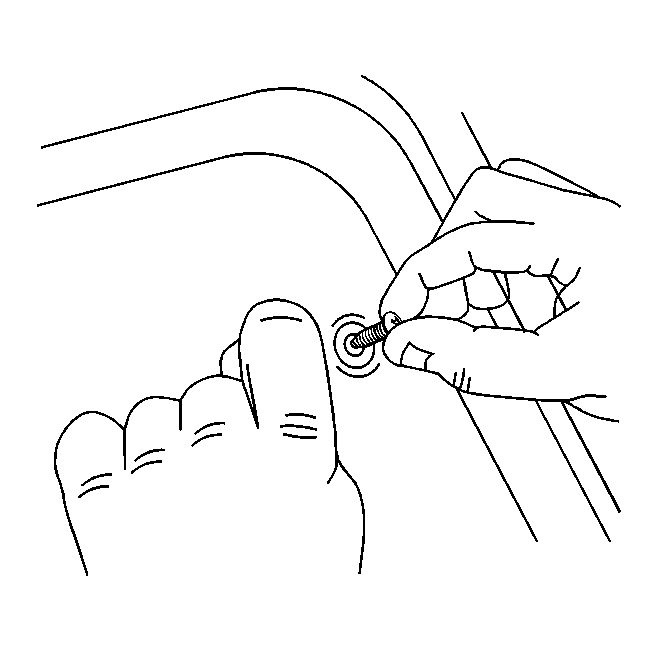

    2. Fig 2: View Of Rear Seat Back Trim Panel Push-Pin Retainer
    GM627414Courtesy of GENERAL MOTORS CORP.
  2. Remove the push-pin retainer from the seat back trim panel.

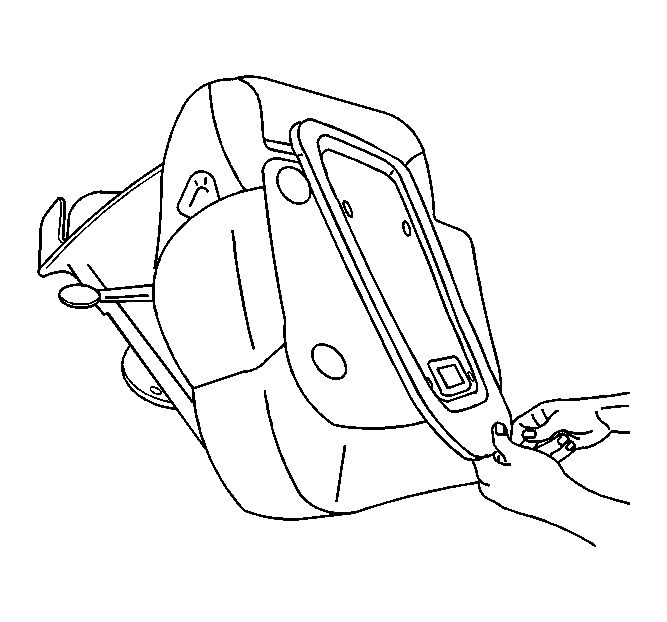

    3. Fig 3: Identifying Seat Back Trim Panel
    GM627383Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat back trim panel from the rear seat back.
