Body Rear End Component Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

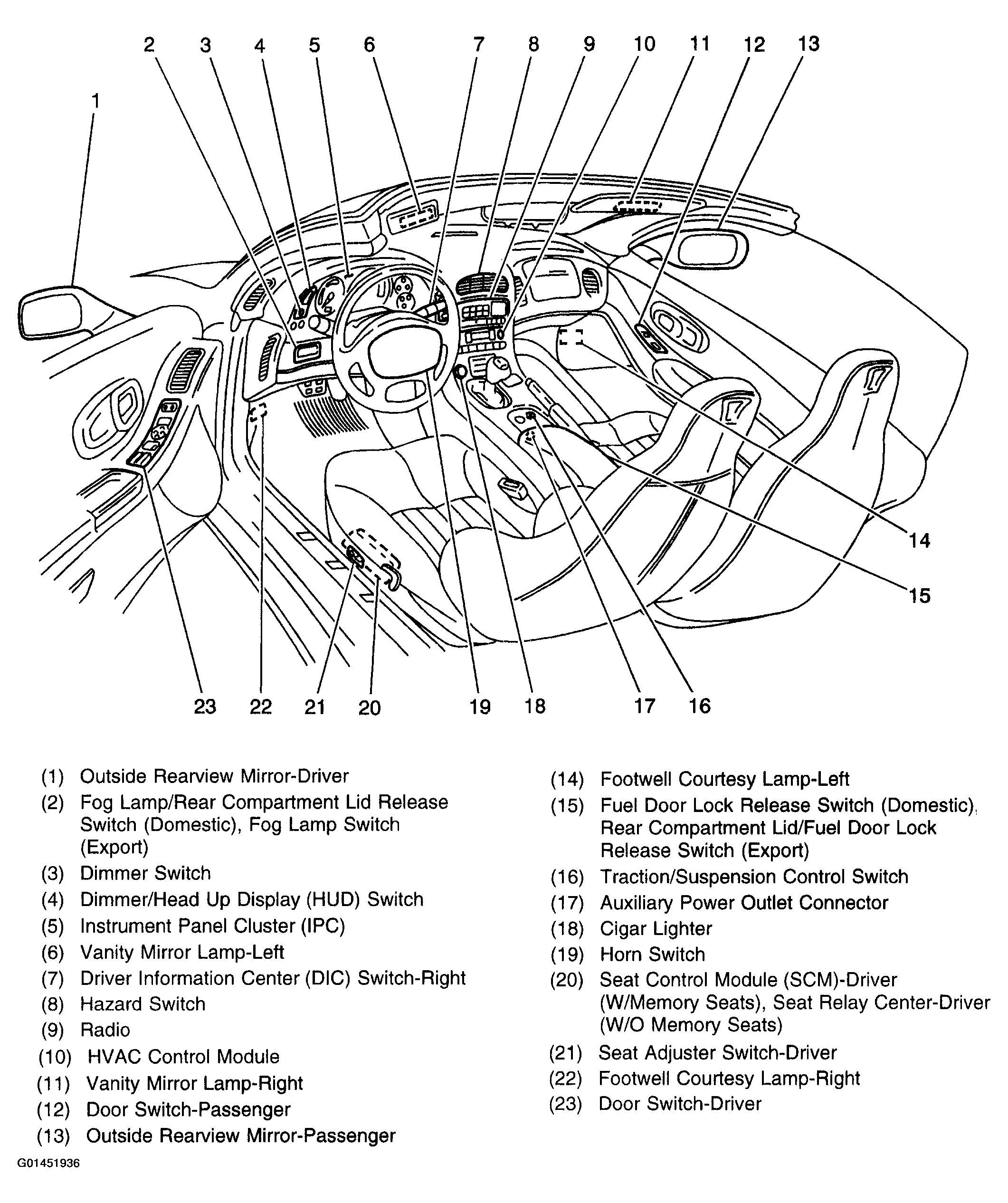

Fig 1: Cockpit View

Courtesy of GENERAL MOTORS CORP.

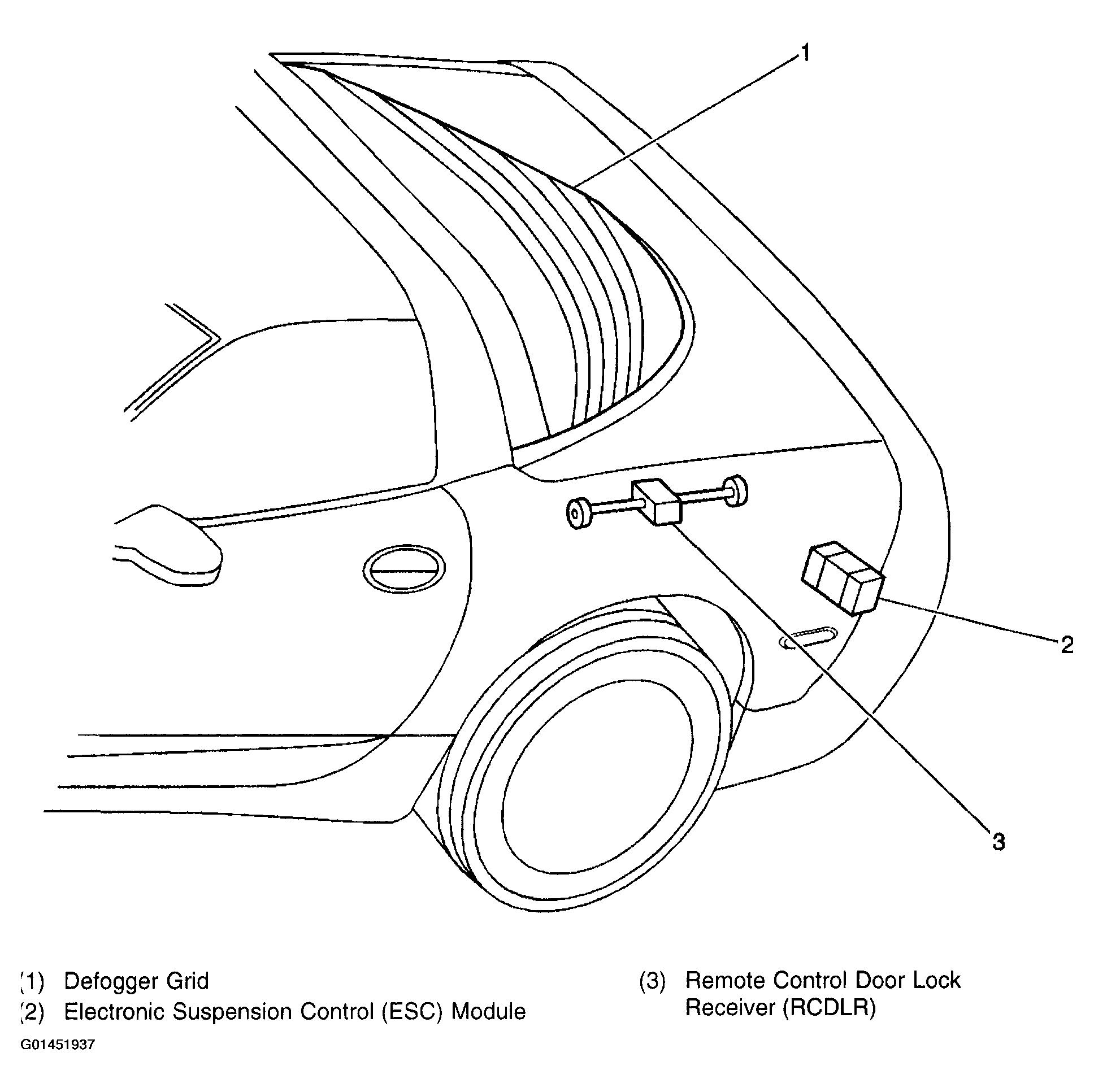

Fig 2: Rear Of Vehicle-Left

Courtesy of GENERAL MOTORS CORP.

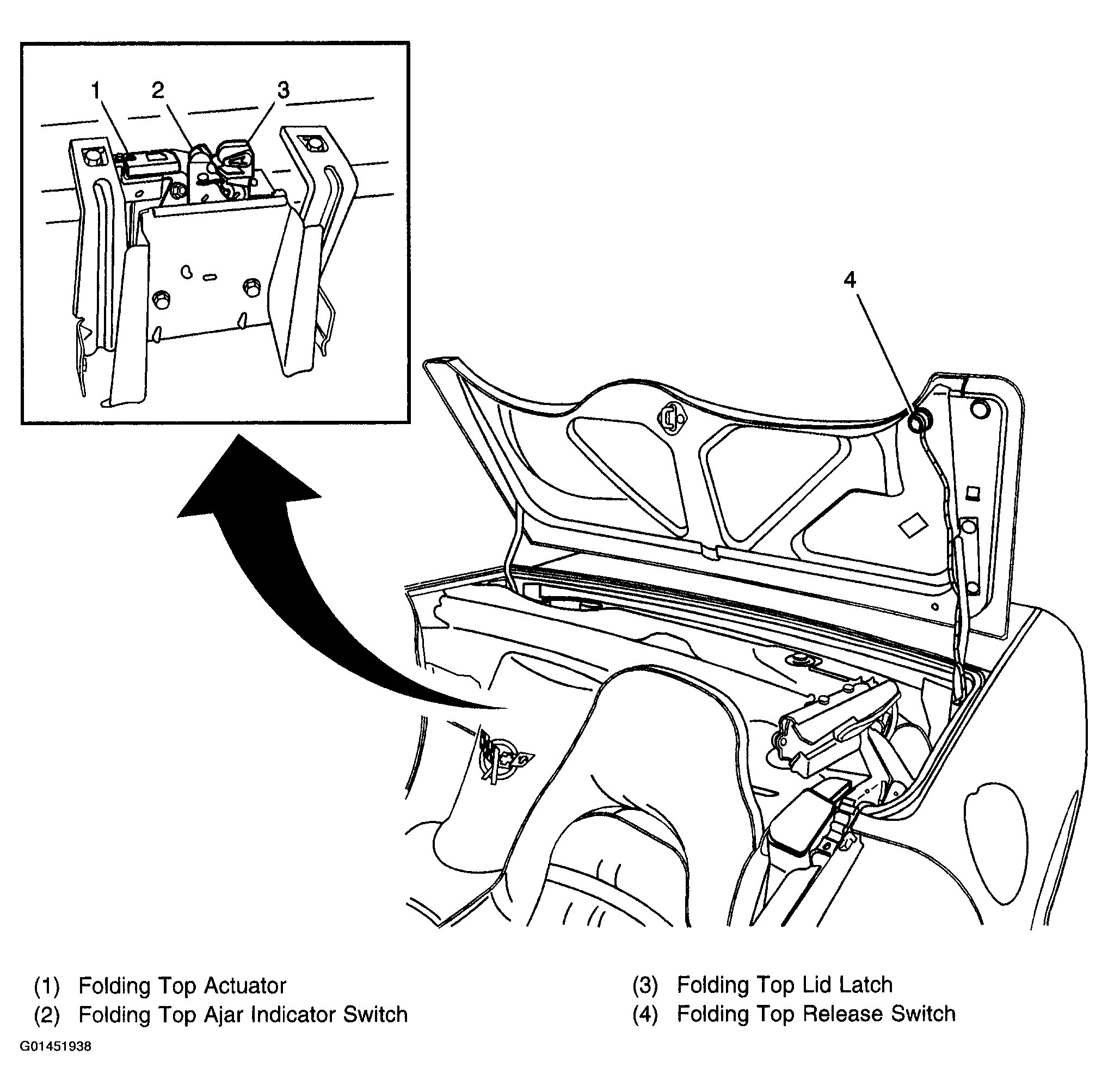

Fig 3: Folding Top Components

Courtesy of GENERAL MOTORS CORP.

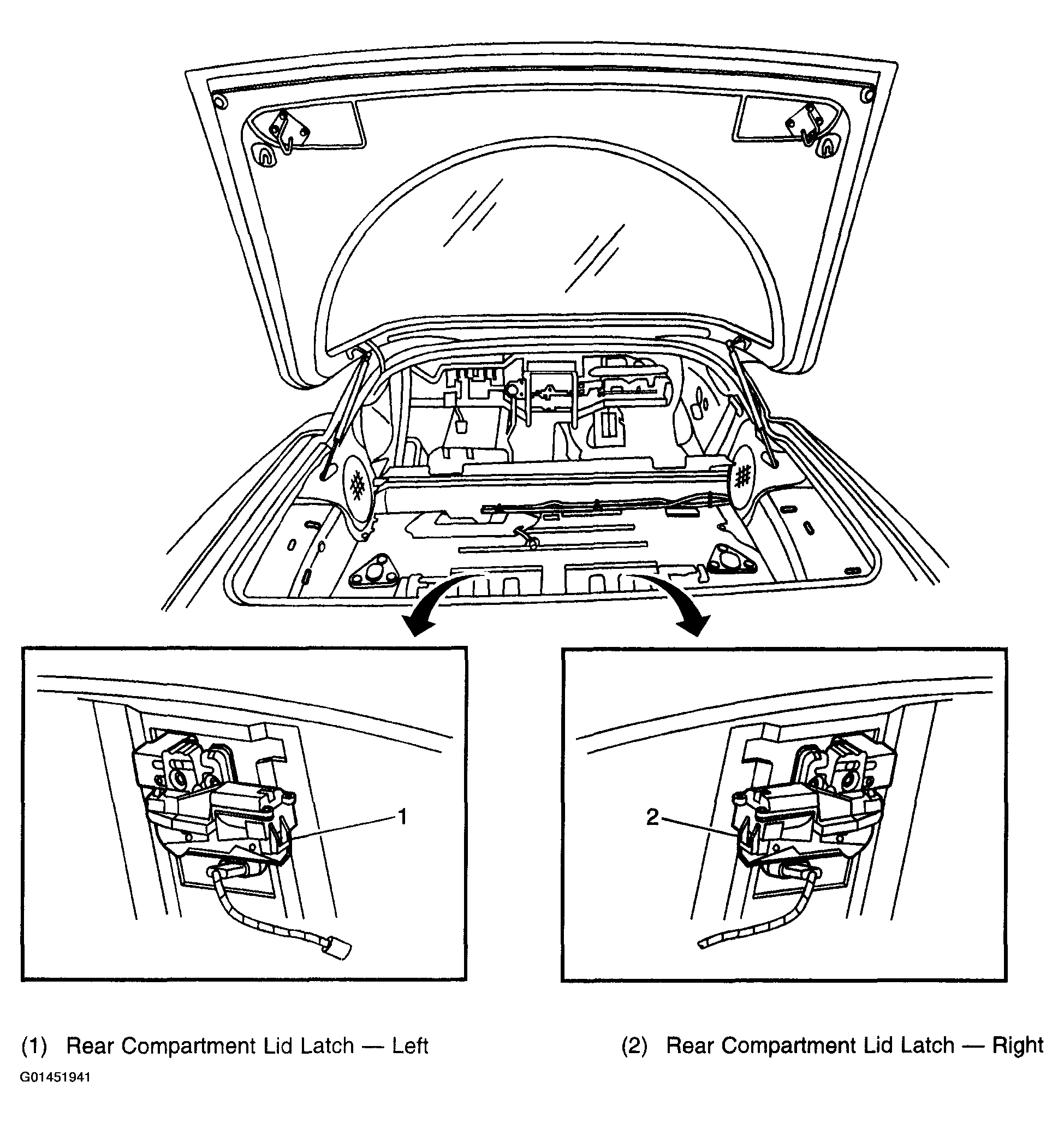

Fig 4: Luggage Compartment

Courtesy of GENERAL MOTORS CORP.

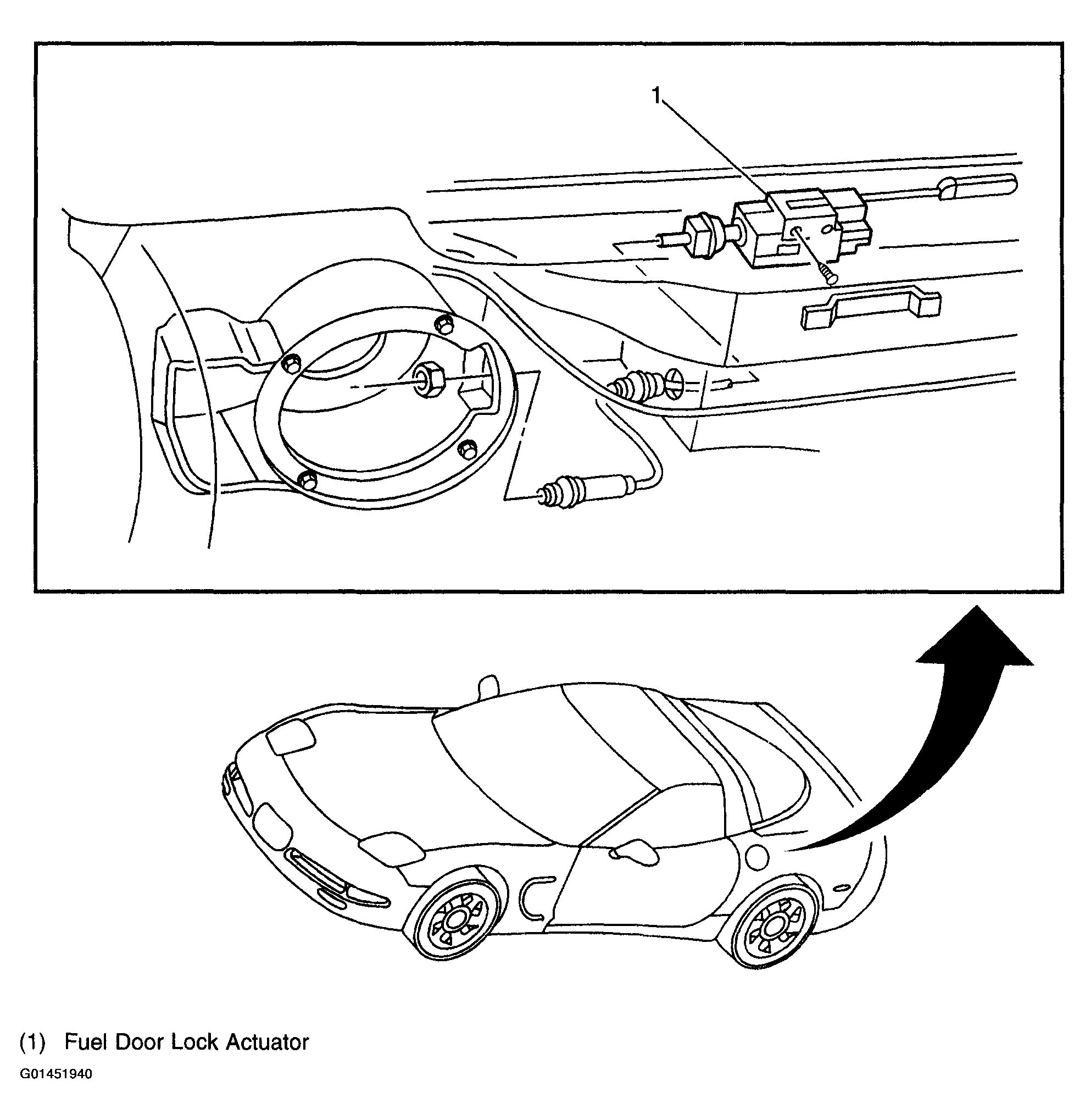

Fig 5: LR Of The Vehicle

Courtesy of GENERAL MOTORS CORP.

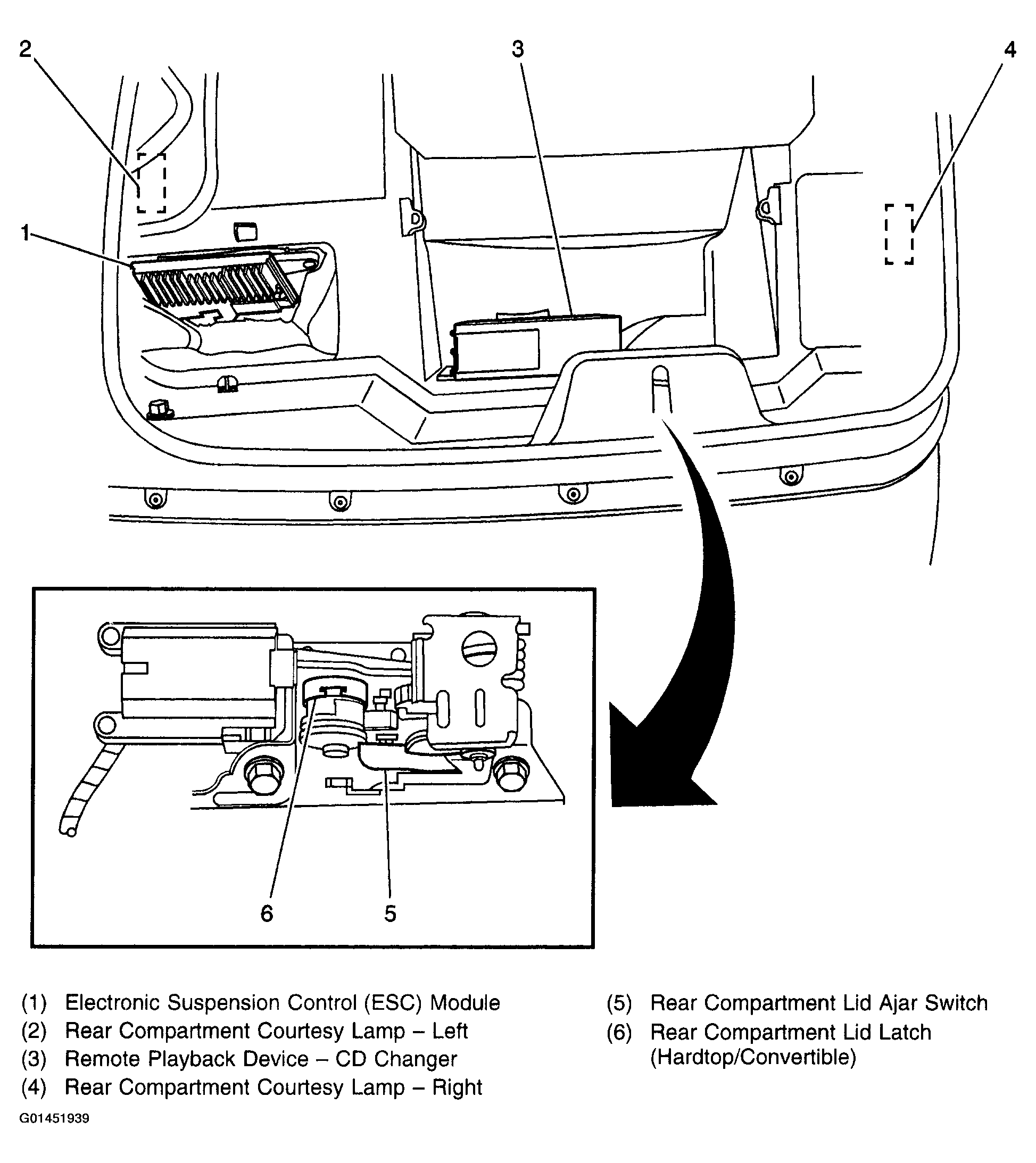

Fig 6: Rear Compartment (Coupe)

Courtesy of GENERAL MOTORS CORP.
