Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nut attaching the foot rest to the side rail.
  2. Remove the nut attaching the foot rest to the dash panel stud.
  3. Remove the foot rest.

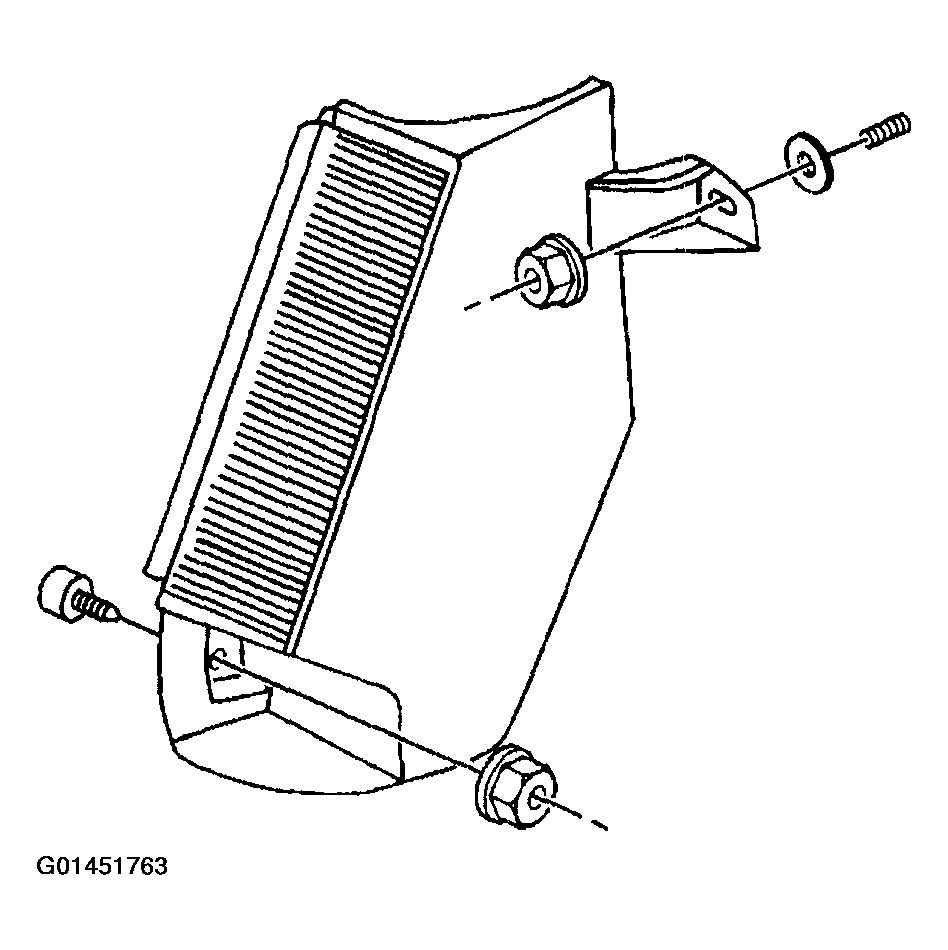

    Fig 1: Foot Rest
    G01451763Courtesy of GENERAL MOTORS CORP.
