Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .
  2. Remove the screws attaching the pull handle bracket (1) to the pull handle.
  3. Remove the pull handle.

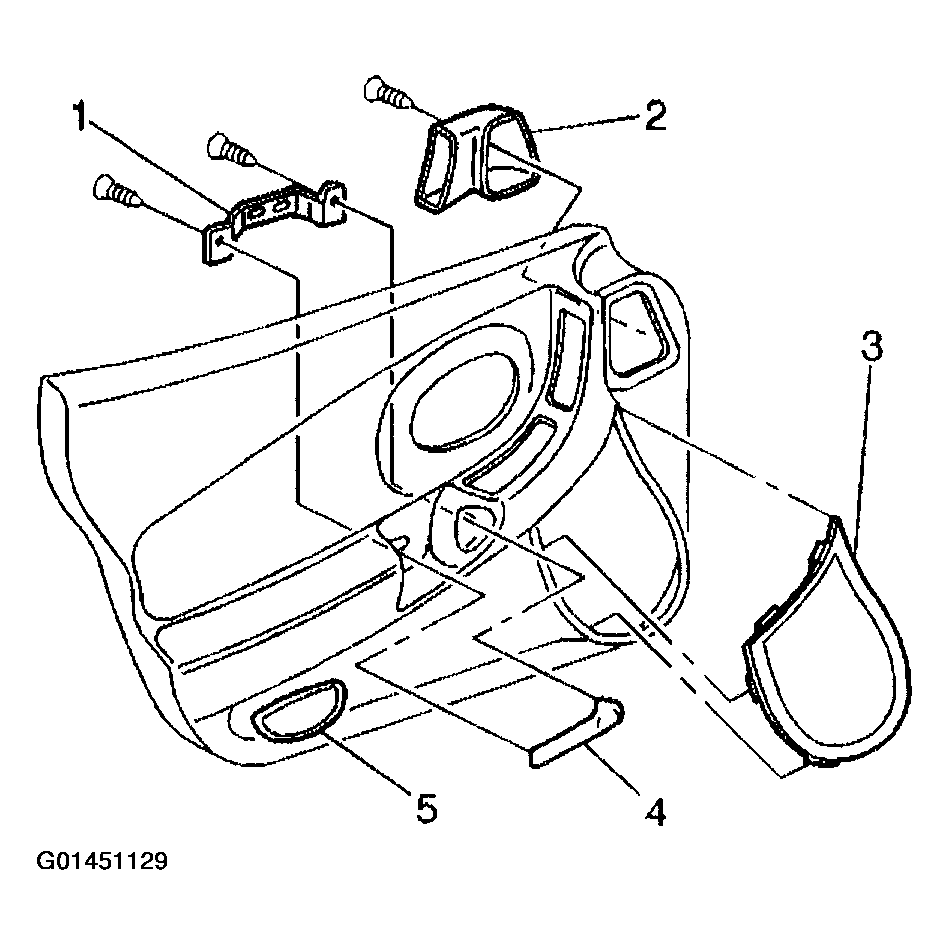

    Fig 1: Pull Handle
    G01451129Courtesy of GENERAL MOTORS CORP.
