Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to EXPRESS WINDOW DOWN CAUTION in Cautions and Notices.

Lower the door window.
Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .

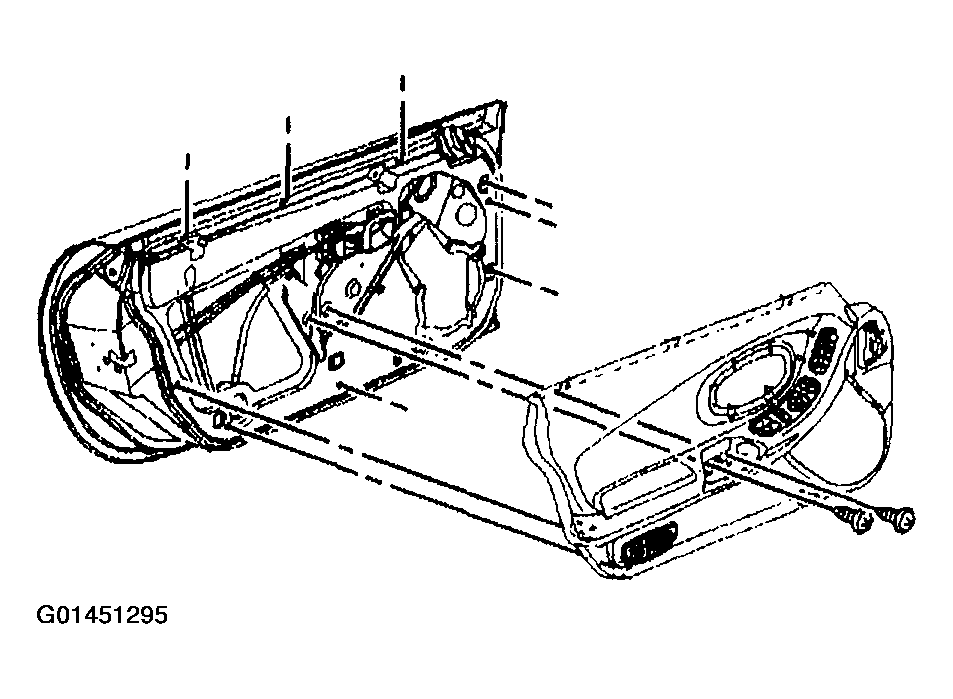

Fig 1: Door Trim Panel
Courtesy of GENERAL MOTORS CORP.
Remove the door radio speaker assembly.
- Remove the screws mounting the speaker assembly.
- Disconnect the electrical/audio connector.

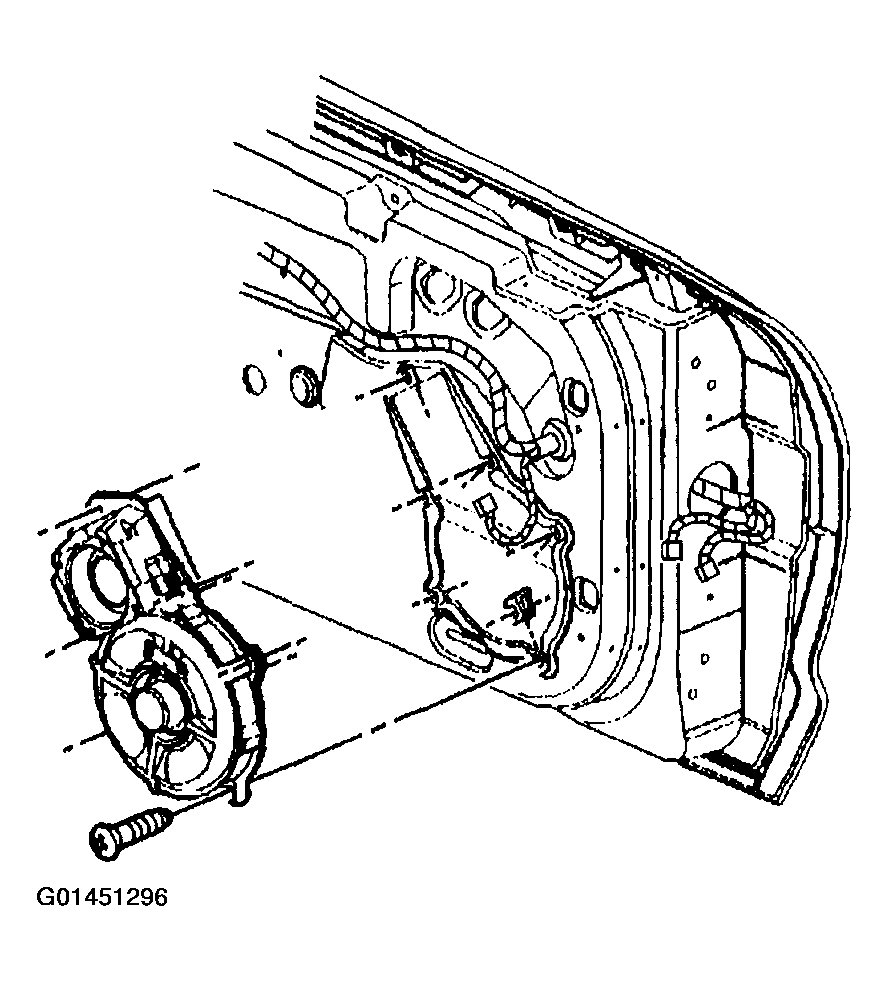

  Fig 2: Door Radio Speaker Assembly
  Courtesy of GENERAL MOTORS CORP.
Remove the mirror nut access plugs.

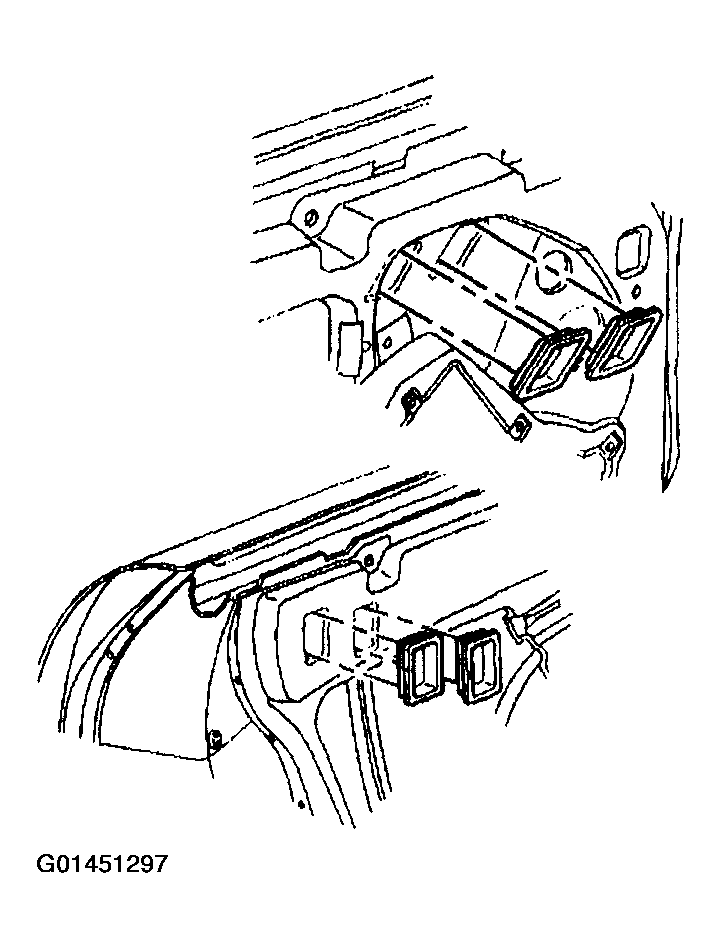

Fig 3: Mirror Nut Access Plugs
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector(s).
Disconnect the mirror harness from the retainers.
Remove the nuts from the mirror studs.
Remove the mirror with the harness and gasket.

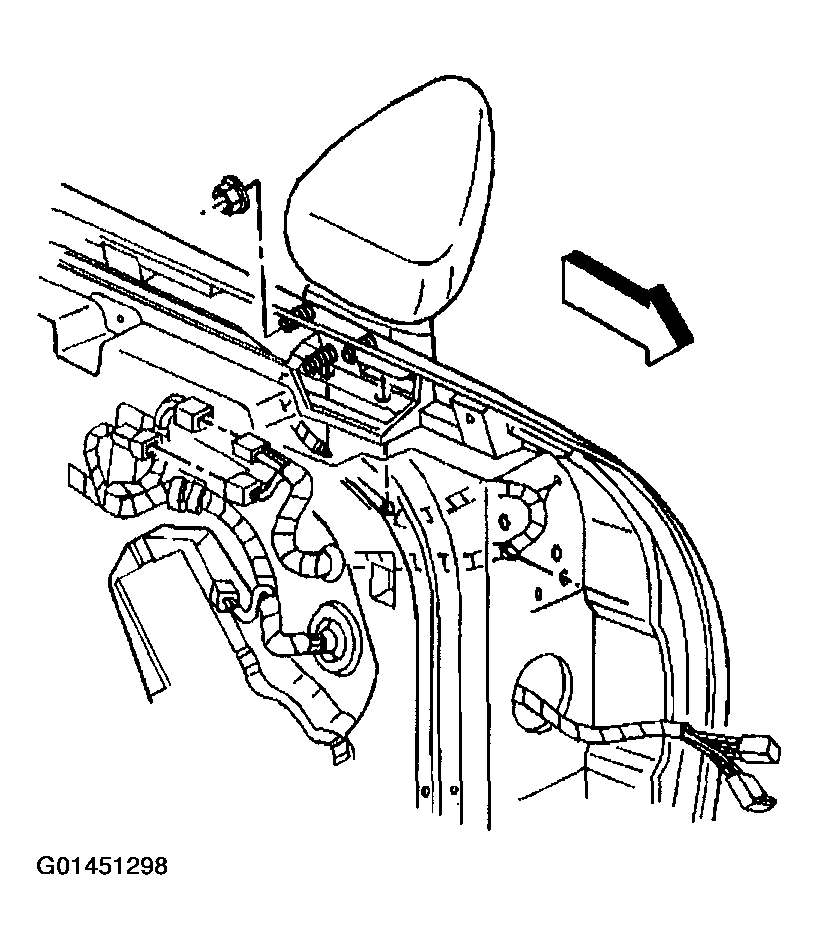

Fig 4: Mirror With Harness & Gasket
Courtesy of GENERAL MOTORS CORP.
