Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Apply protective coating/tape at the insertion point of the small flat-bladed tool in order to prevent damage to the inner door trim panel.
  1. Pry up the rear edge of the driver side switch assembly, the front edge of the passenger side switch assembly.
  2. Slide the driver side switch assembly rearward, the passenger side switch assembly forward, out of the door trim panel.
  3. Disconnect the electrical connector.
  4. If replacing a bulb, insert a small screwdriver into the slot in the base of the bulb and turn counterclockwise to remove the bulb.

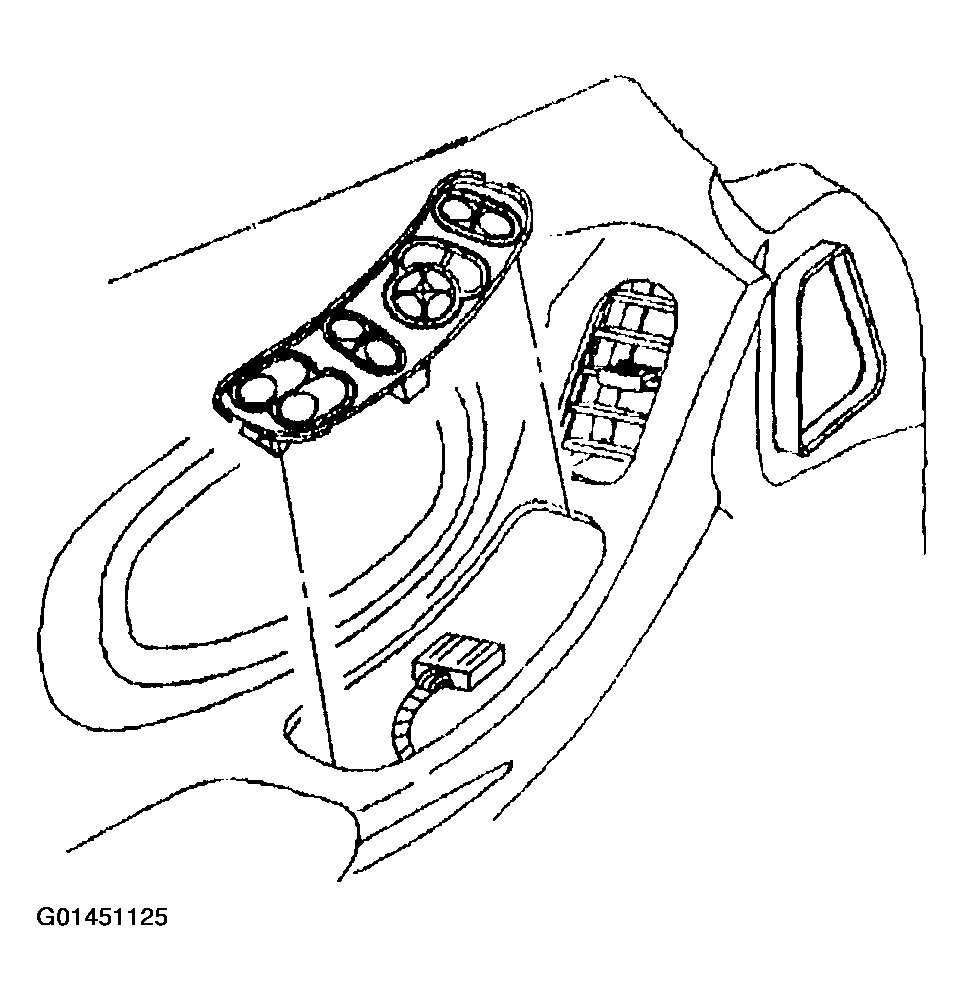

    Fig 1: Front Door Switch
    G01451125Courtesy of GENERAL MOTORS CORP.
