Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a stationary window into the opening. Refer to URETHANE ADHESIVE INSTALLATION OF STATIONARY WINDOWS .
  2. Remove the rear lift window struts. Refer to STRUT REPLACEMENT - REAR LIFT WINDOW PANEL in Body Rear End.
  3. Connect the rear defogger electrical connections.
  4. Connect the OnStar®, if equipped.

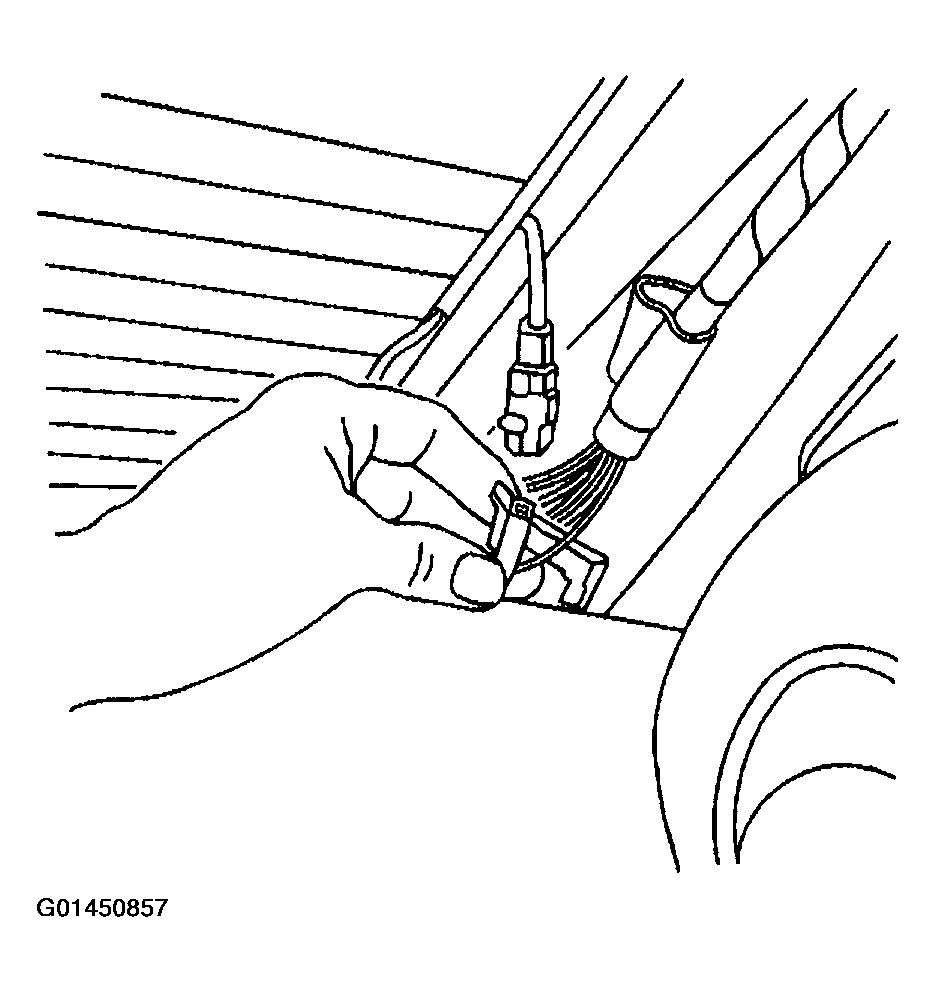

    Fig 1: Connecting Rear Defogger Electrical Connections
    G01450857Courtesy of GENERAL MOTORS CORP.
  5. Connect the antenna connector to the window.
  6. Remove the protective coverings and tape from the vehicle and the headliner
    Fig 2: Connecting Antenna Connector To Window
    G01450858Courtesy of GENERAL MOTORS CORP.
