Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the horn assembly to the skid bar.

    Install the aligning tab on the horn assembly into the hole on the skid bar.

    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the horn assembly bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

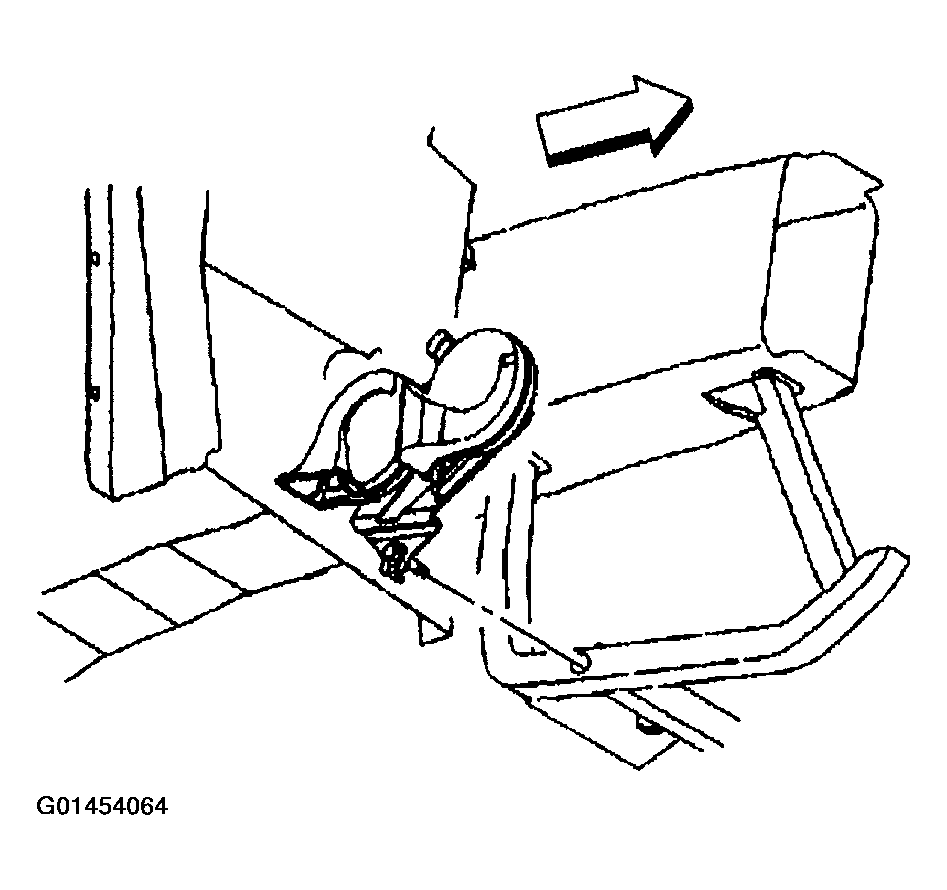

    Fig 1: Installing Horn Assembly To Skid Bar
    G01454064Courtesy of GENERAL MOTORS CORP.
  3. Connect the horn assembly electrical connector.
  4. Install the right front fascia lower closeout panel. Refer to CLOSE OUT PANEL - FRONT BUMPER FASCIA LOWER in Bumpers.

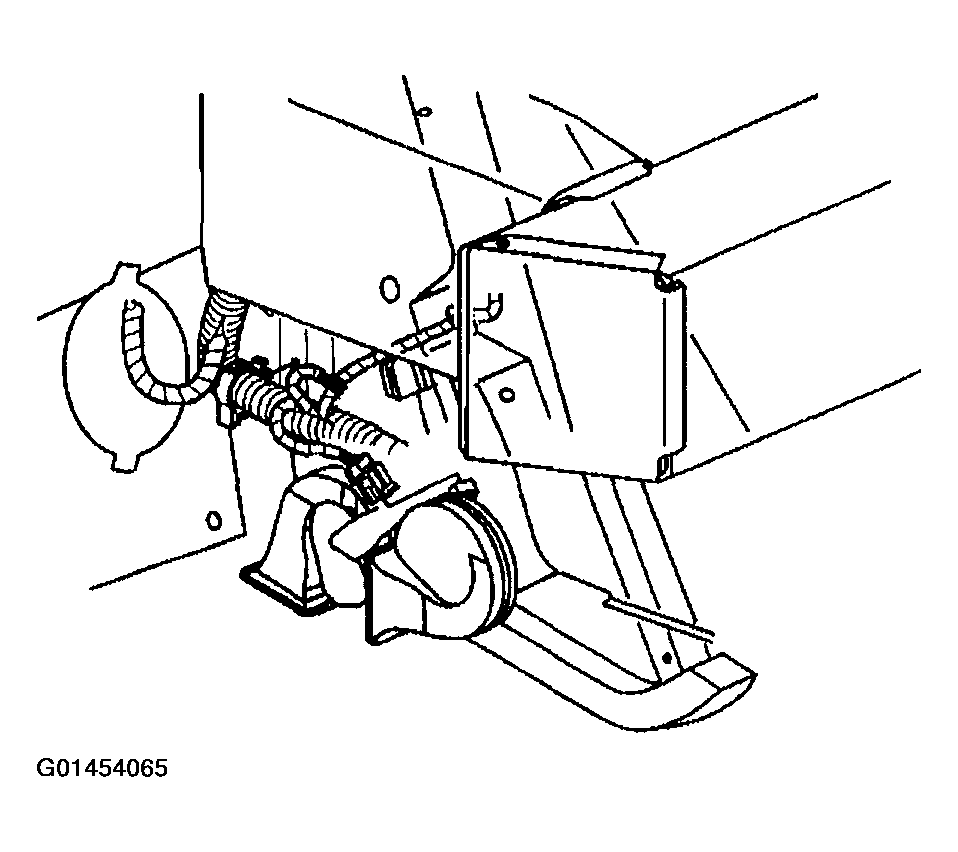

    Fig 2: Connecting Horn Assembly Electrical Connector
    G01454065Courtesy of GENERAL MOTORS CORP.
