Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

The high mount stop lamp is illuminated by a Light Emitting Diode (LED). The lamp and diode are serviced as an assembly.

Remove one of the inner tail lamps. Refer to TAIL LAMP REPLACEMENT .
Access the high-mounted stop lamp through the tail lamp opening.
Disconnect the electrical connector from the stop lamp.

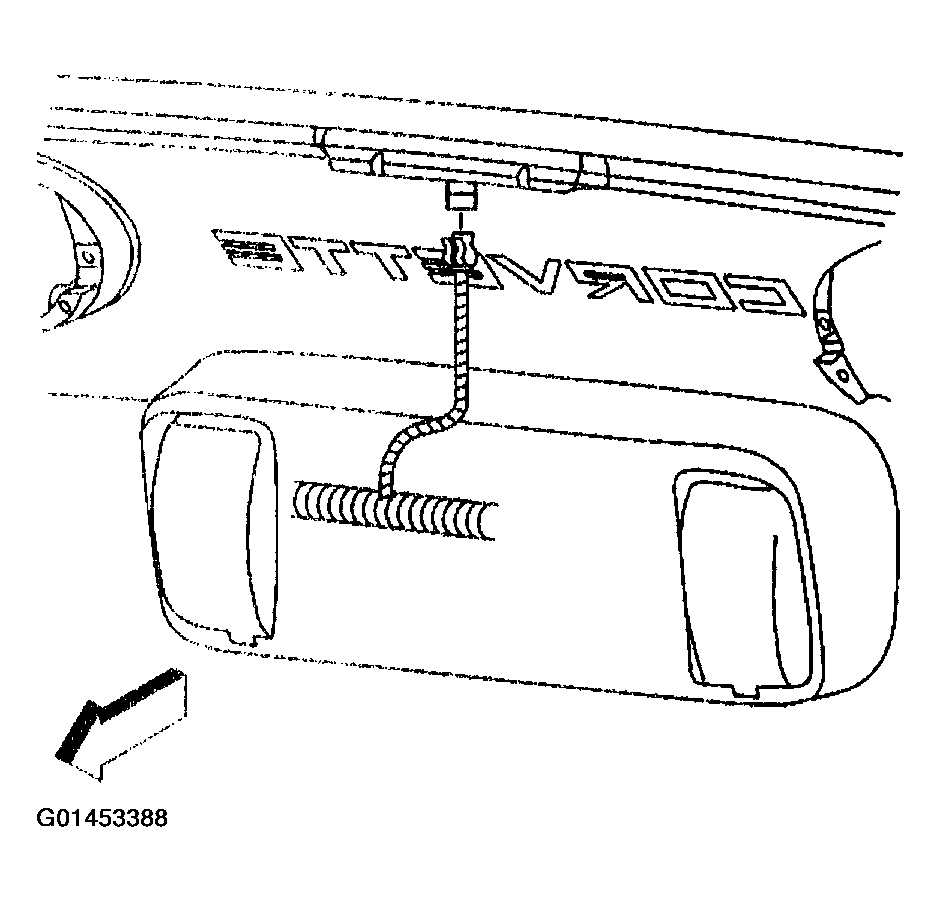

Fig 1: Disconnecting Electrical Connector From Stop Lamp
Courtesy of GENERAL MOTORS CORP.
Remove the screws retaining the stop lamp to the rear fascia.
Remove the stop lamp from the vehicle through the tail lamp opening.

Fig 2: Removing Screws Retaining Stop Lamp To Rear Fascia
Courtesy of GENERAL MOTORS CORP.
