Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

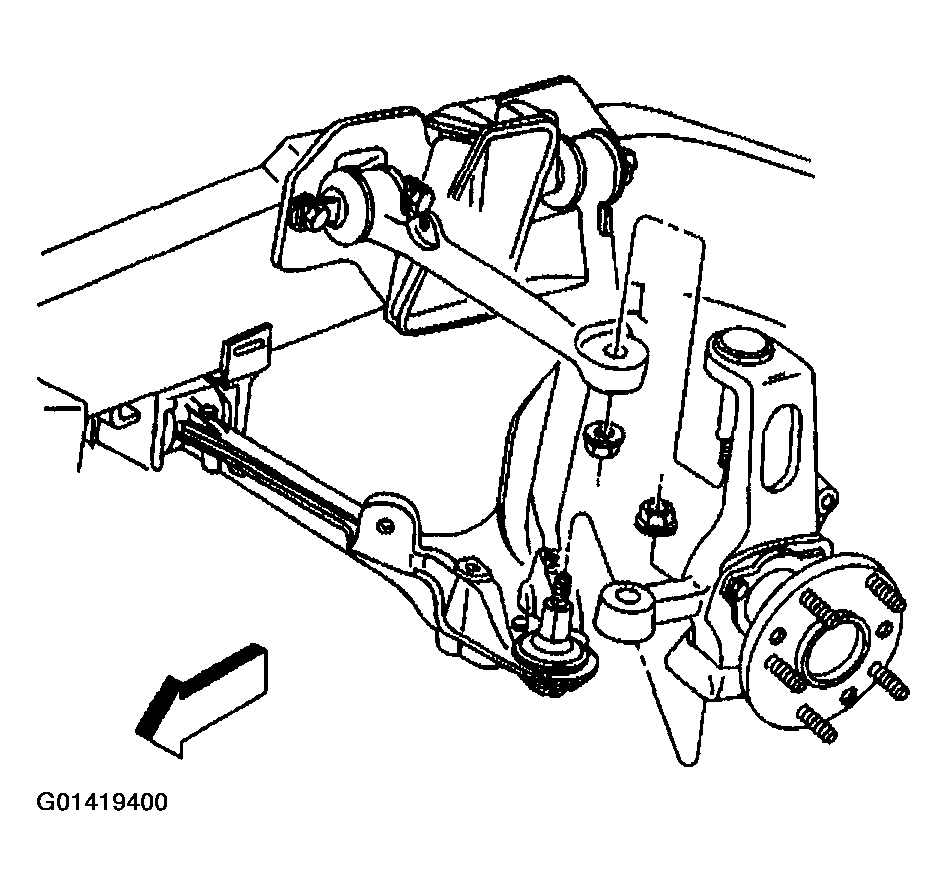

    Fig 1: Installing Steering Knuckle To Upper Control Arm
    G01419400Courtesy of GENERAL MOTORS CORP.
  1. Install steering knuckle to the upper control arm and the lower control arm. Refer to UPPER CONTROL ARM REPLACEMENT  and LOWER CONTROL ARM REPLACEMENT  .
  2. Remove the jackstand.
  3. Install the steering linkage outer tie rod ball stud to the steering knuckle. Refer to TIE ROD END REPLACEMENT - OUTER in Power Steering Systems.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the stabilizer shaft link to the lower control arm.

    Tighten

    Tighten the stabilizer shaft link nut to 72 N.m (53 lb ft).

  5. Connect the wheel speed sensor electrical connector.

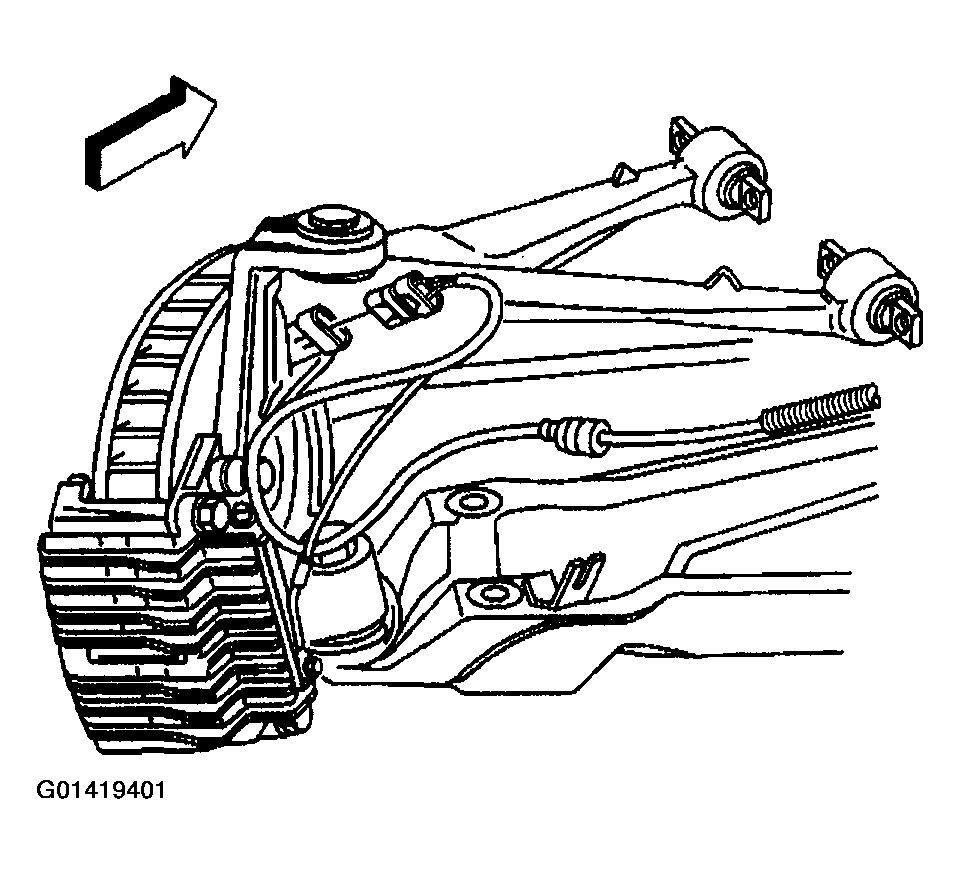

    Fig 2: Connecting Wheel Speed Sensor Electrical Connector
    G01419401Courtesy of GENERAL MOTORS CORP.
  6. Install the brake rotor and caliper. Refer to FRONT BRAKE ROTOR and FRONT BRAKE CALIPER .
  7. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  8. Lower the vehicle.
  9. Check the front wheel toe and adjust as necessary. Refer to MEASURING WHEEL ALIGNMENT .
