Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft, insulator clamps and bolts to the crossmember.

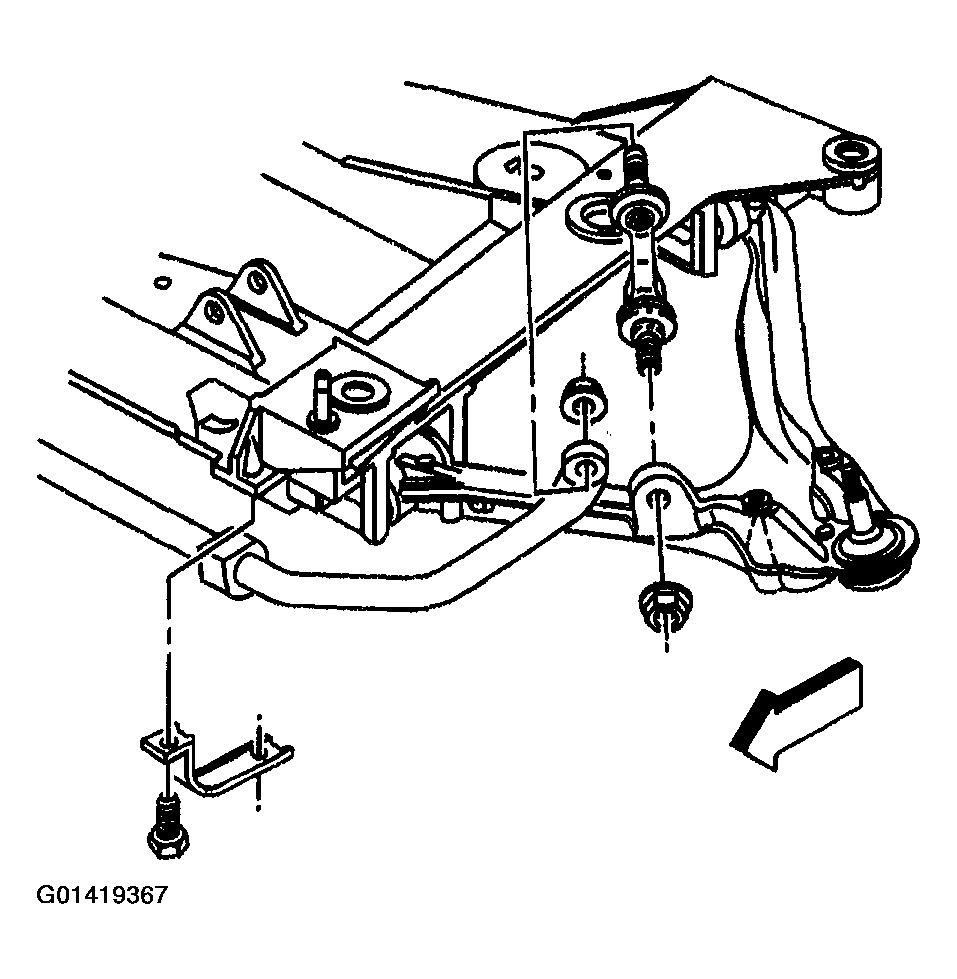

    Fig 1: Installing Stabilizer Shaft
    G01419367Courtesy of GENERAL MOTORS CORP.
  2. Install the stabilizer shaft links to the stabilizer shaft.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the stabilizer shaft link nuts.

    Tighten

    Tighten the stabilizer shaft link nuts to 72 N.m (53 lb ft).

  4. Install the stabilizer shaft insulator clamp bolts.

    Tighten

    Tighten the stabilizer shaft insulator clamp bolts to 58 N.m (43 lb ft).

  5. Install the tire and wheel assemblies. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  6. Lower the vehicle.
