Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft insulators to the stabilizer shaft.

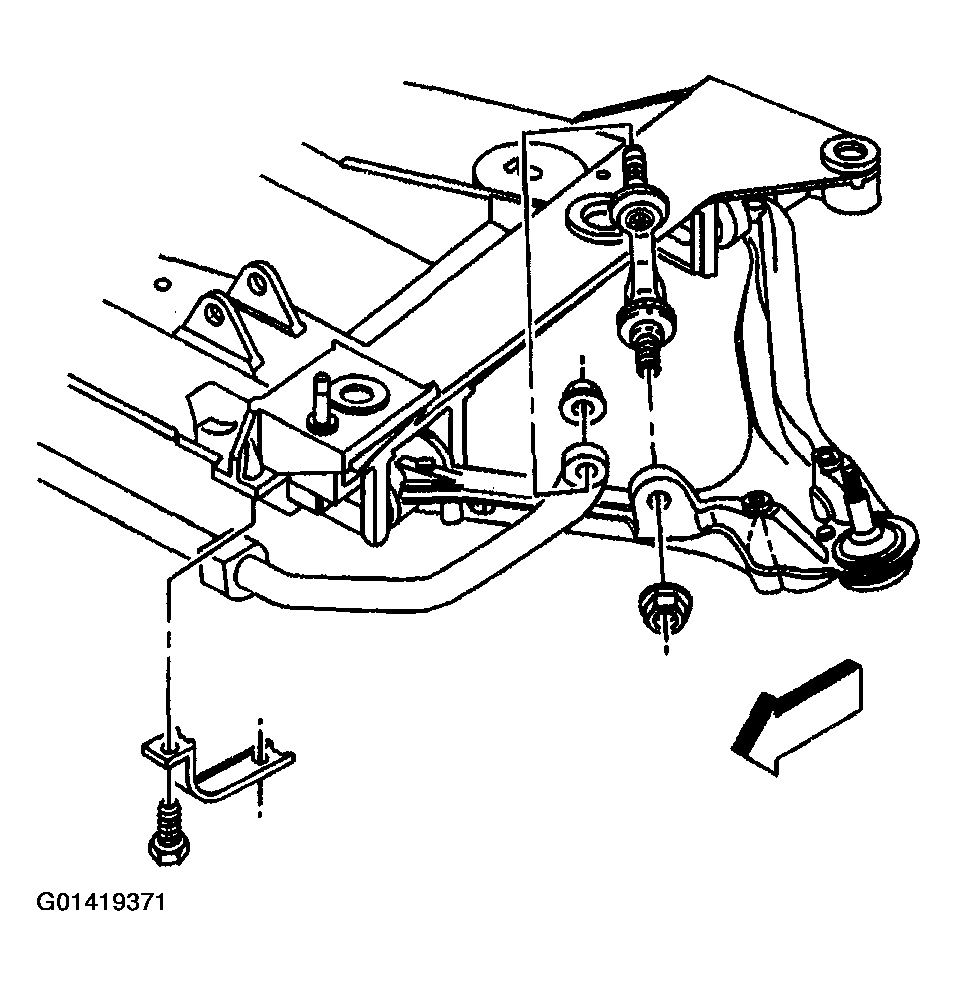

    Fig 1: Installing Stabilizer Shaft Insulators
    G01419371Courtesy of GENERAL MOTORS CORP.
  2. Install the stabilizer shaft to the vehicle. Refer to STABILIZER SHAFT REPLACEMENT  .
  3. Install the tire and wheel assemblies. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  4. Lower the vehicle.
