Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

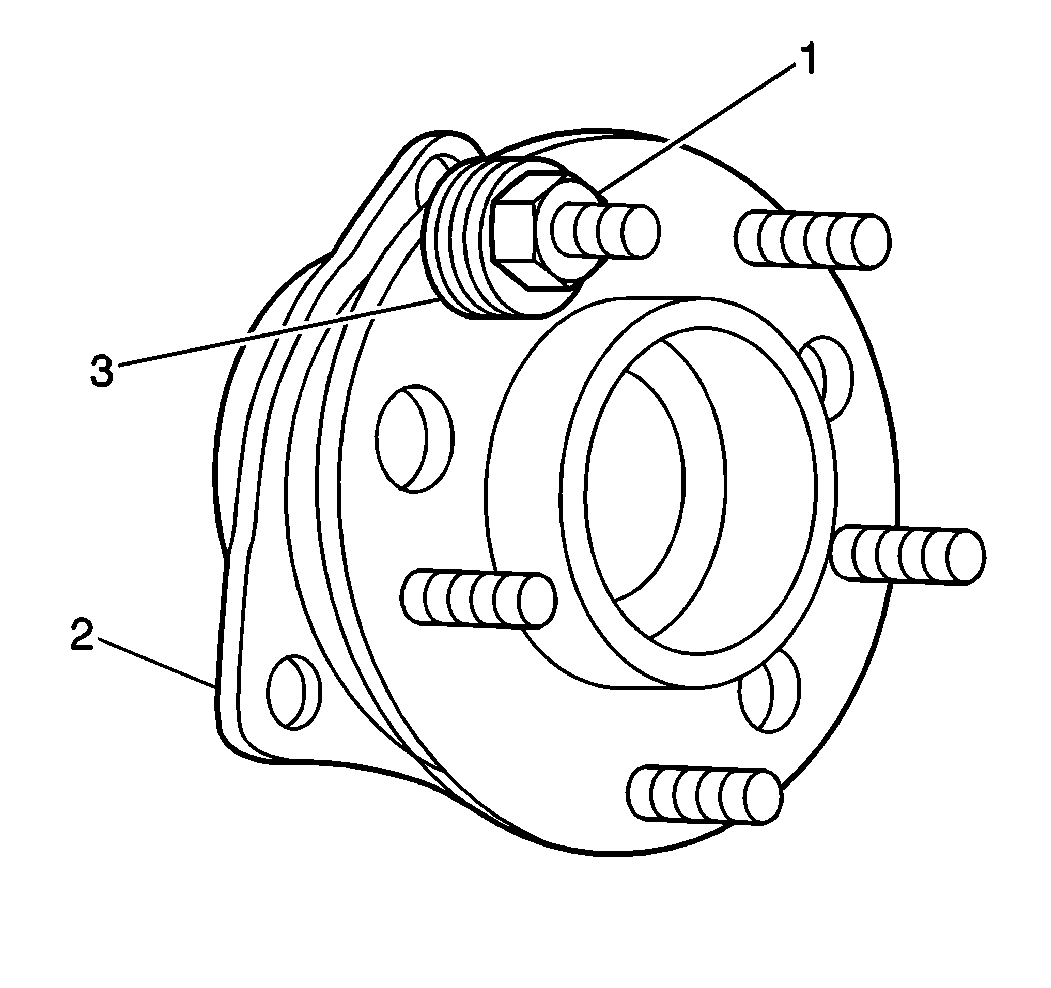

    Fig 1: Installing Wheel Stud
    GM165253Courtesy of GENERAL MOTORS CORP.
  1. Install a replacement stud in the wheel hub.
  2. Add enough washers (3) in order to draw the stud into the hub (2).
  3. Install the wheel nut (1) with the flat side against the washers (3).
    4. IMPORTANT: Fully seat the wheel stud against the hub flange (2).
  4. Tighten the wheel nut (1) until the wheel stud is fully seated against the hub flange.
  5. Back off the wheel nut (1) and remove the washers (3).
  6. Install the brake rotor. Refer to Brake Rotor Replacement - Front (RPO J65, JL9) in Disc Brakes.
  7. Install the brake caliper and bracket. Refer to Brake Caliper Replacement - Front (RPO J65, JL9) in Disc Brakes.
  8. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  9. Lower the vehicle.
