Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the horn to the front frame rail extension; insert the horn anti-rotation tab into the slot on the frame rail extension.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the horn bracket bolt.

    Tighten:  Tighten the bolt to 15 N.m (11 lb ft).

    3. Fig 1: View Of Horn & Front Frame Rail Extension
    GM324755Courtesy of GENERAL MOTORS CORP.
  3. Connect the horn electrical connector.

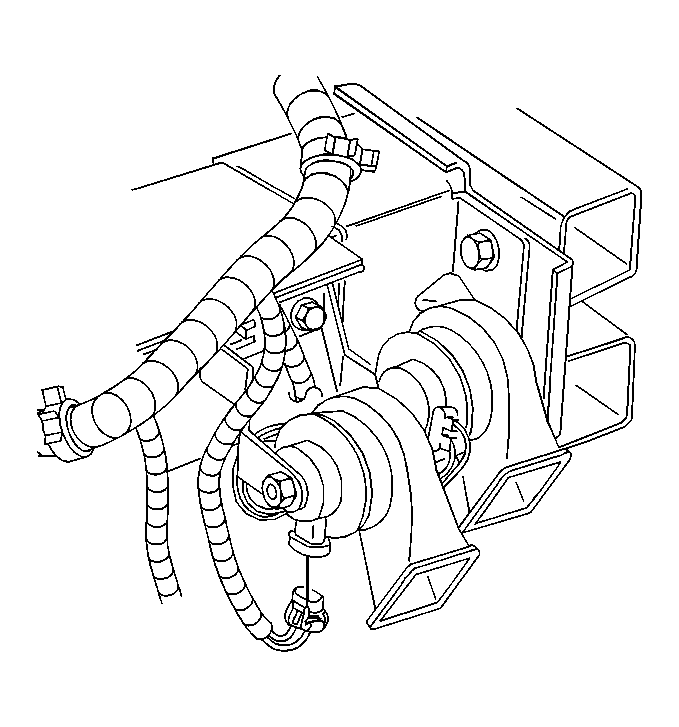

    4. Fig 2: View Of Horn Electrical Connector
    GM182475Courtesy of GENERAL MOTORS CORP.
  4. Install the RH headlamp assembly. Refer to Headlamp Assembly or Headlamp Bulb Replacement in Lighting Systems.
  5. Close the hood.
