Power Distribution Schematics

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

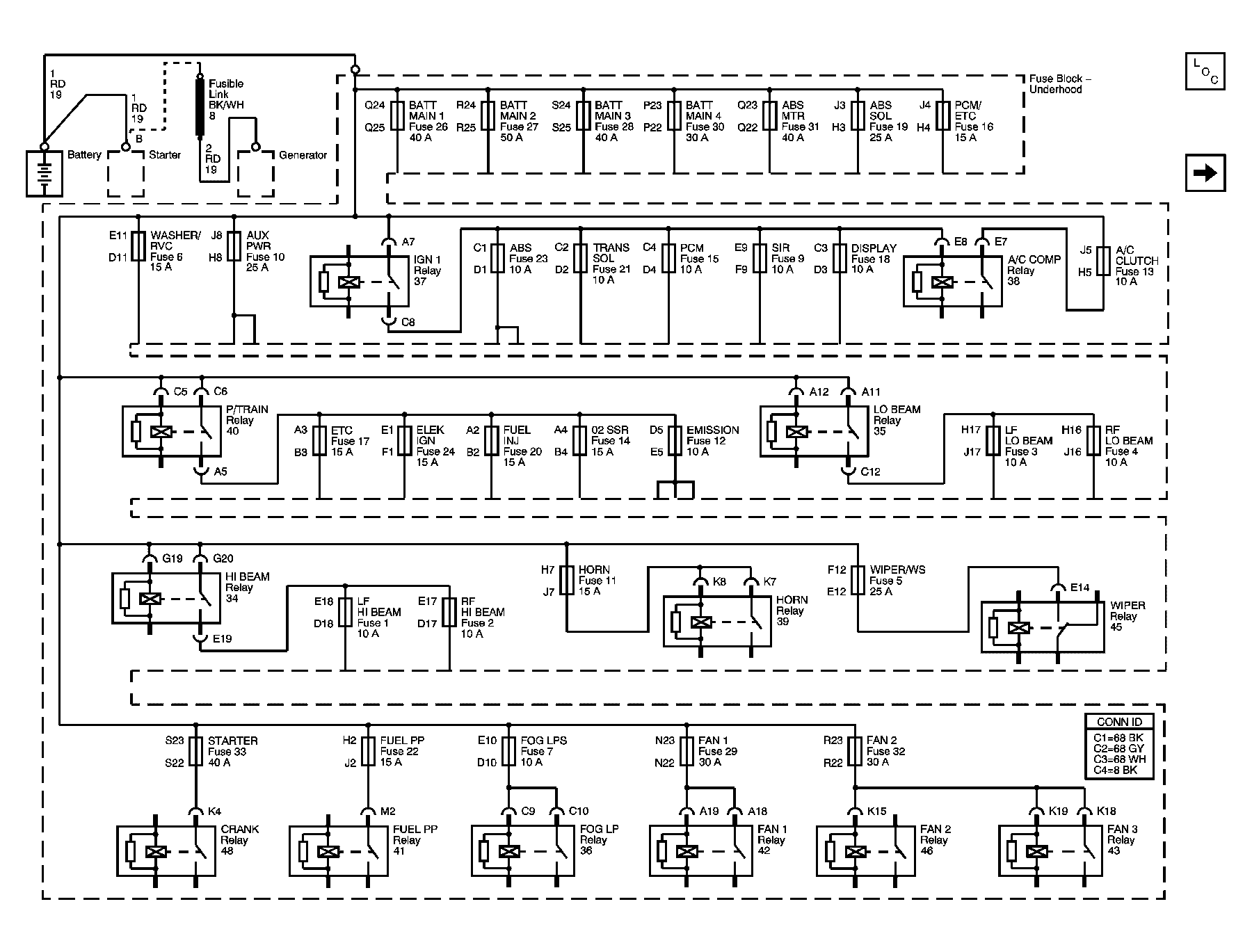

Fig 1: Fuse Block - Underhood Bussing

Courtesy of GENERAL MOTORS CORP.

Fig 2: Ignition Switch

Courtesy of GENERAL MOTORS CORP.

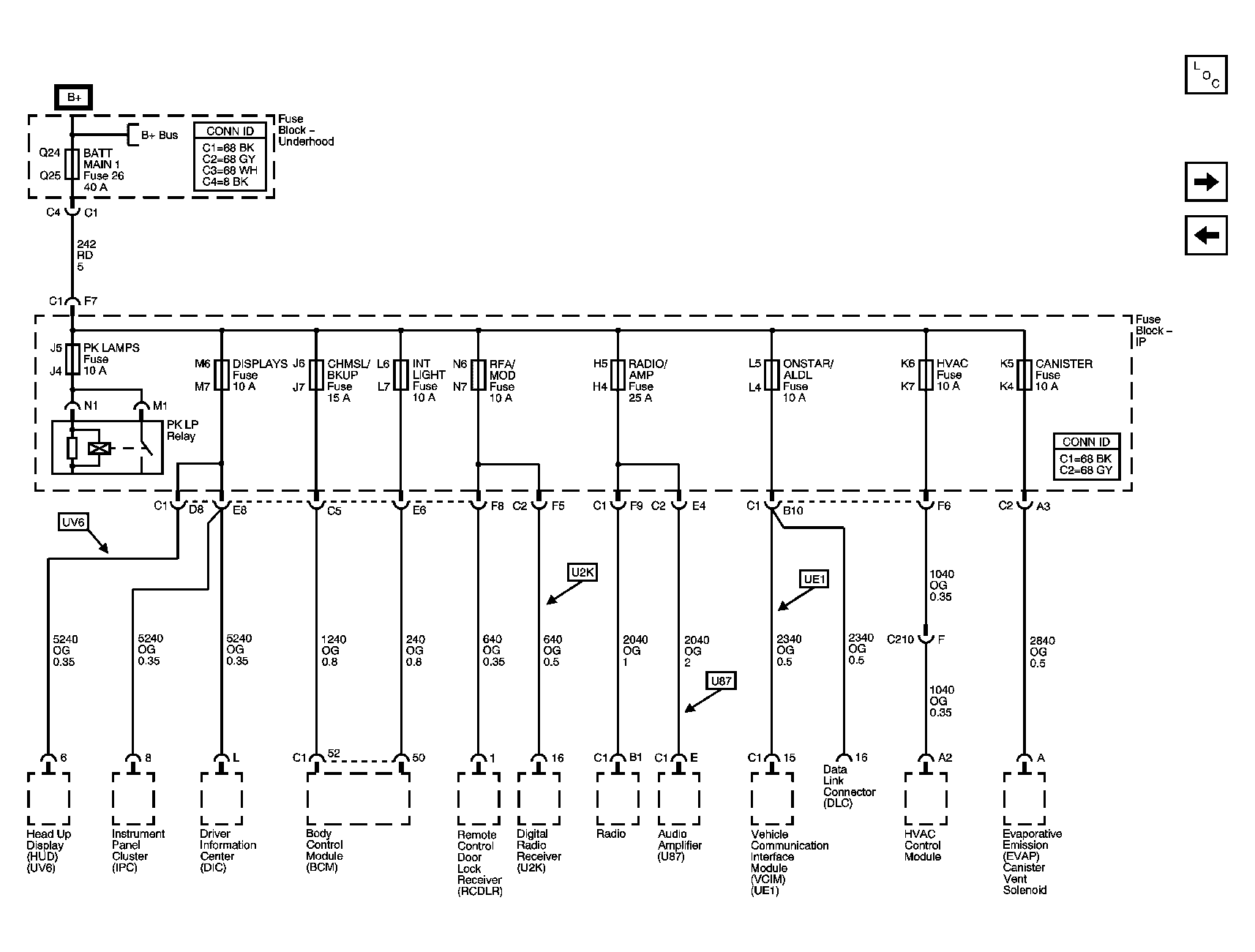

Fig 3: BATT MAIN 1, PK LAMPS, DISPLAYS, CHMSL/BKUP, INT LIGHT, RFA/MOD, RADIO/AMP, ONSTAR/ALDL, HVAC, CANISTER Fuses, and PK LP Relay

Courtesy of GENERAL MOTORS CORP.

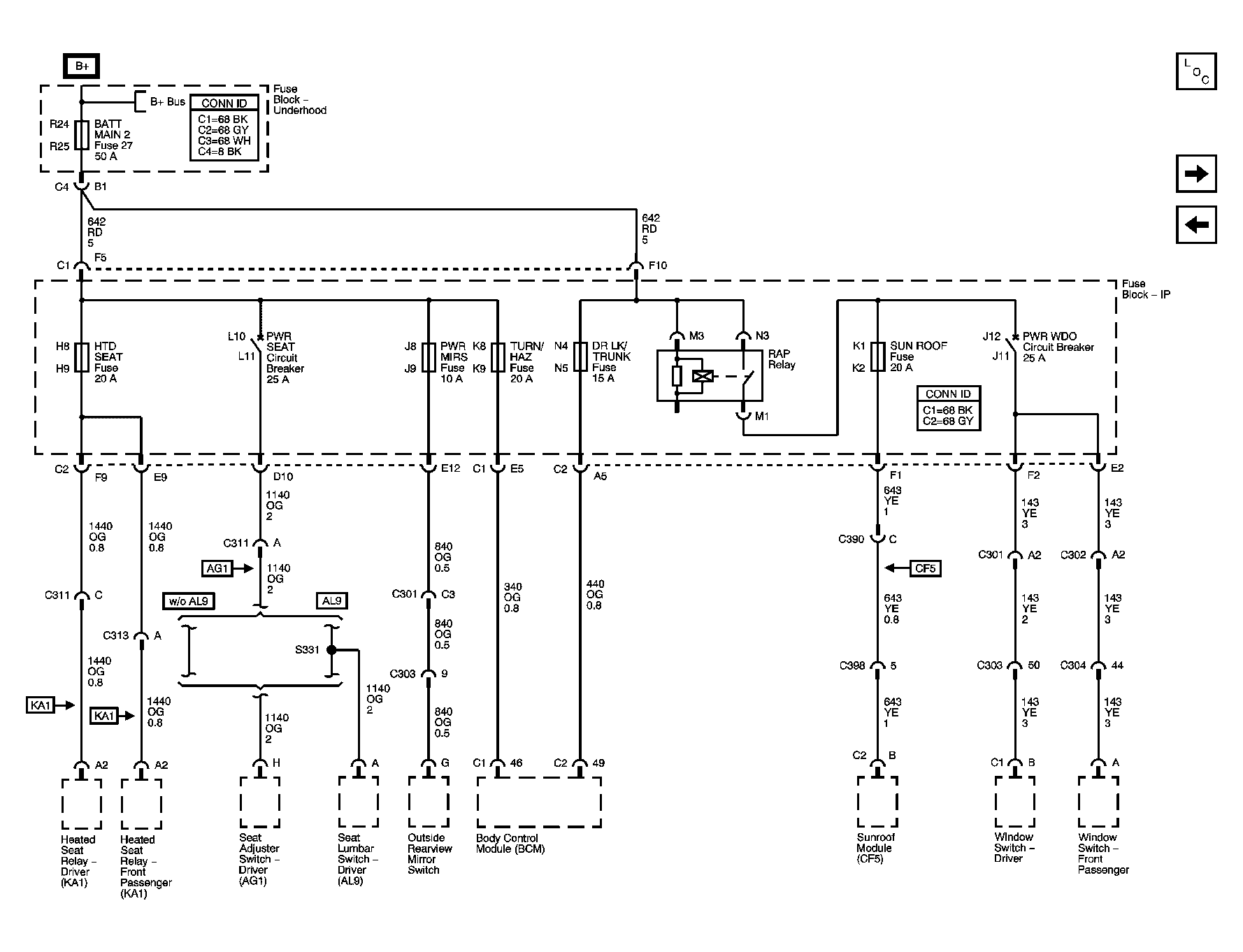

Fig 4: BATT MAIN 2, HTD SEAT, PWR MIRS, TURN/HAZ, DR LK/TRUNK, SUNROOF Fuses, PWR SEAT, PWR WDO Circuit Breakers, and RAP Relay

Courtesy of GENERAL MOTORS CORP.

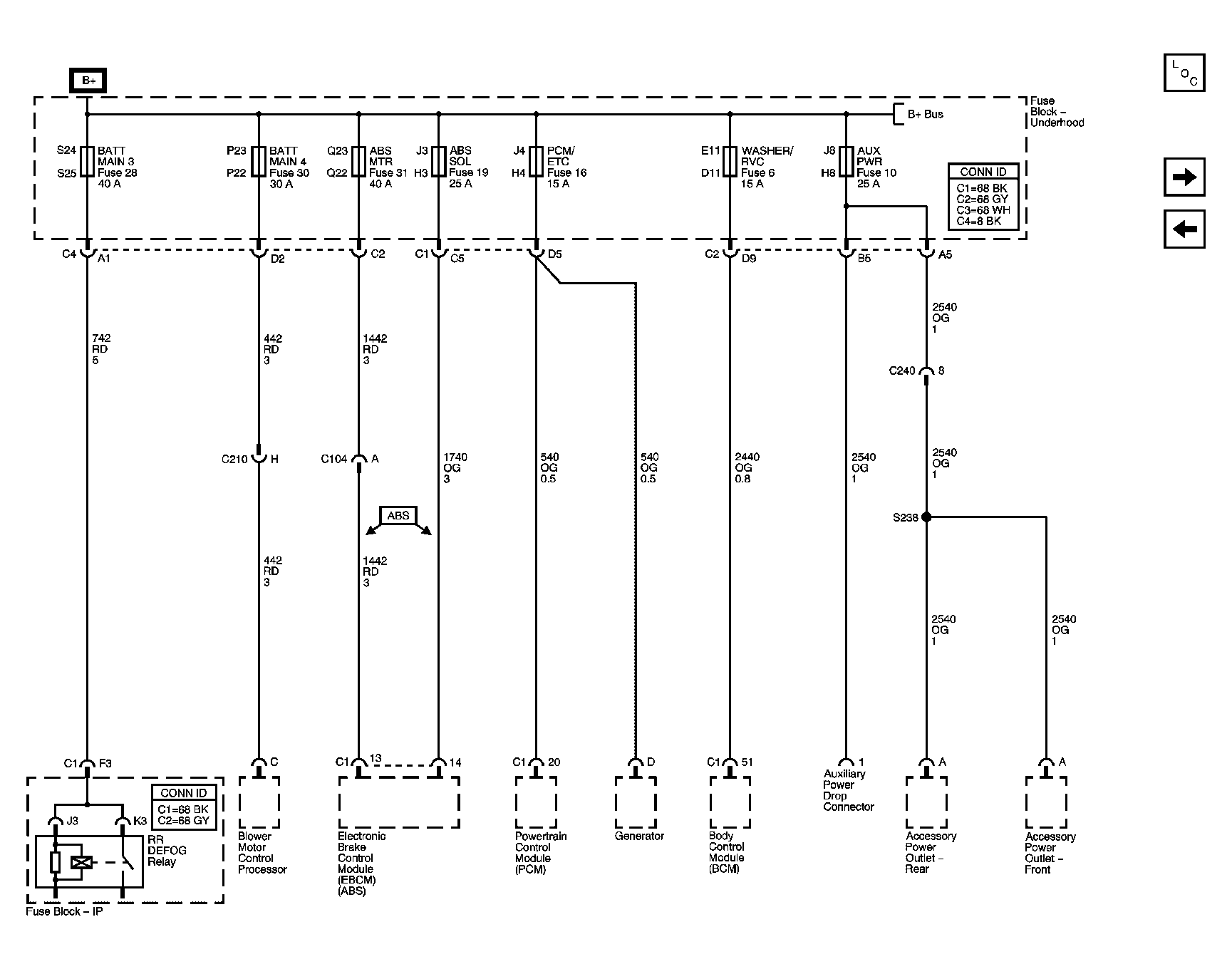

Fig 5: BATT MAIN 3, BATT MAIN 4, ABS MTR, ABS SOL, PCM/ETC, WASHER RVC, and AUX PWR Fuses

Courtesy of GENERAL MOTORS CORP.

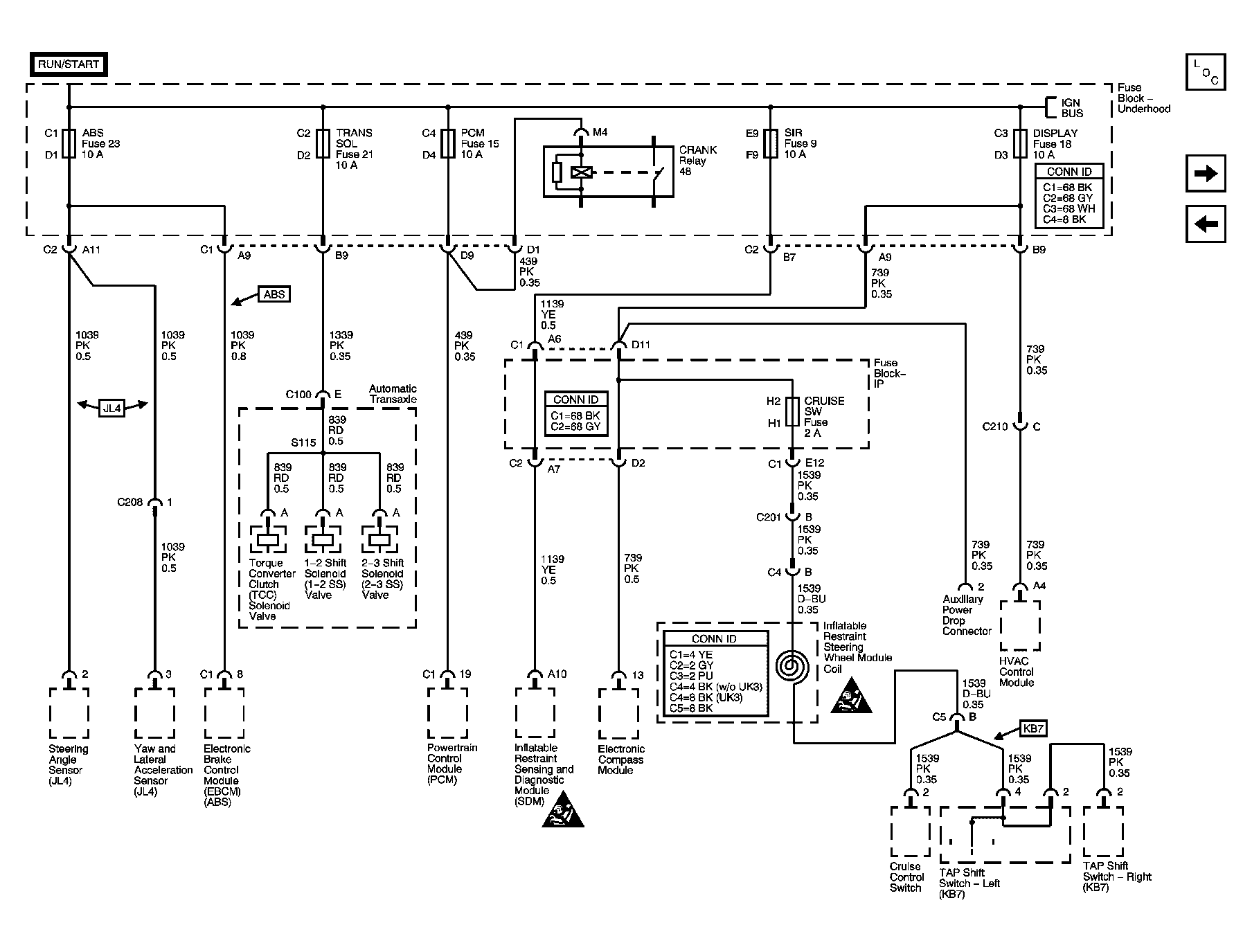

Fig 6: ABS, TRANS SOL, PCM, SIR, DISPLAY, CRUISE SW Fuses, and CRANK Relay

Courtesy of GENERAL MOTORS CORP.

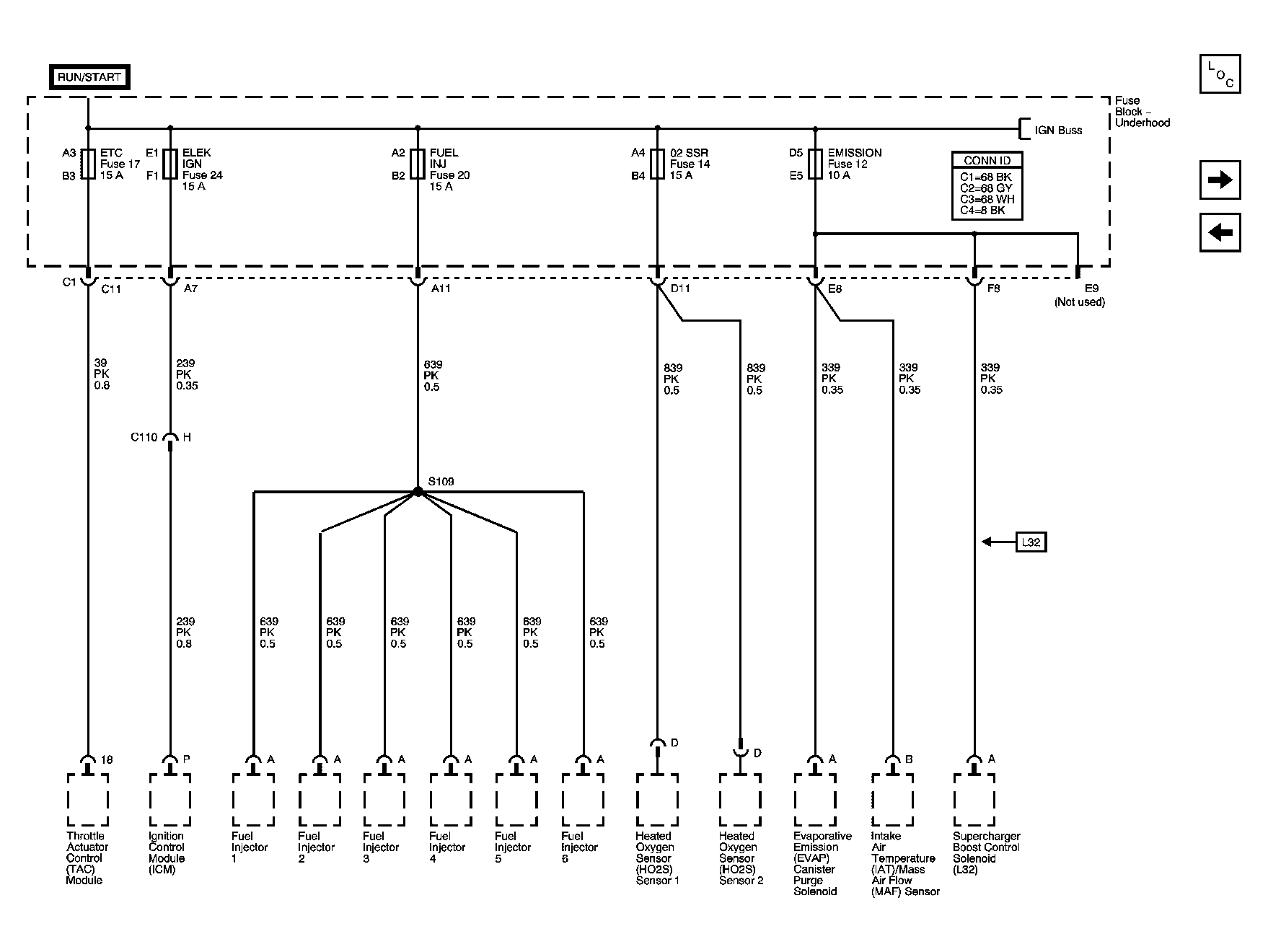

Fig 7: ETC, ELEK IGN, FUEL INJ, 02 SSR, and EMISSION Fuses

Courtesy of GENERAL MOTORS CORP.

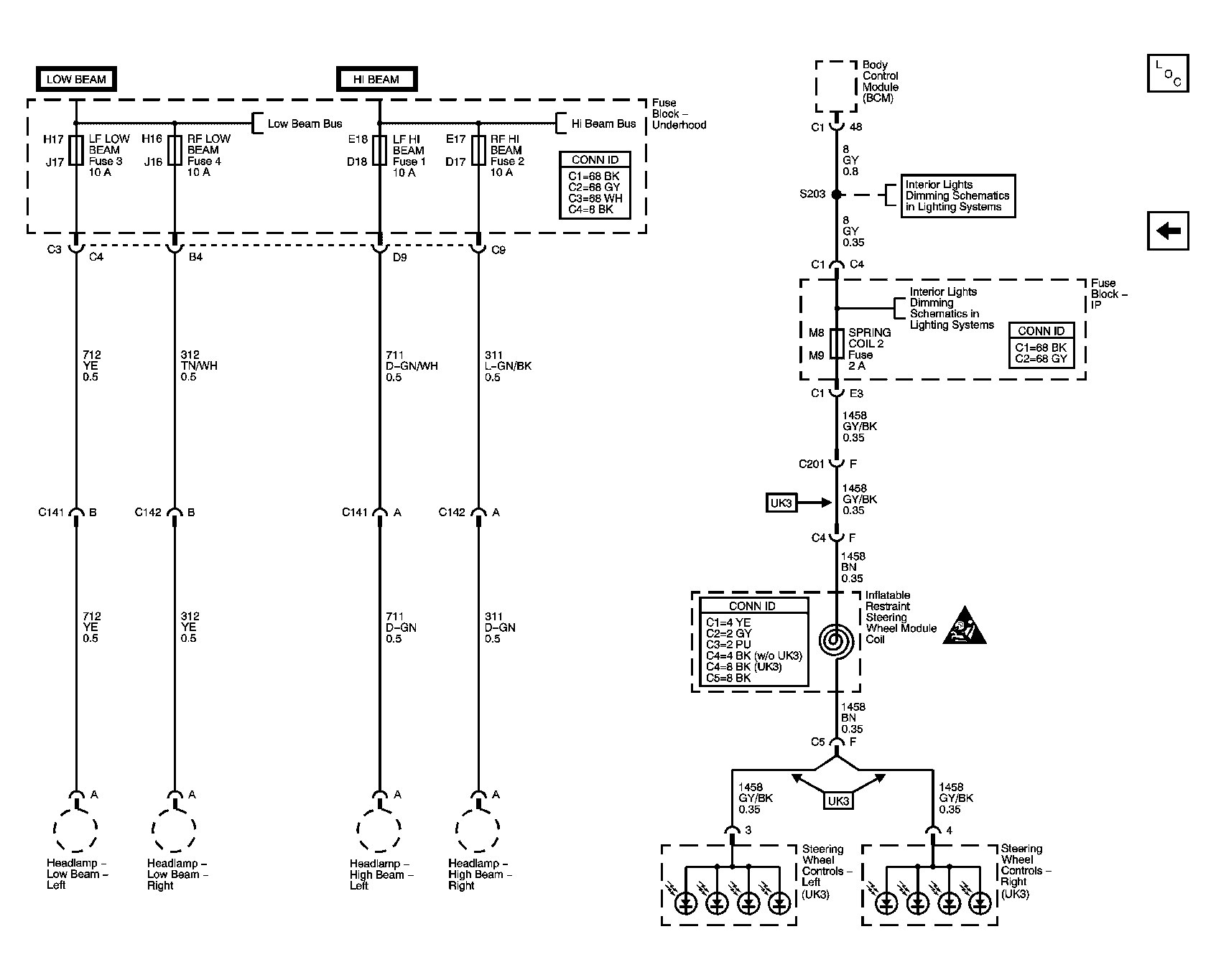

Fig 8: LF LOW BEAM, RF LOW BEAM, LF HI BEAM, RF HI BEAM, and SPRING COIL 2 Fuses

Courtesy of GENERAL MOTORS CORP.
