Ground Distribution Schematics
WARNING:
This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: G100
Courtesy of GENERAL MOTORS CORP.

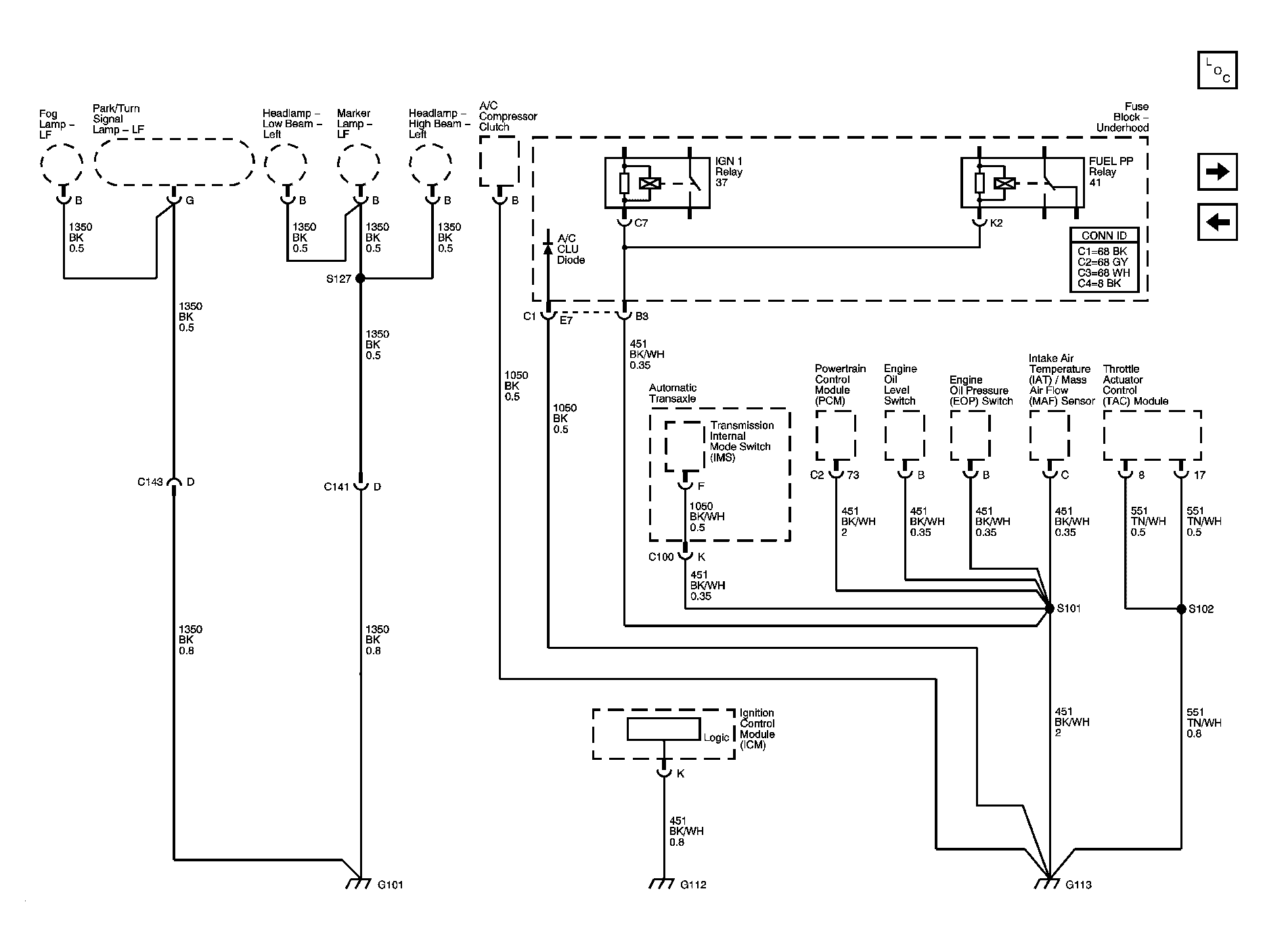

Fig 2: G101, G112, and G113
Courtesy of GENERAL MOTORS CORP.
Fig 3: G102, G115, and G201
Courtesy of GENERAL MOTORS CORP.

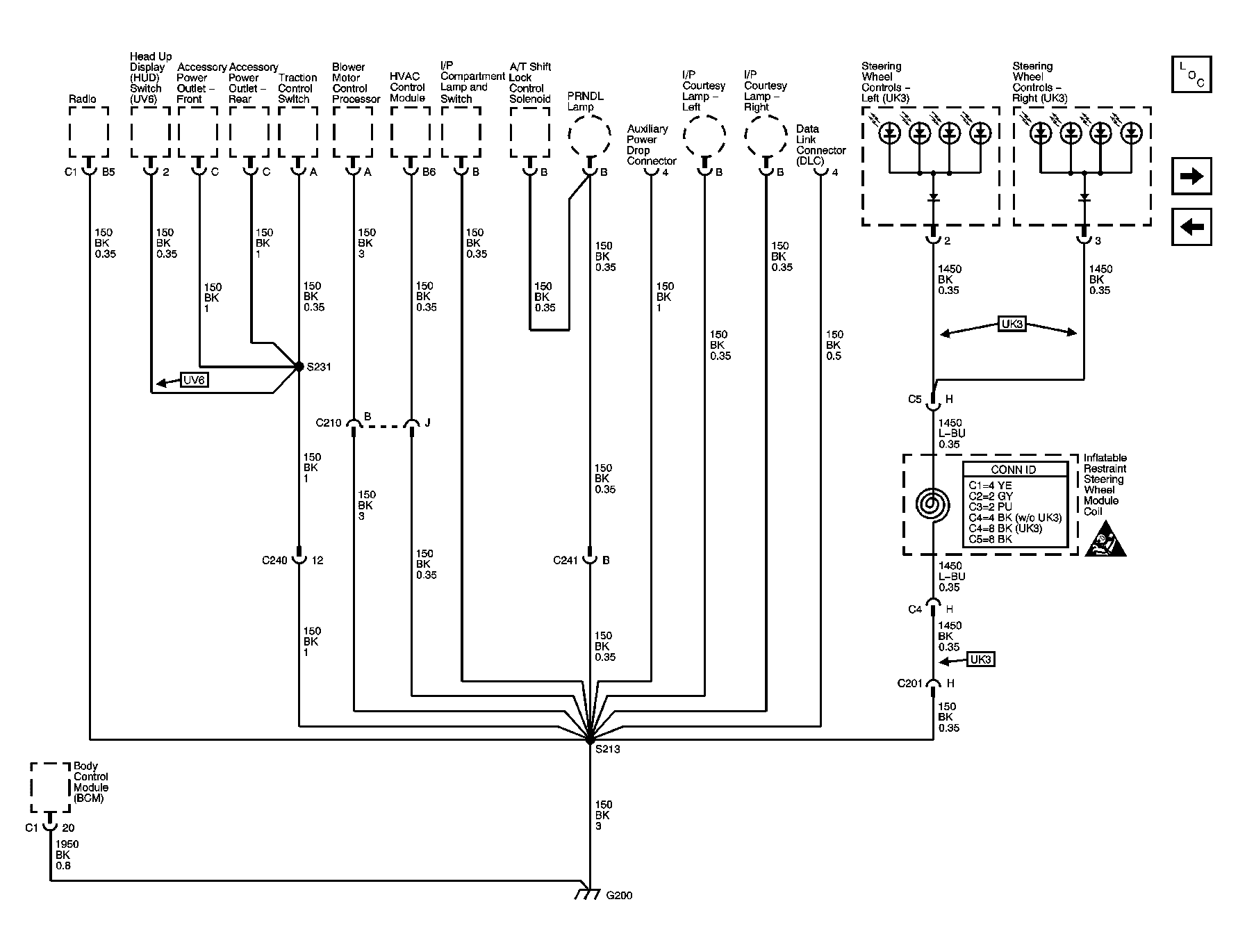

Fig 4: G200
Courtesy of GENERAL MOTORS CORP.

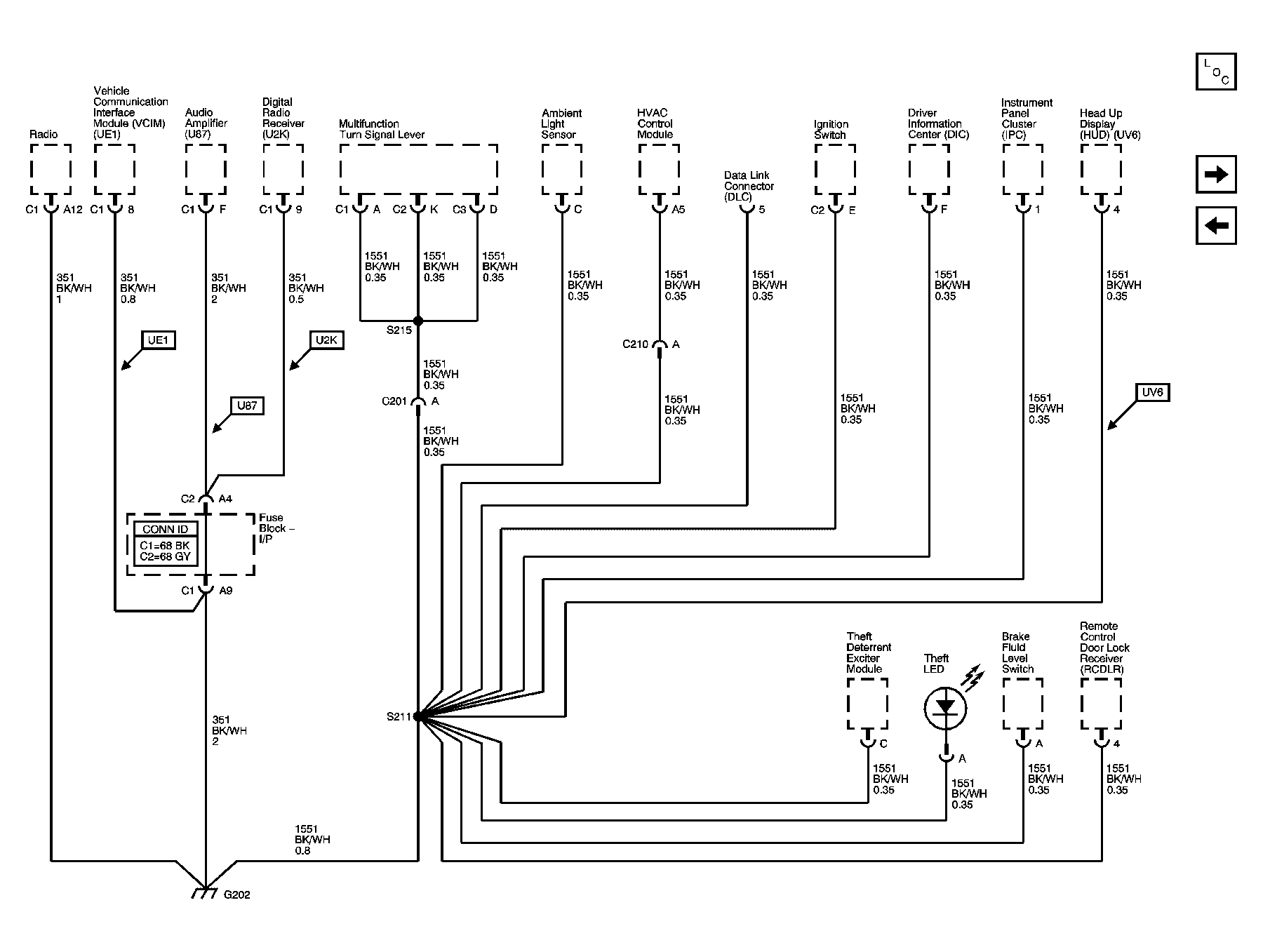

Fig 5: G202
Courtesy of GENERAL MOTORS CORP.

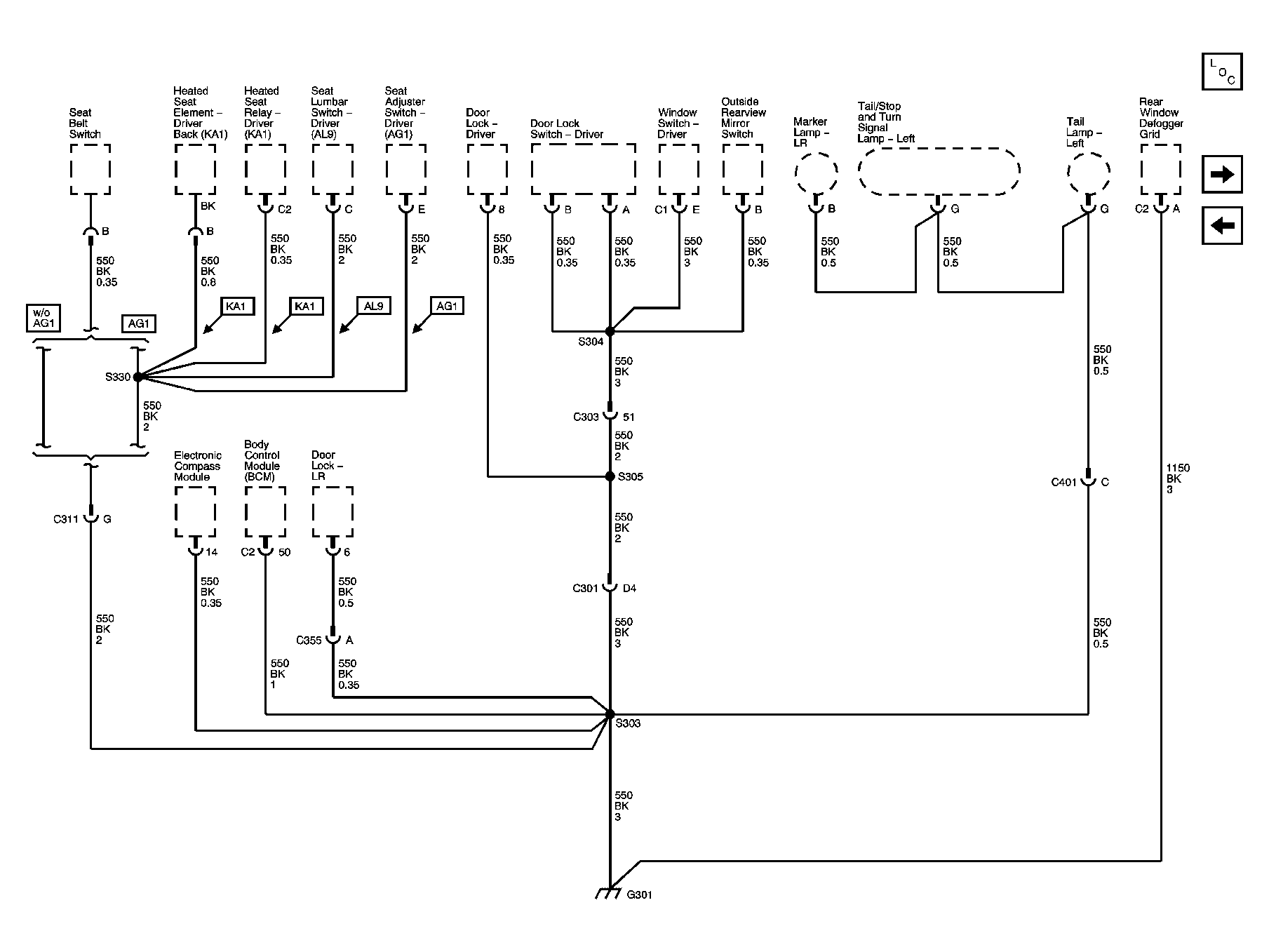

Fig 6: G301
Courtesy of GENERAL MOTORS CORP.

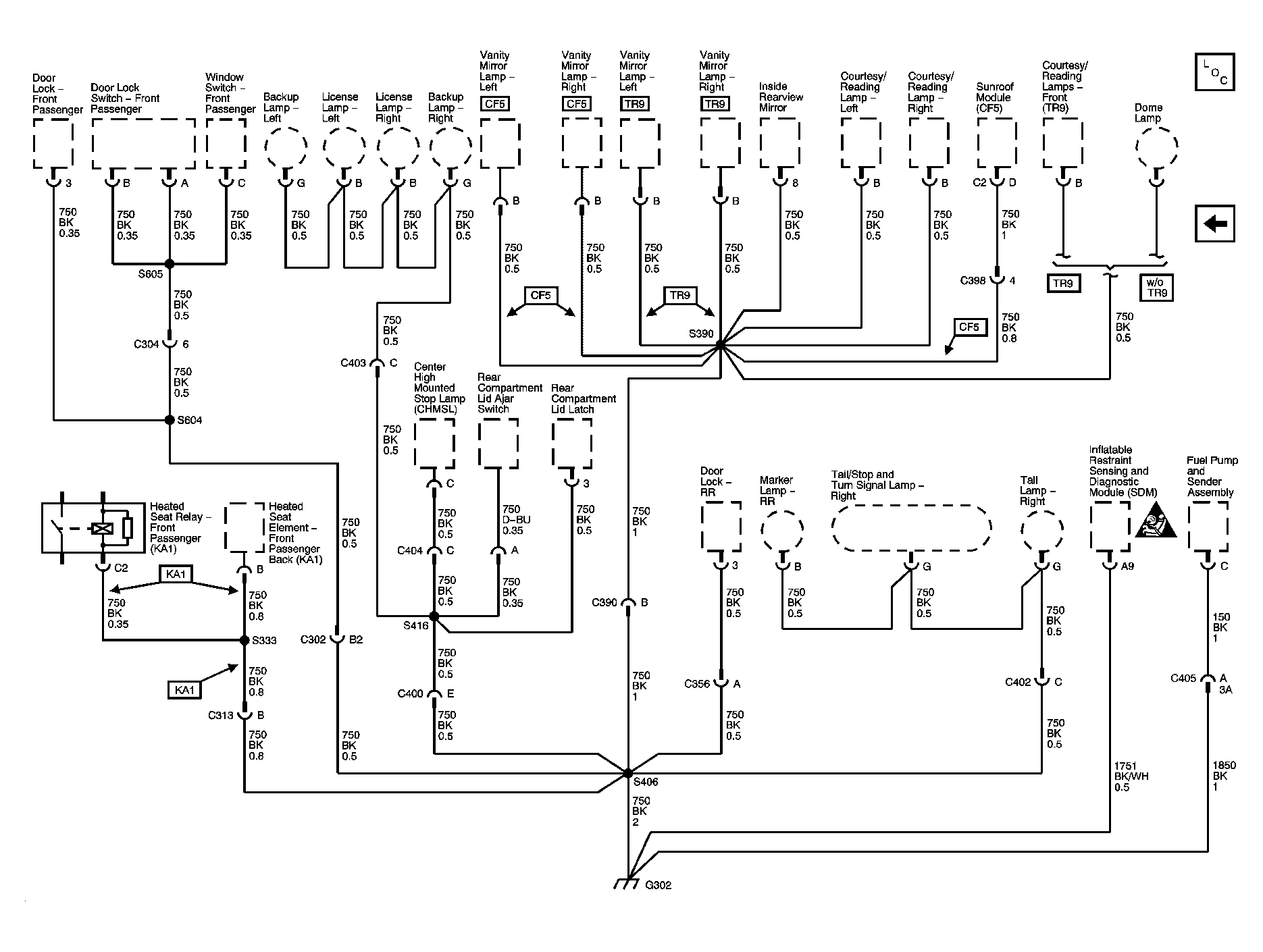

Fig 7: G302
Courtesy of GENERAL MOTORS CORP.
