Inline Harness Connector End Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
C100 Engine Harness to Transmission Terminal Identification Harness

GM876793Courtesy of GENERAL MOTORS CORP.
GM553616Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305235
  • 20-Way F Micro-Pack 100W Series (GY)
 Connector Part Information
  • 15443073
  • 20-Way M Micro-Pack 100W Lock Assist/Seal (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-GN 1222 1-2 Shift Solenoid Valve Control A L-GN 1222 1-2 Shift Solenoid Valve Control
B YE/BK 1223 2-3 Shift Solenoid Valve Control B YE 1223 2-3 Shift Solenoid Valve Control
C RD/BK 1228 PC Solenoid Valve High Control C PU 1228 PC Solenoid Valve High Control
D L-BU/WH 1229 PC Solenoid Valve Low Control D L-BU 1229 PC Solenoid Valve Low Control
E PK 1339 Ignition 1 Voltage E RD 839 Ignition 1 Voltage
F BK/WH 771 Transmission Range Switch Signal A F RD/BK 771 Transmission Range Switch Signal A
G YE 772 Transmission Range Switch Signal B G D-GN/WH 772 Transmission Range Switch Signal B
H GY 773 Transmission Range Switch Signal C H YE/BK 773 Transmission Range Switch Signal C
J WH 776 Transmission Range Switch Signal P J GY/WH 776 Transmission Range Switch Signal P
K BK/WH 451 Ground K BK/WH 1050 Ground
L YE/BK 1227 TFT Sensor Signal L BN 1227 TFT Sensor Signal
M BK 452 Low Reference M GY 452 Low Reference
N-R - - Not Used N-R - - Not Used
S RD/BK 1230 AT ISS High Signal S BK 1230 AT ISS High Signal
T TN/BK 422 TCC Solenoid Valve Control T TN 418 TCC Solenoid Valve Control
U WH 1804 TCC Release Switch Signal U WH 1804 TCC Release Switch Signal
V D-BU/WH 1231 AT ISS Low Signal V D-GN 1231 AT ISS Low Signal
W - - Not Used W - - Not Used
C101 Engine Harness to I/P Terminal Identification Harness

GM655729Courtesy of GENERAL MOTORS CORP.
GM768083Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186609
  • 20-Way F Micro-Pack 100W (GY)
 Connector Part Information
  • 12160542
  • 20-Way M Micro-Pack 100W Series Sealed (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BN/WH 419 MIL Control A BN/WH 419 MIL Control
B D-GN 1049 PCM Class 2 Serial Data B D-GN 1049 PCM Class 2 Serial Data
C RD 885 Left Rear Wheel Speed Sensor Low Reference C RD 885 Left Rear Wheel Speed Sensor Low Reference
D BK 884 Left Rear Wheel Speed Sensor Signal D BK 884 Left Rear Wheel Speed Sensor Signal
E WH 883 Right Rear Wheel Speed Sensor Low Reference E WH 883 Right Rear Wheel Speed Sensor Low Reference
F TN/WH 2500 High Speed GMLAN Serial Data Bus (+) (JL4) F TN/WH 2500 High Speed GMLAN Serial Data Bus (+) (JL4)
G TN 2501 High Speed GMLAN Serial Data Bus (-) (JL4) G TN 2501 High Speed GMLAN Serial Data Bus (-) (JL4)
H GY/BK 1798 Ground (JL4) H GY/BK 1798 Ground (JL4)
J D-BU 716 Yaw Rate Sensor Signal (JL4) J D-BU 716 Yaw Rate Sensor Signal (JL4)
K GY 930 5 Volt Reference (JL4) K GY 930 5 Volt Reference (JL4)
L BN 882 Right Rear Wheel Speed Sensor Signal (JL9) L BN 882 Right Rear Wheel Speed Sensor Signal (JL9)
M PU 1272 Low Reference M PU 1272 Low Reference
N TN 1274 5 Volt Reference N TN 1274 5 Volt Reference
P L-BU 1162 APP Sensor 2 Signal P L-BU 1162 APP Sensor 2 Signal
R BN 1271 Low Reference R BN 1271 Low Reference
S WH/BK 1164 5 Volt Reference S WH/BK 1164 5 Volt Reference
T D-BU 1161 APP Sensor 1 Signal T D-BU 1161 APP Sensor 1 Signal
U L-BU 1122 ABS/TCS Class 2 Serial Data U L-BU 1122 ABS/TCS Class 2 Serial Data
V BN/WH 2086 Yaw Rate Sensor Test Control (JL4) V BN/WH 2086 Yaw Rate Sensor Test Control (JL4)
W L-BU 715 Lateral Accelerometer Signal (JL4) W L-BU 715 Lateral Accelerometer Signal (JL4)
C104 I/P Harness to Engine Terminal Identification Harness

GM684792Courtesy of GENERAL MOTORS CORP.
GM655682Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052613
  • 2-Way F 480 Series Sealed (BK)
 Connector Part Information
  • 12065863
  • 2-Way M 480 Series Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A RD 1442 Battery Positive Voltage A RD 1442 Battery Positive Voltage
B - - Not Used B - - Not Used
C110 Engine Harness to Ignition Control Module (ICM) Terminal Identification Wiring Harness

GM524196Courtesy of GENERAL MOTORS CORP.
GM365940Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047937
  • 8-Way F Metri-Pack 150 Series, Sealed (BK)
 Connector Part Information
  • 12047931
  • 8-Way M Metri-Pack 150 Series, Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WH 423 IC Timing Control A WH 423 IC Timing Control
B TN/BK 424 IC Timing Signal B TN/BK 424 IC Timing Signal
C L-BU/BK 647 Medium Resolution Engine Speed Signal C L-BU/BK 647 Medium Resolution Engine Speed Signal
D PU/WH 430 Low Resolution Engine Speed Signal D PU/WH 430 Low Resolution Engine Speed Signal
E - - Not Used E WH 121 Engine Speed Signal
F BK 630 Camshaft Position Signal F BK 630 Camshaft Position Signal
G RD/BK 453 Low Reference G RD/BK 453 Low Reference
H PK 239 Ignition 1 Voltage H PK 239 Ignition 1 Voltage

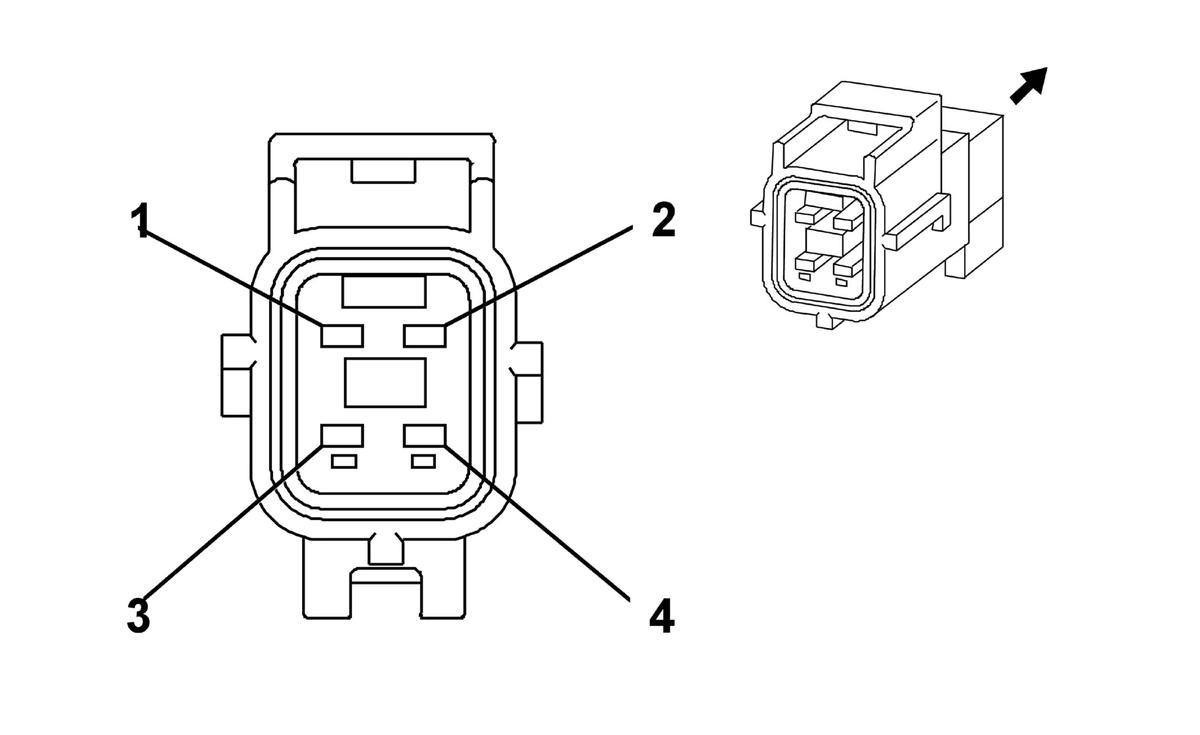

C120 Forward Lamp Harness to I/P Terminal Identification Harness

GM1243624Courtesy of GENERAL MOTORS CORP.
GM1243485Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 184366-1
  • 4-Way F AMP Sealed Sensor Connector System (BK)
 Connector Part Information
  • 184346-1
  • 4-Way M AMP Sealed Sensor Connector System (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 L-GN/BK 735 Ambient Air Temperature Sensor Signal 1 L-GN/BK 735 Ambient Air Temperature Sensor Signal
2 YE 61 Low Reference 2 YE 61 Low Reference
3 GY 2260 Front End Sensor - Signal 3 GY 2260 Front End Sensor - Signal
4 YE 2160 Front End Sensor - Voltage 4 YE 2160 Front End Sensor - Voltage

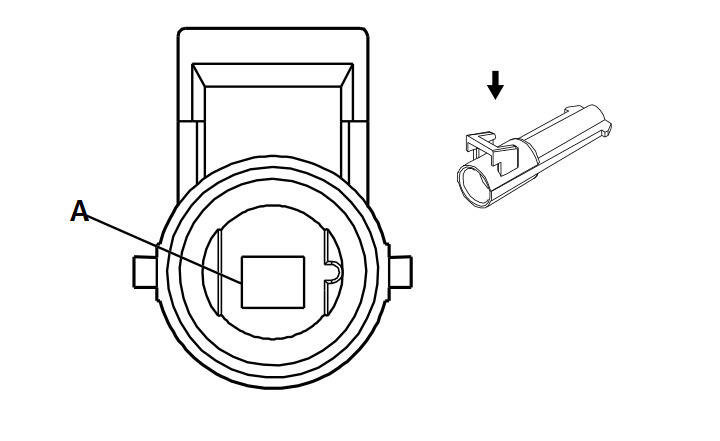

C125 Engine Harness to Knock Sensor Terminal Identification Jumper Harness

GM696940Courtesy of GENERAL MOTORS CORP.
GM696937Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065172
  • 1-Way F Metri-Pack 280 Series, Sealed (BK)
 Connector Part Information
  • 12065171
  • 1-Way M Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-BU 1876 Knock Sensor 2 Signal A D-BU 1876 Knock Sensor 2 Signal
C126 Engine Coolant Temperature (ECT) Terminal Identification Sensor Jumper Harness to Engine Harness

GM537107Courtesy of GENERAL MOTORS CORP.
GM605500Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series, Sealed (GY)
 Connector Part Information
  • 12162343
  • 2-Way M Metri-Pack 150 Series, Sealed (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 410 ECT Sensor Signal A YE 410 ECT Sensor Signal
B YE 2761 Low Reference B BK 2761 Low Reference
C141 Forward Lamp Harness to Left Front Headlamp Terminal Identification Harness

GM646430Courtesy of GENERAL MOTORS CORP.

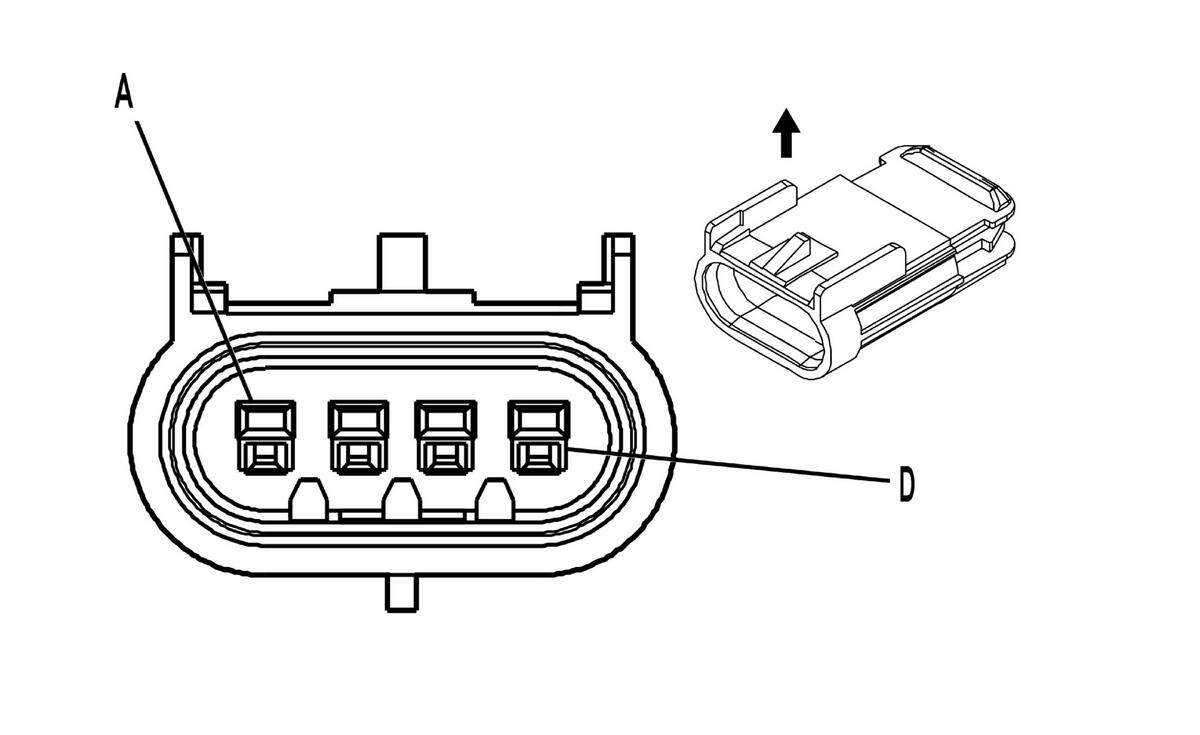

GM806431Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326815
  • 4-Way F GT 150 Sealed 4.0 (BK)
 Connector Part Information
  • 15326820
  • 4-Way M GT 150 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D-GN/WH 711 Left Headlamp High Beam Supply Voltage A D-GN 711 Left Headlamp High Beam Supply Voltage
B YE 712 Left Headlamp Low Beam Supply Voltage B YE 712 Left Headlamp Low Beam Supply Voltage
C BN 9 Park Lamp Supply Voltage C BN 9 Park Lamp Supply Voltage
D BK 1350 Ground D BK 1350 Ground
C142 Forward Lamp Harness to Right Front Headlamp Terminal Identification Harness

GM646430Courtesy of GENERAL MOTORS CORP.
GM806431Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326815
  • 4-Way F GT 150 Sealed 4.0 (BK)
 Connector Part Information
  • 15326820
  • 4-Way M GT 150 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-GN/BK 311 Right Headlamp High Beam Supply Voltage A D-GN 311 Right Headlamp High Beam Supply Voltage
B TN/WH 312 Right Headlamp Low Beam Supply Voltage B YE 312 Right Headlamp Low Beam Supply Voltage
C BN 9 Park Lamp Supply Voltage C BN 9 Park Lamp Supply Voltage
D BK 1250 Ground D BK 1250 Ground
C143 Forward Lamp Harness to Left Front Turn Signal Terminal Identification Harness

GM697046Courtesy of GENERAL MOTORS CORP.
GM73227Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186568
  • 4-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12186271
  • 4-Way M Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-BU 1314 Left Front Turn Signal Lamp Supply Voltage A L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
B BN 9 Park Lamp Supply Voltage B BN 9 Park Lamp Supply Voltage
C PU 34 Fog Lamp Supply Voltage C PU 34 Fog Lamp Supply Voltage
D BK 1350 Ground D BK 1350 Ground
C144 Forward Lamp Harness to Right Front Turn Signal Terminal Identification Harness

GM697046Courtesy of GENERAL MOTORS CORP.
GM73227Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186568
  • 4-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12186271
  • 4-Way M Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-BU 1315 Right Front Turn Signal Lamp Supply Voltage A D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage
B BN 9 Park Lamp Supply Voltage B BN 9 Park Lamp Supply Voltage
C PU 34 Fog Lamp Supply Voltage C PU 34 Fog Lamp Supply Voltage
D BK 1250 Ground D BK 1250 Ground
C200 Body Harness to I/P Terminal Identification Harness

GM1243490Courtesy of GENERAL MOTORS CORP.
GM1243496Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 174952-1
  • 20-Way F AMP Mult-lock 070 Series (WH)
 Connector Part Information
  • 174936-1
  • 20-Way M AMP Multi-lock 070 Series (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BN 882 Right Rear Wheel Speed Sensor Signal 1 BN 882 Right Rear Wheel Speed Sensor Signal
2 BK 884 Left Rear Wheel Speed Sensor Signal 2 BK 884 Left Rear Wheel Speed Sensor Signal
3 - - Not Used 3 - - Not Used
4 GY 2260 Front End Sensor - Signal 4 GY 2260 Front End Sensor - Signal
5 YE 2160 Front End Sensor - Voltage 5 YE 2160 Front End Sensor - Voltage
6 GY 655 Cellular Microphone Signal (UE1) 6 GY 655 Cellular Microphone Signal (UE1)
7 BARE 1705 Drain Wire (UE1) 7 BARE 1705 Drain Wire (UE1)
8 - - Not Used 8 - - Not Used
9 RD 885 Left Rear Wheel Speed Sensor Low Reference 9 RD 885 Left Rear Wheel Speed Sensor Low Reference
10 WH 883 Right Rear Wheel Speed Sensor Low Reference 10 WH 883 Right Rear Wheel Speed Sensor Low Reference
11 D-GN/WH 2514 Keypad Signal (UE1) 11 D-GN/WH 2514 Keypad Signal (UE1)
12 L-GN/BK 2515 Keypad Supply Voltage (UE1) 12 L-GN/BK 2515 Keypad Supply Voltage (UE1)
13 YE/BK 2516 Keypad Green LED Signal (UE1) 13 YE/BK 2516 Keypad Green LED Signal (UE1)
14 BN/WH 2517 Keypad Red LED Signal (UE1) 14 BN/WH 2517 Keypad Red LED Signal (UE1)
15-16 - - Not Used 15-16 - - Not Used
17 BARE 814 Drain Wire (U2K) 17 BARE 814 Drain Wire (U2K)
18 BN/WH 367 Left Audio Signal (+) (U2K) 18 BN/WH 367 Left Audio Signal (+) (U2K)
19 D-GN/WH 368 Right Audio Signal (+) (U2K) 19 D-GN/WH 368 Right Audio Signal (+) (U2K)
20 BK/WH 372 Audio Common (U2K) 20 BK/WH 372 Audio Common (U2K)

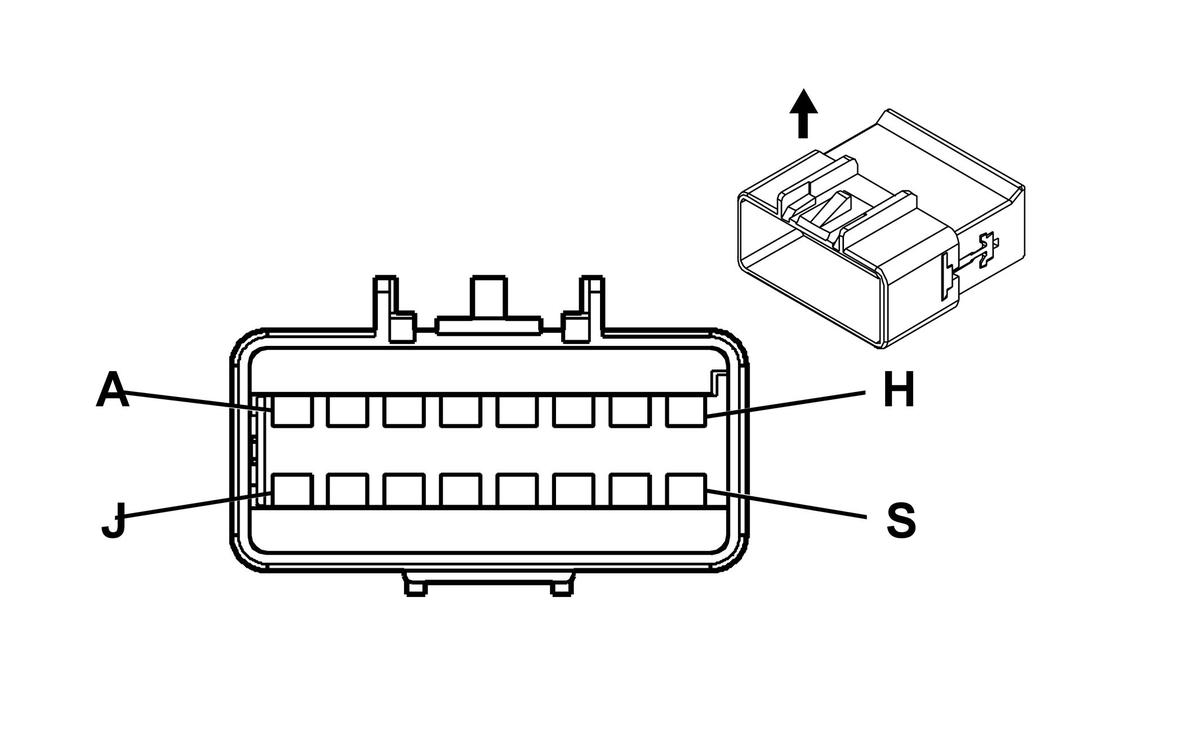

C201 Steering Column Harness to I/P Terminal Identification Harness

GM646377Courtesy of GENERAL MOTORS CORP.
GM800518Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15332177
  • 16-Way F GT 150 Series (BK)
 Connector Part Information
  • 15332182
  • 16-Way M GT 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK/WH 1551 Ground A BK/WH 1551 Ground
B PK 1539 Ignition 1 Voltage B PK 1539 Ignition 1 Voltage
C GY 1884 Cruise Control Set/Coast and Resume/Accelerate Switch Signal C GY 1884 Cruise Control Set/Coast and Resume/Accelerate Switch Signal
D - - Not Used D - - Not Used
E PU 1375 Remote Radio Control Supply Voltage (UK3) E PU 1375 Remote Radio Control Supply Voltage (UK3)
F GY/BK 1458 Instrument Panel Lamp Supply Voltage (UK3) F GY/BK 1458 Instrument Panel Lamp Supply Voltage (UK3)
G D-BU 1796 Steering Wheel Controls Signal (UK3) G D-BU 1796 Steering Wheel Controls Signal (UK3)
H BK 1450 Ground (UK3) H BK 150 Ground
J - - Not Used J - - Not Used
K YE 1996 Remote Shift Selector Signal (KB7) K YE 1996 Remote Shift Selector Signal (KB7)
L-S - - Not Used L-S - - Not Used
C208 (JL4) I/P Harness to Body Terminal Identification Harness

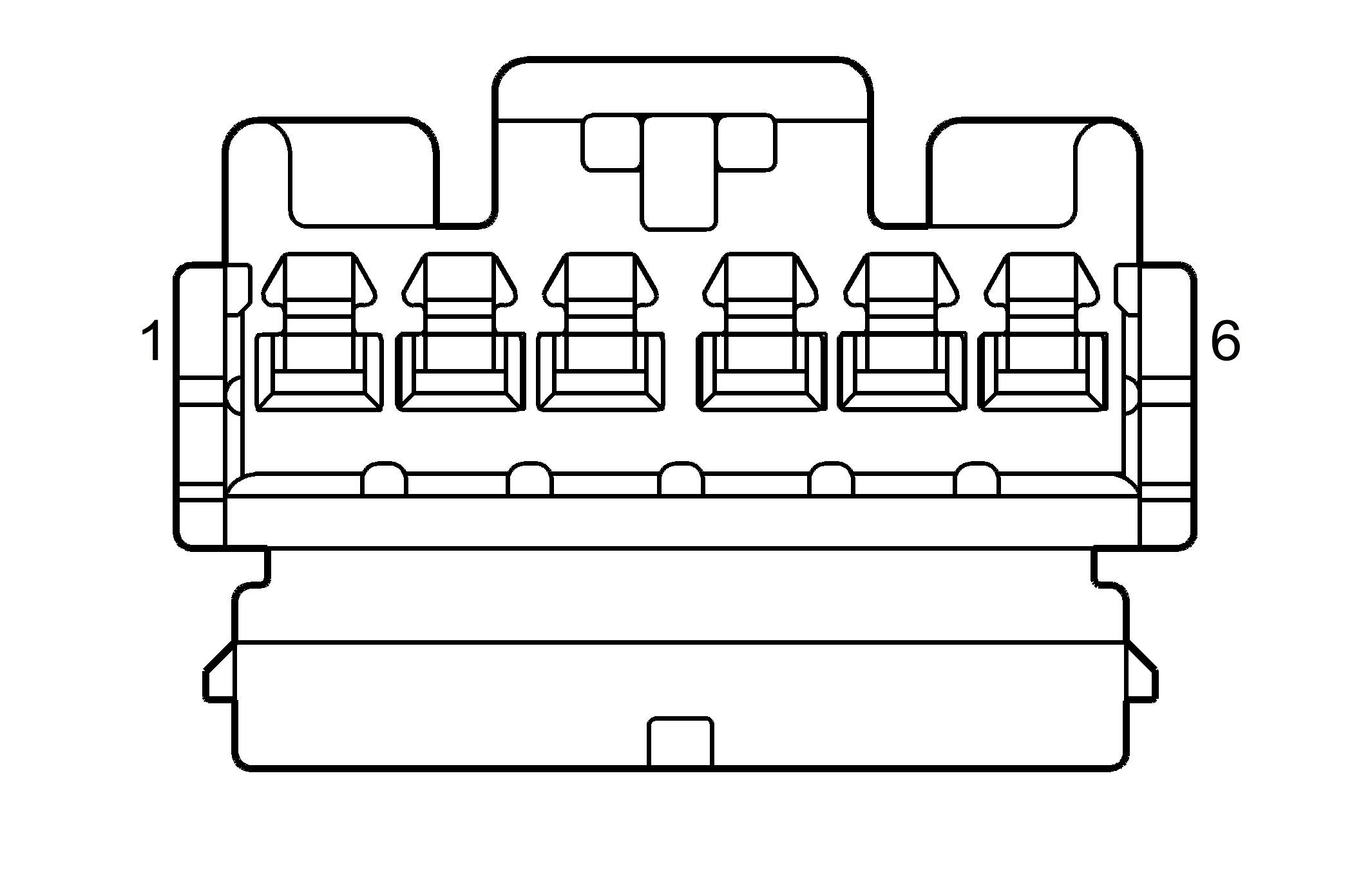

GM872570Courtesy of GENERAL MOTORS CORP.
GM894388Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 174923-2
  • 6-Way F Multi-Lock 070 Series (BK)
 Connector Part Information
  • 174930-2
  • 6-Way M Multi-Lock 070 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PK 1039 Ignition 1 Voltage 1 PK 1039 Ignition 1 Voltage
2 GY/BK 1798 Ground 2 GY/BK 1798 Ground
3 D-BU 716 Yaw Rate Sensor Signal 3 D-BU 716 Yaw Rate Sensor Signal
4 GY 930 5 Volt Reference 4 GY 930 5 Volt Reference
5 BN/WH 2086 Yaw Rate Sensor Test Control 5 BN/WH 2086 Yaw Rate Sensor Test Control
6 L-BU 715 Lateral Accelerometer Signal 6 L-BU 715 Lateral Accelerometer Signal
C210 HVAC Harness to I/P Terminal Identification Harness

GM476149Courtesy of GENERAL MOTORS CORP.

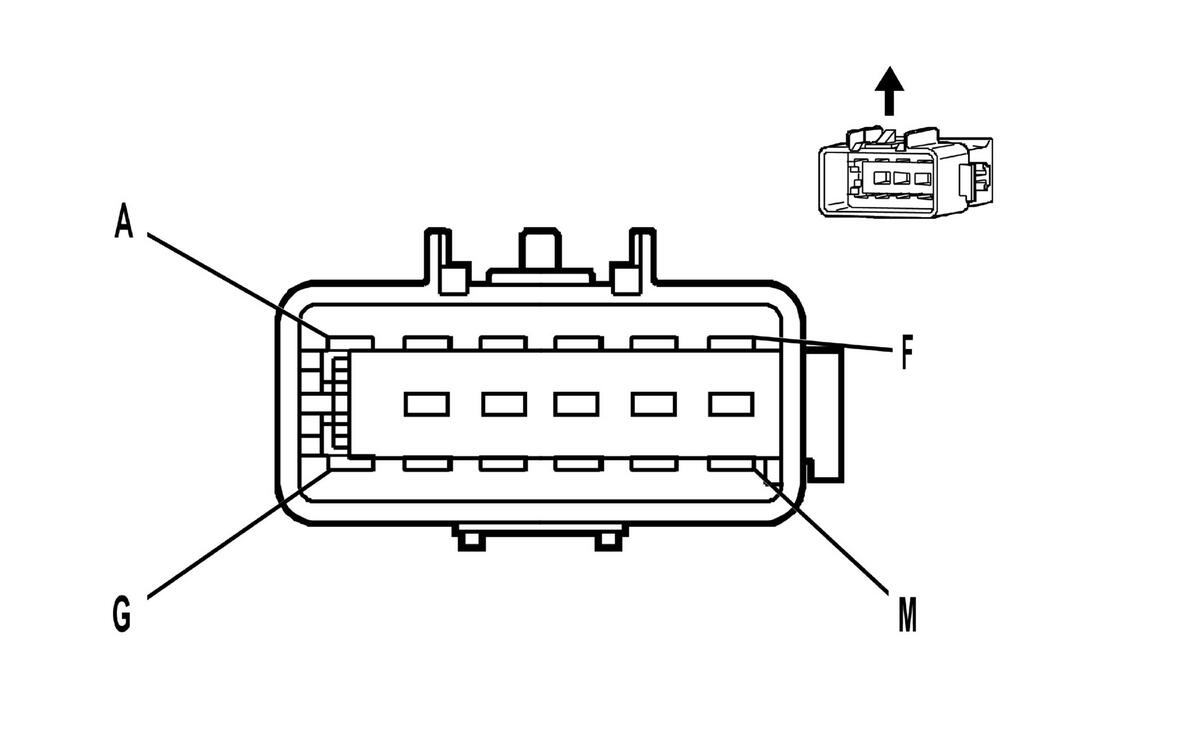

GM847281Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326110
  • 12-Way F 280 GT Series (BK)
 Connector Part Information
  • 15326942
  • 12-Way M GT 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK/WH 1551 Ground A BK/WH 1551 Ground
B BK 150 Ground B BK 150 Ground
C PK 739 Ignition 1 Voltage C PK 739 Ignition 1 Voltage
D-E - - Not Used D-E - - Not Used
F OG 1040 Battery Positive Voltage F OG 1040 Battery Positive Voltage
G GY 8 Instrument Panel Lamp Supply Voltage G GY 8 Instrument Panel Lamp Supply Voltage
H RD 442 Battery Positive Voltage H RD 442 Battery Positive Voltage
J BK 150 Ground J BK 150 Ground
K WH 1038 HVAC Class 2 Serial Data K WH 1038 HVAC Class 2 Serial Data
L-M - - Not Used L-M - - Not Used
C240 I/P Harness to Front Floor Console Terminal Identification Harness

GM1243498Courtesy of GENERAL MOTORS CORP.
GM1243520Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 173851-2
  • 12-Way F AMP Multi-Lock 070 Series (BK)
 Connector Part Information
  • 174933-2
  • 12-Way M AMP Multi-Lock 070 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 GY 8 Instrument Panel Lamp Supply Voltage 1 GY 8 Instrument Panel Lamp Supply Voltage
2 - - Not Used 2 - - Not Used
3 WH 1104 Low Reference (UV6) 3 WH 1104 Low Reference (UV6)
4 BN 620 HUD Image Down Control (UV6) 4 BN 620 HUD Image Down Control (UV6)
5 YE 621 HUD Image Up Control (UV6) 5 YE 621 HUD Image Up Control (UV6)
6 WH 717 Illuminated Display Signal (UV6) 6 WH 717 Illuminated Display Signal (UV6)
7 BN 622 HUD Switch Signal (UV6) 7 BN 622 HUD Switch Signal (UV6)
8 OG 2540 Battery Positive Voltage 8 OG 2540 Battery Positive Voltage
9 BN/WH 1571 Traction Control Switch Signal 9 BN/WH 1571 Traction Control Switch Signal
10-11 - - Not Used 10-11 - - Not Used
12 BK 150 Ground 12 BK 150 Ground
C241 I/P Harness to Shifter Terminal Identification Harness

GM130631Courtesy of GENERAL MOTORS CORP.
GM516613Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064758
  • 3-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12064759
  • 3-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GY 8 Instrument Panel Lamp Supply Voltage A GY 8 Instrument Panel Lamp Supply Voltage
B BK 150 Ground B BK 150 Ground
C D-GN/WH 1135 A/T Shift Lock Control Solenoid Supply Voltage C D-GN/WH 1135 A/T Shift Lock Control Solenoid Supply Voltage
C301 Body Harness to Left Front Door Terminal Identification Harness

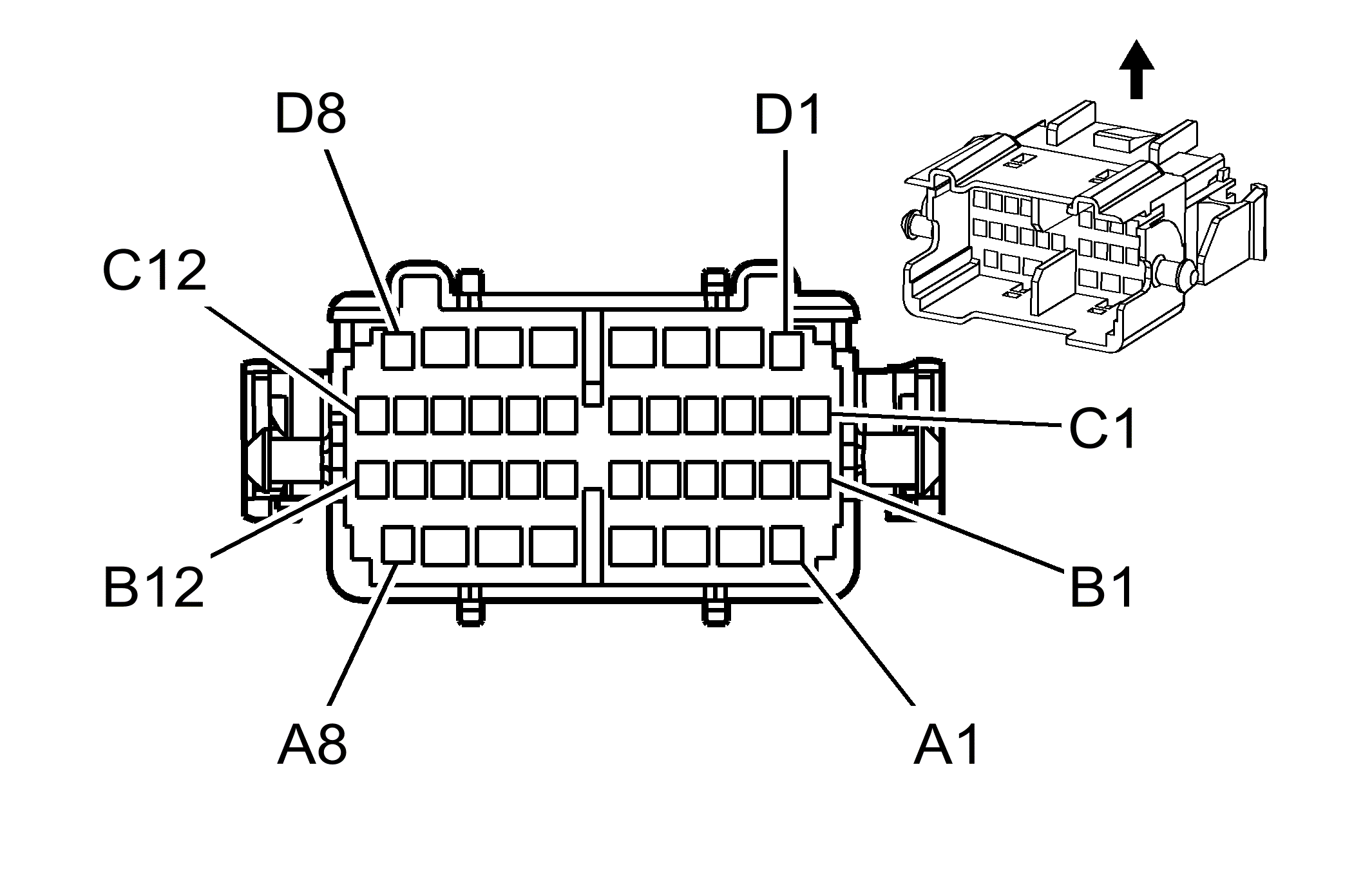

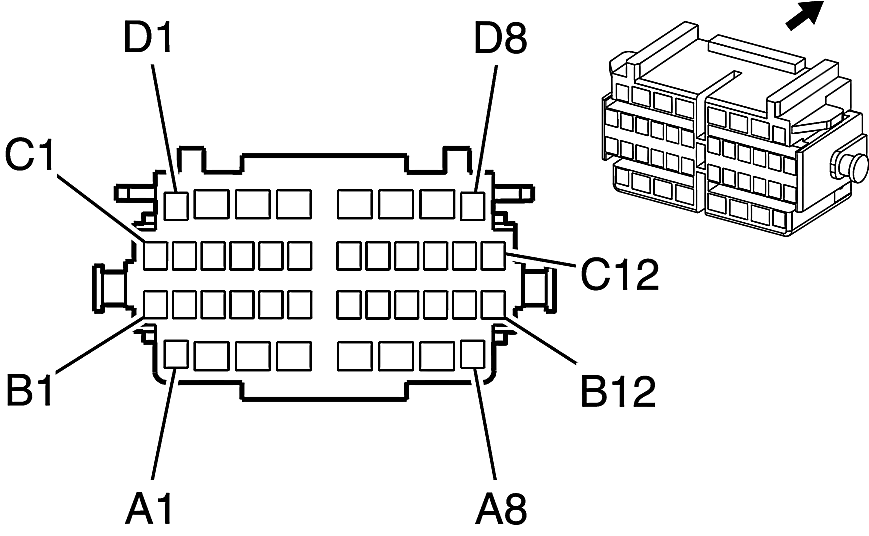

GM1243531Courtesy of GENERAL MOTORS CORP.
GM1243534Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15401211
  • 40-Way F GT Mixed Series (GY)
 Connector Part Information
  • 15401208
  • 40-Way M GT 150, 280 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 GY 295 Door Lock Actuator Lock Control A1 GY 295 Door Lock Actuator Lock Control
A2 YE 143 Accessory Voltage A2 YE 143 Accessory Voltage
A3 L-BU 166 Power Window Master Switch Right Front Up Signal A3 L-BU 166 Power Window Master Switch Right Front Up Signal
A4 TN 167 Power Window Master Switch Right Front Down Signal A4 TN 167 Power Window Master Switch Right Front Down Signal
A5 L-GN 170 Power Window Master Switch Right Rear Up Signal A5 L-GN 170 Power Window Master Switch Right Rear Up Signal
A6 PU 171 Power Window Master Switch Right Rear Down Signal A6 PU 171 Power Window Master Switch Right Rear Down Signal
A7 D-GN 168 Power Window Master Switch Left Rear Up Signal A7 D-GN 168 Power Window Master Switch Left Rear Up Signal
A8 TN 694 Driver Door Lock Actuator Unlock Control A8 TN 694 Driver Door Lock Actuator Unlock Control
B1 GY 118 Left Front Speaker Output (-) (UW6) B1 YE 1956 Left Front Speaker Output (-) (UW6)
YE 1956 Left Front Tweeter Speaker Output (-) (U87) YE 1956 Left Front Tweeter Speaker Output (-) (U87)
B2 TN 201 Left Front Speaker Output (+) (UW6) B2 BK 1856 Left Front Speaker Output (+) (UW6)
BK 1856 Left Front Tweeter Speaker Output (+) (U87) BK 1856 Left Front Tweeter Speaker Output (+) (U87)
B3 GY 118 Left Front Speaker Output (-) B3 GY 118 Left Front Speaker Output (-)
B4 TN 201 Left Front Speaker Output (+) B4 TN 201 Left Front Speaker Output (+)
B5 BN/WH 1498 Passenger Mirror Motor Down Control B5 BN/WH 1498 Passenger Mirror Motor Down Control
B6 L-BU/WH 1497 Passenger Mirror Motor Left/Up Control B6 L-BU/WH 1497 Passenger Mirror Motor Left/Up Control
B7 RD/WH 881 Passenger Mirror Motor Right Control B7 RD/WH 881 Passenger Mirror Motor Right Control
B8 OG/BK 781 Driver Door Lock Switch Unlock Signal B8 OG/BK 781 Driver Door Lock Switch Unlock Signal
B9 RD/BK 780 Driver Door Lock Switch Lock Signal B9 RD/BK 780 Driver Door Lock Switch Lock Signal
B10 GY 8 Instrument Panel Lamp Supply Voltage B10 GY 8 Instrument Panel Lamp Supply Voltage
B11 GY/BK 745 Left Front Door Ajar Switch Signal B11 GY/BK 745 Left Front Door Ajar Switch Signal
B12 TN 126 Left Front Door Open Switch Signal B12 TN 126 Left Front Door Open Switch Signal
C1 L-GN 1123 Door Lock Key Switch Lock Signal C1 L-GN 1123 Door Lock Key Switch Lock Signal
C2 PU 1124 Door Lock Key Switch Unlock Signal C2 PU 1124 Door Lock Key Switch Unlock Signal
C3 OG 840 Battery Positive Voltage C3 OG 840 Battery Positive Voltage
C4 WH 2132 Side Impact Sensing Module - Left - Signal (AY1) C4 WH 2132 Side Impact Sensing Module - Left - Signal (AY1)
C5 YE 2131 Side Impact Sensing Module - Left-Voltage (AY1) C5 YE 2131 Side Impact Sensing Module - Left-Voltage (AY1)
C6-C12 - - Not Used C6-C12 - - Not Used
D1 - - Not Used D1 - - Not Used
D2 PU 169 Power Window Master Switch Left Rear Down Signal D2 PU 169 Power Window Master Switch Left Rear Down Signal
D3 D-BU 1307 Power Window Master Switch Lockout Control D3 D-BU 1307 Power Window Master Switch Lockout Control
D4 BK 550 Ground D4 BK 550 Ground
D5-D8 - - Not Used D5-D8 - - Not Used
C302 I/P Harness to Right Front Door Terminal Identification Harness

GM1243531Courtesy of GENERAL MOTORS CORP.
GM1243534Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15401211
  • 40-Way F GT Mixed Series (GY)
 Connector Part Information
  • 15401208
  • 40-Way M GT 150, 280 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 GY 295 Door Lock Actuator Lock Control A1 GY 295 Door Lock Actuator Lock Control
A2 YE 143 Accessory Voltage A2 YE 143 Accessory Voltage
A3 L-BU 166 Power Window Master Switch Right Front Up Signal A3 L-BU 166 Power Window Master Switch Right Front Up Signal
A4 TN 167 Power Window Master Switch Right Front Down Signal A4 TN 167 Power Window Master Switch Right Front Down Signal
A5-A7 - - Not Used A5-A7 - - Not Used
A8 TN 294 Door Lock Actuator Unlock Control A8 TN 294 Door Lock Actuator Unlock Control
B1 BN/WH 1498 Passenger Mirror Motor Down Control B1 BN/WH 1498 Passenger Mirror Motor Down Control
B2 BK 750 Ground B2 BK 750 Ground
B3 RD/WH 881 Passenger Mirror Motor Right Control B3 RD/WH 881 Passenger Mirror Motor Right Control
B4 L-BU/WH 1497 Passenger Mirror Motor Left/Up Control B4 L-BU/WH 1497 Passenger Mirror Motor Left/Up Control
B5 D-GN 117 Right Front Speaker Output (-) (UW6) B5 PU 1952 Right Front Speaker Output (-) (UW6)
PU 1952 Right Front Tweeter Speaker Output (-) (U87) PU 1952 Right Front Tweeter Speaker Output (-) (U87)
B6 L-GN 200 Right Front Speaker Output (+) (UW6) B6 L-GN 1852 Right Front Speaker Output (+) (UW6)
L-GN 1852 Right Front Tweeter Speaker Output (+) (U87) L-GN 1852 Right Front Tweeter Speaker Output (+) (U87)
B7 D-GN 117 Right Front Speaker Output (-) B7 D-GN 117 Right Front Speaker Output (-)
B8 L-GN 200 Right Front Speaker Output (+) B8 L-GN 200 Right Front Speaker Output (+)
B9 L-GN 1177 Right Front Door Open Switch Signal B9 L-GN 1177 Right Front Door Open Switch Signal
B10-B11 - - Not Used B10-B11 - - Not Used
B12 L-BU 244 Passenger Door Lock Switch Lock Signal B12 L-BU 244 Passenger Door Lock Switch Lock Signal
C1 D-BU 245 Passenger Door Lock Switch Unlock Signal C1 D-BU 245 Passenger Door Lock Switch Unlock Signal
C2 GY 8 Instrument Panel Lamp Supply Voltage C2 GY 8 Instrument Panel Lamp Supply Voltage
C3 BK/WH 746 Right Front Door Ajar Switch Signal C3 BK/WH 746 Right Front Door Ajar Switch Signal
C4 D-GN 2134 Side Impact Sensing Module - Right - Signal (AY1) C4 D-GN 2134 Side Impact Sensing Module - Right - Signal (AY1)
C5 TN 2133 Side Impact Sensing Module - Right - Voltage (AY1) C5 TN 2133 Side Impact Sensing Module - Right - Voltage (AY1)
C6-C12 - - Not Used C6-C12 - - Not Used
D1-D8 - - Not Used D1-D8 - - Not Used
C303 Left Front Door Harness to Left Front Door Trim Terminal Identification Harness

GM1243543Courtesy of GENERAL MOTORS CORP.
GM1243547Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 638277-4
  • 52-Way F AMP (BK)
 Connector Part Information
  • 1326075-1
  • 52-Way M AMP (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BN/WH 1498 Passenger Mirror Motor Down Control 1 BN/WH 1498 Passenger Mirror Motor Down Control
2 L-BU/WH 1497 Passenger Mirror Motor Left/Up Control 2 L-BU/WH 1497 Passenger Mirror Motor Left/Up Control
3 RD/WH 881 Passenger Mirror Motor Right Control 3 RD/WH 881 Passenger Mirror Motor Right Control
4 OG/BK 781 Driver Door Lock Switch Unlock Signal 4 OG/BK 781 Driver Door Lock Switch Unlock Signal
5 RD/BK 780 Driver Door Lock Switch Lock Signal 5 RD/BK 780 Driver Door Lock Switch Lock Signal
6 YE 1956 Left Front Speaker Output (-) (UW6) 6 YE 1956 Left Front Speaker Output (-) (UW6)
YE 1956 Left Front Tweeter Speaker Output (-) (U87) YE 1956 Left Front Tweeter Speaker Output (-) (U87)
7 BK 1856 Left Front Speaker Output (+) (UW6) 7 BK 1856 Left Front Speaker Output (+) (UW6)
BK 1856 Left Front Tweeter Speaker Output (+) (U87) BK 1856 Left Front Tweeter Speaker Output (+) (U87)
8 GY 8 Instrument Panel Lamp Supply Voltage 8 GY 8 Instrument Panel Lamp Supply Voltage
9 OG 840 Battery Positive Voltage 9 OG 840 Battery Positive Voltage
10 WH 81 Driver Mirror Motor Right Control 10 WH 81 Driver Mirror Motor Right Control
11 YE 88 Driver Mirror Motor Down Control 11 YE 88 Driver Mirror Motor Down Control
12 L-GN 1499 Driver Mirror Motor Left/Up Control 12 L-GN 1499 Driver Mirror Motor Left/Up Control
13-40 - - Not Used 13-40 - - Not Used
41 L-GN 170 Power Window Master Switch Right Rear Up Signal 41 L-GN 170 Power Window Master Switch Right Rear Up Signal
42 PU 171 Power Window Master Switch Right Rear Down Signal 42 PU 171 Power Window Master Switch Right Rear Down Signal
43 D-GN 168 Power Window Master Switch Left Rear Up Signal 43 D-GN 168 Power Window Master Switch Left Rear Up Signal
44 PU 169 Power Window Master Switch Left Rear Down Signal 44 PU 169 Power Window Master Switch Left Rear Down Signal
45 D-BU 1307 Power Window Master Switch Lockout Control 45 D-BU 1307 Power Window Master Switch Lockout Control
46 L-BU 166 Power Window Master Switch Right Front Up Signal 46 L-BU 166 Power Window Master Switch Right Front Up Signal
47 TN 167 Power Window Master Switch Right Front Down Signal 47 TN 167 Power Window Master Switch Right Front Down Signal
48 BN 165 Power Window Motor Left Front Down Control 48 BN 165 Power Window Motor Left Front Down Control
49 D-BU 164 Power Window Motor Left Front Up Control 49 D-BU 164 Power Window Motor Left Front Up Control
50 YE 143 Accessory Voltage 50 YE 143 Accessory Voltage
51 BK 550 Ground 51 BK 550 Ground
52 - - Not Used 52 - - Not Used
C304 Right Front Door Harness to Right Front Door Trim Terminal Identification Harness

GM1243543Courtesy of GENERAL MOTORS CORP.
GM1243547Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 638277-4
  • 52-Way F AMP (BK)
 Connector Part Information
  • 1326075-1
  • 52-Way M AMP (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 L-BU 244 Passenger Door Lock Switch Lock Signal 1 L-BU 244 Passenger Door Lock Switch Lock Signal
2 D-BU 245 Passenger Door Lock Switch Unlock Signal 2 D-BU 245 Passenger Door Lock Switch Unlock Signal
3 PU 1952 Right Front Speaker Output (-) (UW6) 3 PU 1952 Right Front Speaker Output (-) (UW6)
PU 1952 Right Front Tweeter Speaker Output (-) (U87) PU 1952 Right Front Tweeter Speaker Output (-) (U87)
4 L-GN 1852 Right Front Speaker Output (+) (UW6) 4 L-GN 1852 Right Front Speaker Output (+) (UW6)
L-GN 1852 Right Front Tweeter Speaker Output (+) (U87) L-GN 1852 Right Front Tweeter Speaker Output (+) (U87)
5 GY 8 Instrument Panel Lamp Supply Voltage 5 GY 8 Instrument Panel Lamp Supply Voltage
6 BK 750 Ground 6 BK 750 Ground
7-43 - - Not Used 7-43 - - Not Used
44 YE 143 Accessory Voltage 44 YE 143 Accessory Voltage
45 L-BU 166 Power Window Master Switch Right Front Up Signal 45 L-BU 166 Power Window Master Switch Right Front Up Signal
46 TN 167 Power Window Master Switch Right Front Down Signal 46 TN 167 Power Window Master Switch Right Front Down Signal
47 D-BU 666 Power Window Motor Right Front Up Control 47 D-BU 666 Power Window Motor Right Front Up Control
48 BN 667 Power Window Motor Right Front Down Control 48 BN 667 Power Window Motor Right Front Down Control
49-52 - - Not Used 49-52 - - Not Used

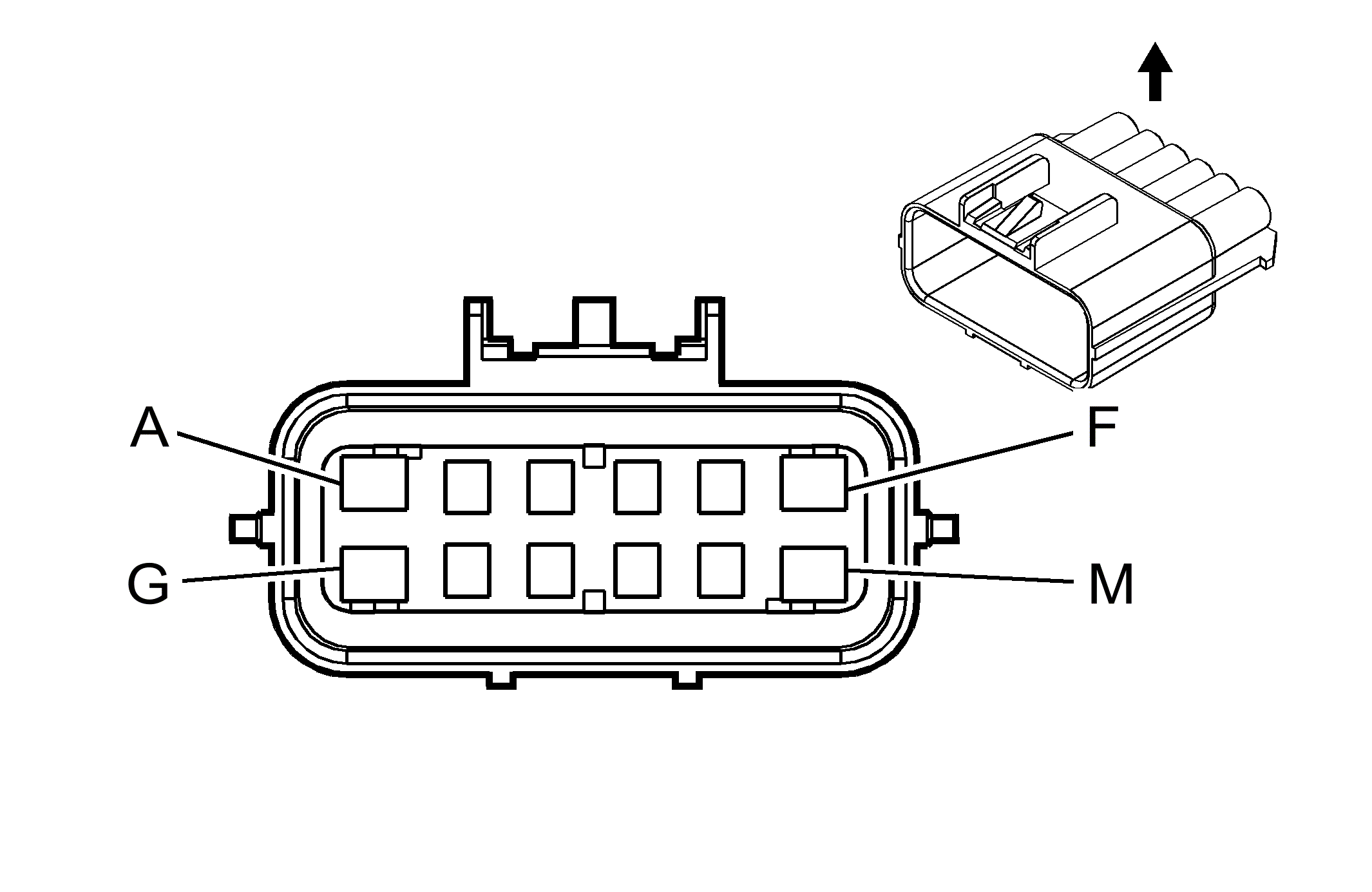

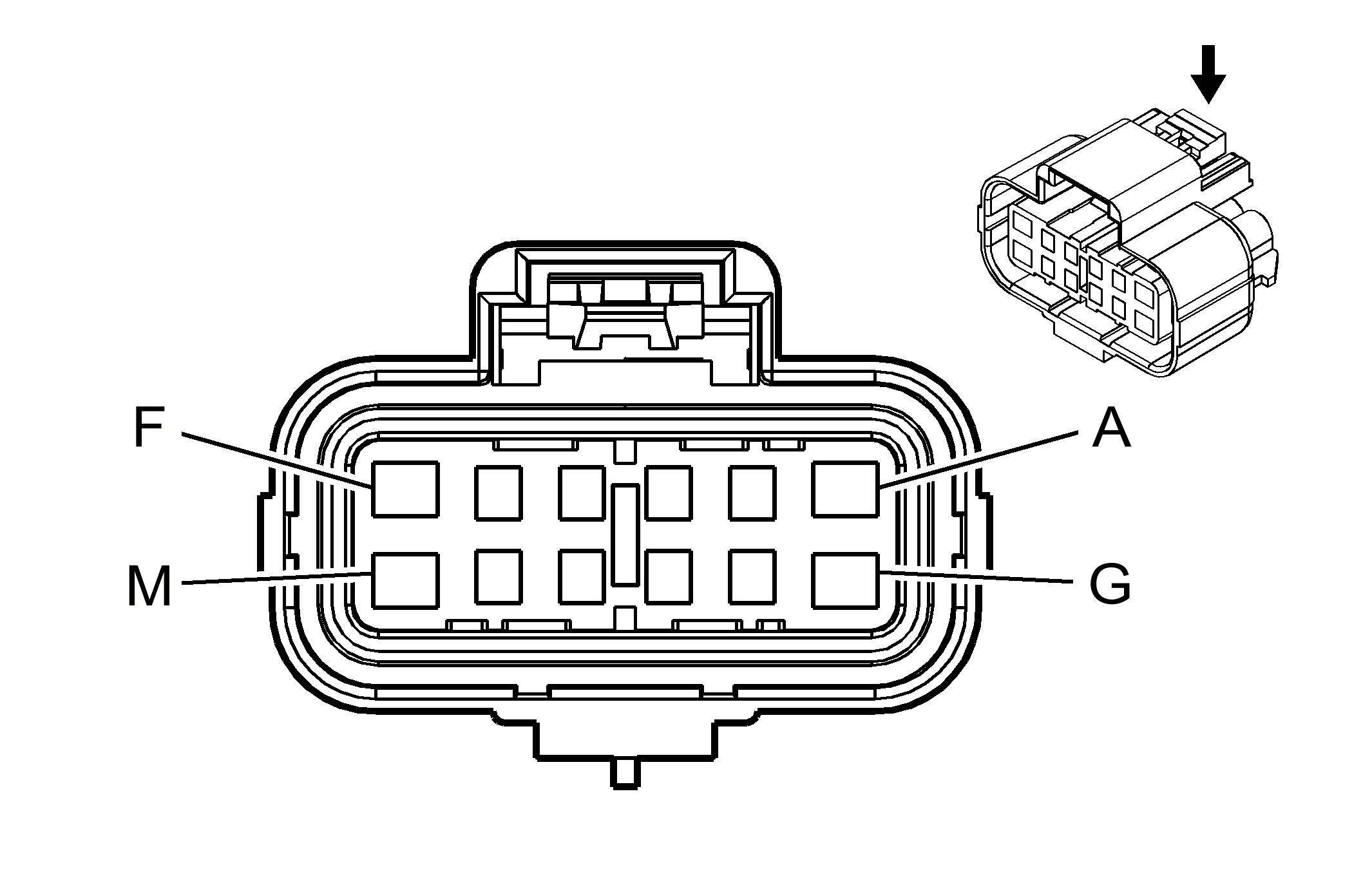

C311 Body Harness to Left Front Seat Terminal Identification Harness

GM813079Courtesy of GENERAL MOTORS CORP.
GM813080Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336205
  • 12-Way F GT 150, 280 Mixed Series (BK)
 Connector Part Information
  • 15336209
  • 12-Way M GT 150, 280 Mixed Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 1140 Battery Positive Voltage A OG 1140 Battery Positive Voltage
B YE 2080 Driver Heated Seat Cushion Temperature Sensor Low Reference (KA1) B YE 2080 Driver Heated Seat Cushion Temperature Sensor Low Reference (KA1)
C OG 1440 Battery Positive Voltage (KA1) C OG 1440 Battery Positive Voltage (KA1)
D PU 2477 Driver Heated Seat Relay Control (KA1) D PU 2477 Driver Heated Seat Relay Control (KA1)
E YE/BK 2079 Heated Seat Cushion Temperature Sensor Signal (KA1) E YE/BK 2079 Heated Seat Cushion Temperature Sensor Signal (KA1)
G BK 550 Ground G BK 550 Ground
H BK/WH 238 Seat Belt Switch - Left H BK/WH 238 Seat Belt Switch - Left
F-M - - Not Used F-M - - Not Used
C312 Left Front Seat Harness to Left Front Seat Terminal Identification Back Harness

GM39667Courtesy of GENERAL MOTORS CORP.
GM130711Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129136
  • 4-Way F Metri-Pack 280 Series (BK)
 Connector Part Information
  • 12129135
  • 4-Way M Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D-BU/WH 611 Driver Seat Lumbar Motor Forward Control A D-BU 611 Driver Seat Lumbar Motor Forward Control
B PK/BK 610 Driver Seat Lumbar Motor Rearward Control B PK 610 Driver Seat Lumbar Motor Rearward Control
C TN/WH 768 Driver Seat Lumbar Motor Up Control C TN 768 Driver Seat Lumbar Motor Up Control
D PU/WH 767 Driver Seat Lumbar Motor Down Control D PU 767 Driver Seat Lumbar Motor Down Control
C313 Body Harness to Right Front Terminal Identification Seat Harness

GM646374Courtesy of GENERAL MOTORS CORP.
GM715111Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15332145
  • 8-Way F GT 150 Series (BK)
 Connector Part Information
  • 15332150
  • 8-Way M GT 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 1440 Battery Positive Voltage A OG 1440 Battery Positive Voltage
B BK 750 Ground B BK 750 Ground
C GY 2434 Passenger Heated Seat Cushion Temperature Sensor Signal C GY 2434 Passenger Heated Seat Cushion Temperature Sensor Signal
D TN/WH 2430 Passenger Heated Seat Relay Control D TN/WH 2430 Passenger Heated Seat Relay Control
E-G - - Not Used E-G - - Not Used
H PK 2435 Passenger Heated Seat Cushion Temperature Sensor Low Reference H PK 2435 Passenger Heated Seat Cushion Temperature Sensor Low Reference
C315 Right Front Seat Safety Harness to Terminal Identification Body Harness

GM966375Courtesy of GENERAL MOTORS CORP.
GM646194Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12077921
  • 2-Way F Metri-Pack 280 Series (YE)
 Connector Part Information
  • 12186799
  • 2-Way M Metri-Pack 280 Series, P2S (YE)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-GN 2116 Seat Belt Pretensioner - Right - High Control A L-GN 2116 Seat Belt Pretensioner - Right - High Control
B OG 2117 Seat Belt Pretensioner - Right - Low Control B OG 2117 Seat Belt Pretensioner - Right - Low Control
C316 Left Front Seat Safety Harness to Terminal Identification Body Harness

GM966375Courtesy of GENERAL MOTORS CORP.
GM646194Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12077921
  • 2-Way F Metri-Pack 280 Series (YE)
 Connector Part Information
  • 12186799
  • 2-Way M Metri-Pack 280 Series, P2S (YE)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK/WH 2118 Seat Belt Pretensioner - Left - High Control A BK/WH 2118 Seat Belt Pretensioner - Left - High Control
B OG/BK 2119 Seat Belt Pretensioner - Left - Low Control B OG/BK 2119 Seat Belt Pretensioner - Left - Low Control

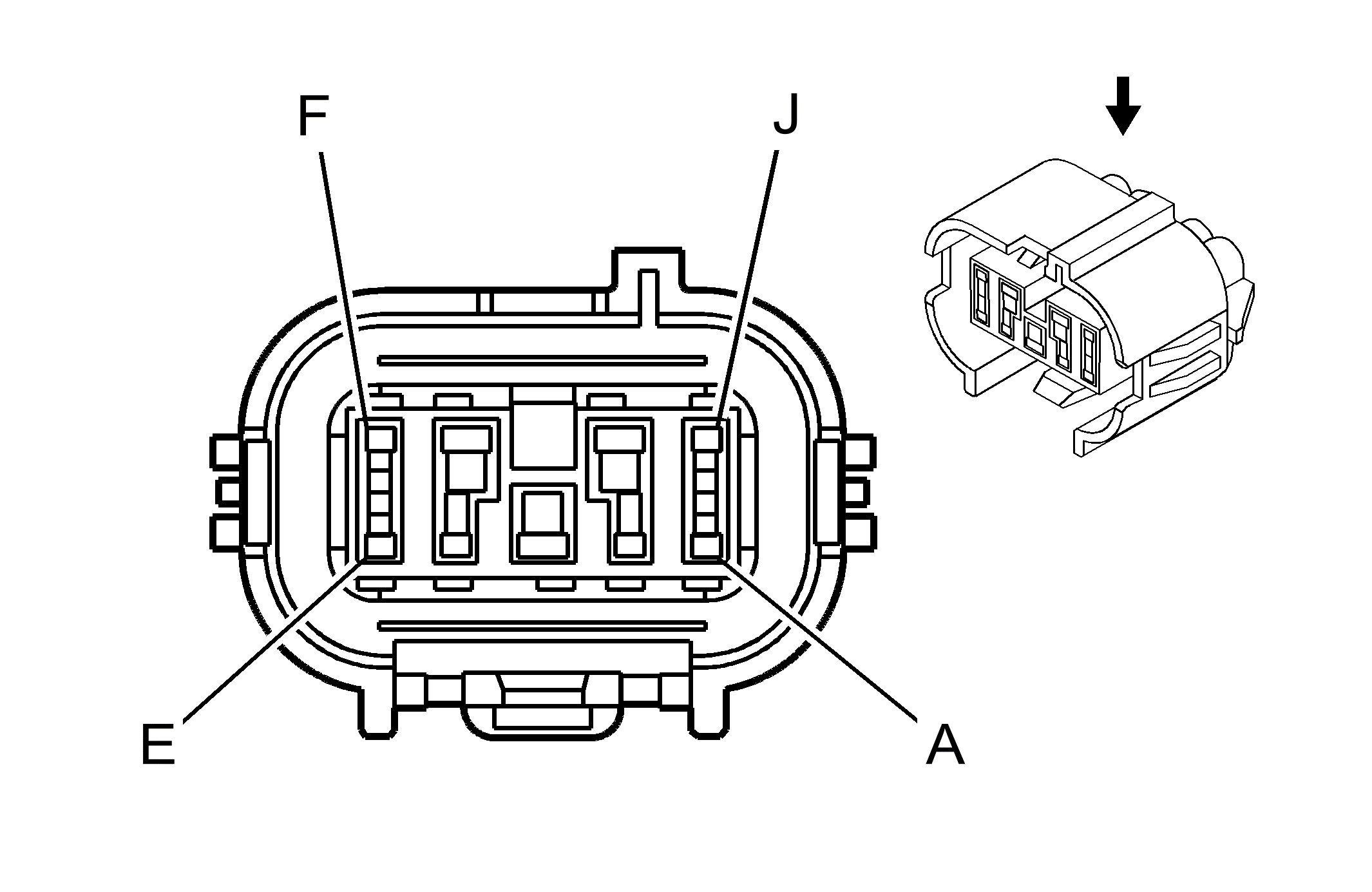

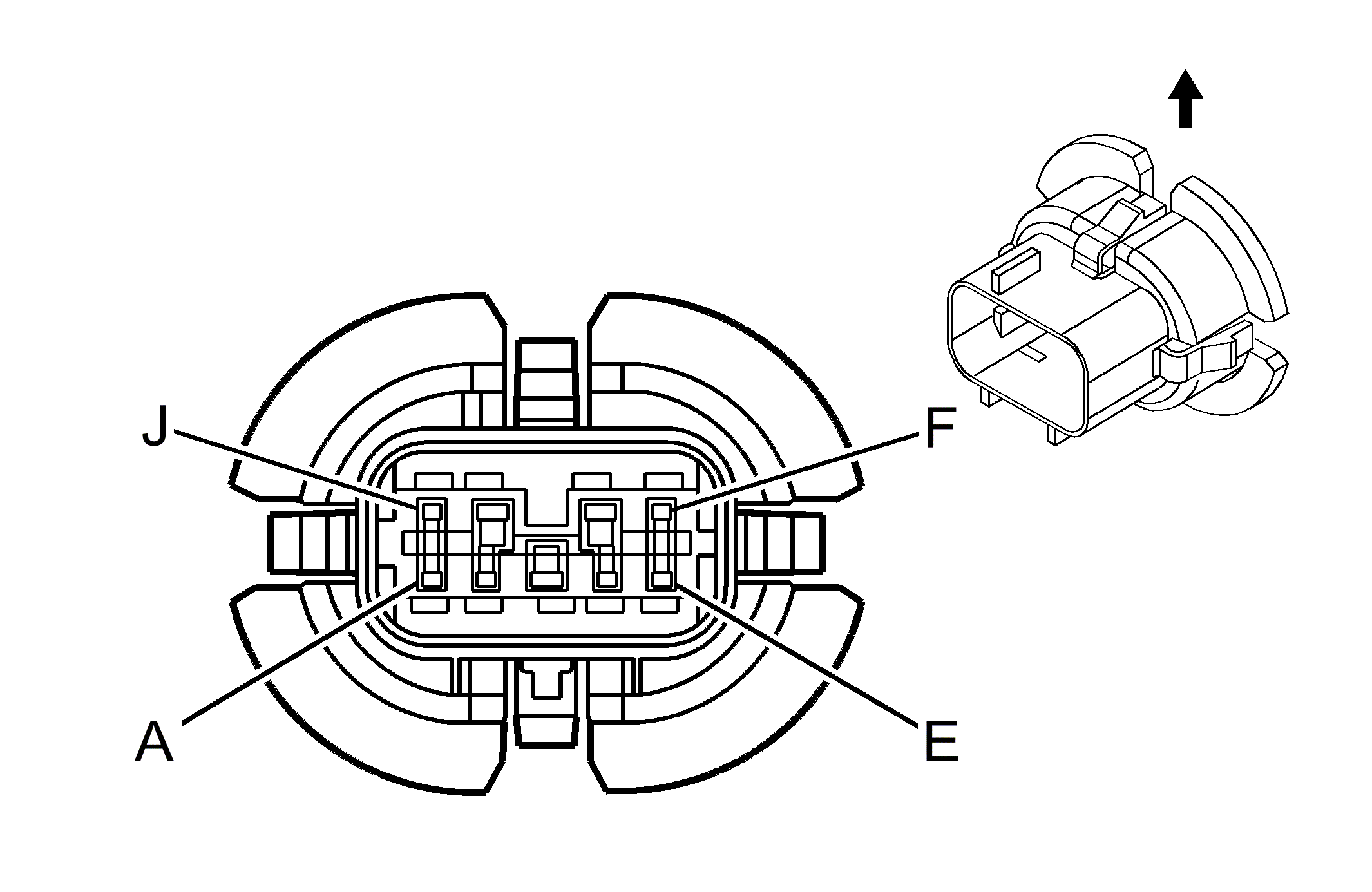

C355 Body Harness to Left Rear Terminal Identification Door Harness

GM1243551Courtesy of GENERAL MOTORS CORP.
GM1243552Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15441216
  • 9-Way F GT 150, 280 Series, Sealed (BK)
 Connector Part Information
  • 15394557
  • 9-Way M GT 150, 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 550 Ground A BK 550 Ground
B TN 294 Door Lock Actuator Unlock Control B TN 294 Door Lock Actuator Unlock Control
C D-BU 1307 Power Window Master Switch Lockout Control C D-BU 1307 Power Window Master Switch Lockout Control
D D-BU/WH 1179 Left Rear Door Open Switch Signal D D-BU/WH 1179 Left Rear Door Open Switch Signal
E GY 295 Door Lock Actuator Lock Control E GY 295 Door Lock Actuator Lock Control
F L-BU/BK 747 Left Rear Door Ajar Switch Signal F L-BU/BK 747 Left Rear Door Ajar Switch Signal
G D-GN 168 Power Window Master Switch Left Rear Up Signal G D-GN 168 Power Window Master Switch Left Rear Up Signal
H PU 169 Power Window Master Switch Left Rear Down Signal H PU 169 Power Window Master Switch Left Rear Down Signal
J - - Not Used J - - Not Used
C356 Body Harness to Right Rear Door Terminal Identification Harness

GM1243551Courtesy of GENERAL MOTORS CORP.
GM1243552Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15441216
  • 9-Way F GT 150, 280 Series, Sealed (BK)
 Connector Part Information
  • 15394557
  • 9-Way M GT 150, 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 750 Ground A BK 750 Ground
B TN 294 Door Lock Actuator Unlock Control B TN 294 Door Lock Actuator Unlock Control
C D-BU 1307 Power Window Master Switch Lockout Control C D-BU 1307 Power Window Master Switch Lockout Control
D YE/BK 1181 Right Rear Door Open Switch Signal D YE/BK 1181 Right Rear Door Open Switch Signal
E GY 295 Door Lock Actuator Lock Control E GY 295 Door Lock Actuator Lock Control
F L-GN/BK 748 Right Rear Door Ajar Switch Signal F L-GN/BK 748 Right Rear Door Ajar Switch Signal
G L-GN 170 Power Window Master Switch Right Rear Up Signal G L-GN 170 Power Window Master Switch Right Rear Up Signal
H PU 171 Power Window Master Switch Right Rear Down Signal H PU 171 Power Window Master Switch Right Rear Down Signal
J - - Not Used J - - Not Used
C390 Roof Harness To Terminal Identification Body Harness

GM813079Courtesy of GENERAL MOTORS CORP.
GM813080Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336205
  • 12-Way F GT 150,280 Series (BK)
 Connector Part Information
  • 15336209
  • 12-Way M GT 150,280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 1732 Inadvertent Power Courtesy Lamp A OG 1732 Inadvertent Power Courtesy Lamp
B BK 750 Ground B BK 750 Ground
C YE 643 Accessory Voltage (CF5) C YE 643 Accessory Voltage (CF5)
D - - Not Used D - - Not Used
E GY 655 Cellular Microphone Signal (UE1) E GY 655 Cellular Microphone Signal (UE1)
F BARE 1705 Drain Wire (UE1) F BARE 1705 Drain Wire (UE1)
G GY/BK 690 Courtesy Lamp Supply Voltage G GY/BK 690 Courtesy Lamp Supply Voltage
H D-GN/WH 2514 Keypad Signal (UE1) H D-GN/WH 2514 Keypad Signal (UE1)
J L-GN/BK 2515 Keypad Supply Voltage (UE1) J L-GN/BK 2515 Keypad Supply Voltage (UE1)
K YE/BK 2516 Keypad Green LED Signal (UE1) K YE/BK 2516 Keypad Green LED Signal (UE1)
L BN/WH 2517 Keypad Red LED Signal (UE1) L BN/WH 2517 Keypad Red LED Signal (UE1)
M - - Not Used M - - Not Used

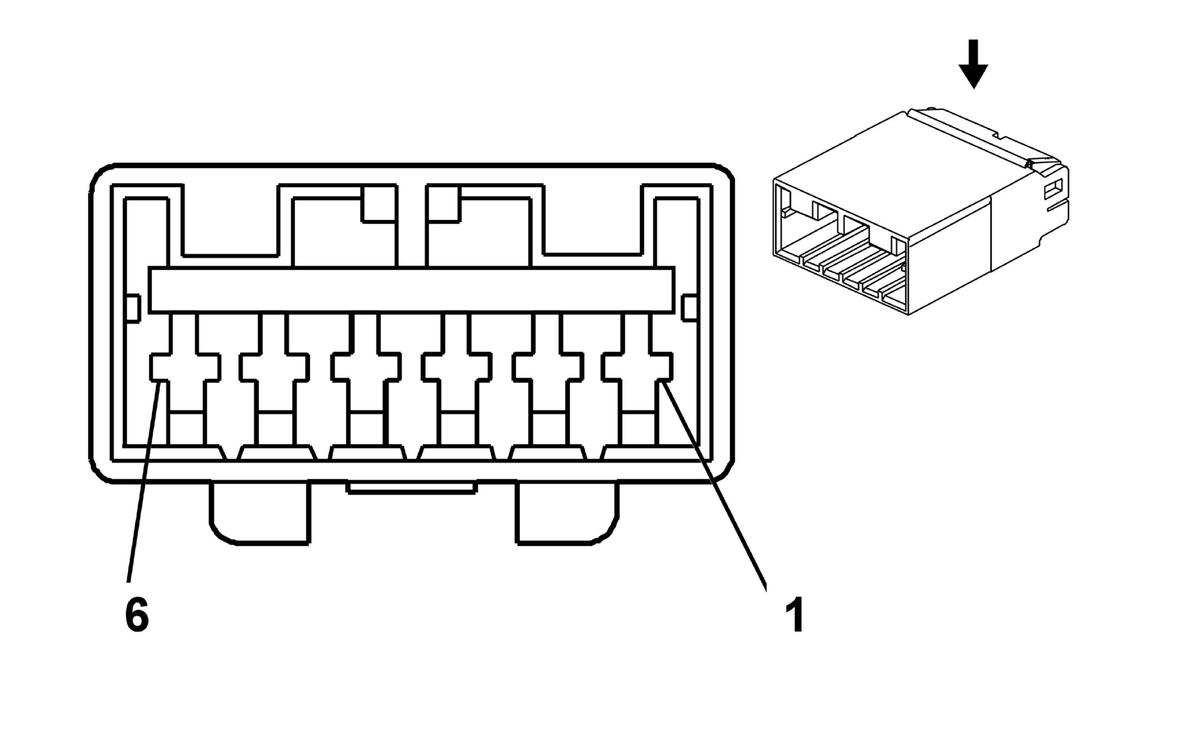

C398 Roof Harness to Terminal Identification Sunroof Harness

GM1243561Courtesy of GENERAL MOTORS CORP.
GM1243565Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 174930-2
  • 6-Way F AMP Multi-Lock 070 Series (BK)
 Connector Part Information
  • 174923-1
  • 6-Way F AMP Multi-Lock 070 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BN 100 Sunroof Switch Open Signal 1 BN 100 Sunroof Switch Open Signal
2 OG 110 Sunroof Switch Close Signal 2 OG 110 Sunroof Switch Close Signal
3 D-BU 128 Sunroof Switch Low Reference 3 D-BU 128 Sunroof Switch Low Reference
4 BK 750 Ground 4 BK 750 Ground
5 YE 643 Accessory Voltage 5 YE 643 Accessory Voltage
6 - - Not Used 6 - - Not Used
C400 Rear Deck Lid Harness to Terminal Identification Body Harness

GM62439Courtesy of GENERAL MOTORS CORP.
GM62434Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047886
  • 8-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12045688
  • 8-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage A BN 9 Park Lamp Supply Voltage
B WH 17 Stop Lamp Switch Signal B WH 17 Stop Lamp Switch Signal
C L-GN 24 Backup Lamp Supply Voltage C L-GN 24 Backup Lamp Supply Voltage
D OG/BK 737 Rear Compartment Lamp Control D OG/BK 737 Rear Compartment Lamp Control
E BK 750 Ground E BK 750 Ground
F L-BU 1344 Trunk Release Control F L-BU 1344 Trunk Release Control
G L-BU 263 Tamper Switch Signal G L-BU 263 Tamper Switch Signal
H RD/BK 744 Rear Compartment Lid Ajar Switch H RD/BK 744 Rear Compartment Lid Ajar Switch
C401 Body Harness to Left Rear Lamp Terminal Identification Harness

GM684807Courtesy of GENERAL MOTORS CORP.
GM655690Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110293
  • 3-Way F Metri-Pack 150 Series, Sealed (BK)
 Connector Part Information
  • 12129615
  • 3-Way M Metri-Pack 150 Series, Flexlock, Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YE 18 Left Rear Stop/Turn Lamp Supply Voltage A YE 18 Left Rear Stop/Turn Lamp Supply Voltage
B BN 9 Park Lamp Supply Voltage B BN 9 Park Lamp Supply Voltage
C BK 550 Ground C BK 550 Ground
C402 Body Harness to Right Rear Terminal Identification Lamp Harness

GM684807Courtesy of GENERAL MOTORS CORP.
GM655690Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110293
  • 3-Way F Metri-Pack 150 Series, Sealed (BK)
 Connector Part Information
  • 12129615
  • 3-Way M Metri-Pack 150 Series, Flexlock, Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D-GN 19 Right Rear Stop/Turn Lamp Supply Voltage A YE 19 Right Rear Stop/Turn Lamp Supply Voltage
B BN 9 Park Lamp Supply Voltage B BN 9 Park Lamp Supply Voltage
C BK 750 Ground C BK 750 Ground
C403 Rear Applique Harness to Rear Deck Terminal Identification Lid Harness

GM130637Courtesy of GENERAL MOTORS CORP.
GM40399Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064760
  • 4-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12064761
  • 4-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage A BN 9 Park Lamp Supply Voltage
B D-GN 24 Backup Lamp Supply Voltage B L-GN 24 Backup Lamp Supply Voltage
C BK 750 Ground C BK 750 Ground
D - - Not Used D - - Not Used
C404 CHMSL Jumper Harness to Rear Deck Terminal Identification Lid Harness

GM333035Courtesy of GENERAL MOTORS CORP.
GM287973Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12047782
  • 3-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WH 17 Stop Lamp Switch Signal A WH 17 Stop Lamp Switch Signal
B - - Not Used B - - Not Used
C BK 750 Ground C BK 750 Ground
Inline Connector C405 (1A-1D) Fuel Tank Harness to Terminal Identification Body Harness

GM646171Courtesy of GENERAL MOTORS CORP.
GM623045Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146439
  • 4-Way F Metri-Pack 150 Series, Sealed (GY)
 Connector Part Information
  • 15326714
  • 12-Way M Metri-Pack 150 Series, Sealed (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BN 882 Right Rear Wheel Speed Sensor Signal 1A BN 882 Right Rear Wheel Speed Sensor Signal
B WH 883 Right Rear Wheel Speed Sensor Low Reference 1B WH 883 Right Rear Wheel Speed Sensor Low Reference
C BK 884 Left Rear Wheel Speed Sensor Signal 1C BK 884 Left Rear Wheel Speed Sensor Signal
D RD 885 Left Rear Wheel Speed Sensor Low Reference 1D RD 885 Left Rear Wheel Speed Sensor Low Reference
Inline Connector C405 (3A-3H) Fuel Tank Harness To Terminal Identification Body Harness

GM130683Courtesy of GENERAL MOTORS CORP.
GM623045Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15317611
  • 8-Way F Metri-Pack 280 Series, Flexlock, Sealed (GY)
 Connector Part Information
  • 15326714
  • 12-Way M Metri-Pack 150 Series, Sealed (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 150 Ground 3A BK 1850 Ground
B BK/WH 651 Low Reference 3B BK 2759 Low Reference
C GY 120 Fuel Pump Supply Voltage 3C GY 120 Fuel Pump Supply Voltage
D PU 30 Fuel Level Sensor Signal 3D PU/WH 1589 Fuel Level Sensor Signal
E - - Not Used 3E - - Not Used
F GY/BK 416 5 Volt Reference 3F GY 2709 5 Volt Reference
G D-GN 890 Fuel Tank Pressure Sensor Signal 3G D-GN 890 Fuel Tank Pressure Sensor Signal
H OG/BK 469 Low Reference 3H BK 2759 Low Reference
BK 2759 Low Reference
scientia non olet · About LEMON Manuals
