Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Install the parking brake indicator switch (1).

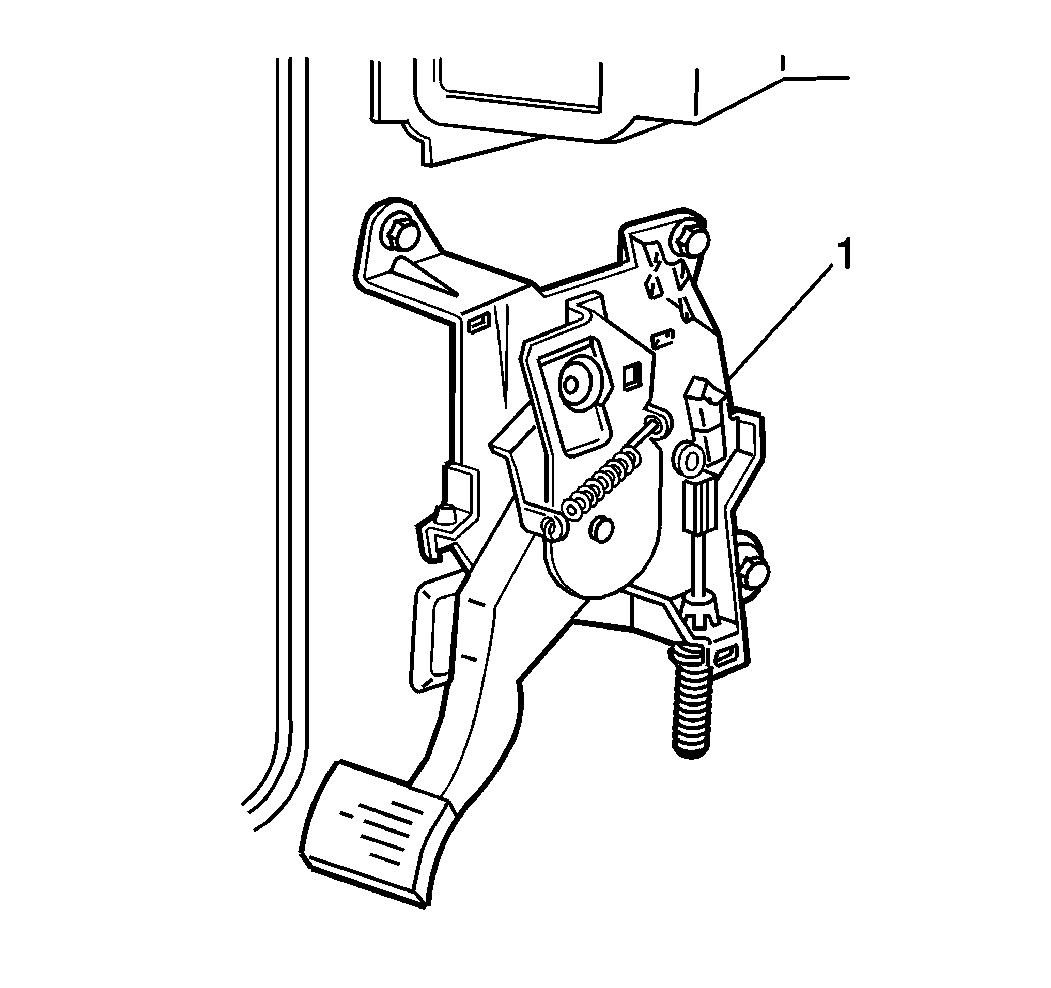

Fig 1: Locating Parking Brake Indicator Switch

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the mounting screw.
Tighten: Tighten the mounting screw to 3 N.m (26 lb in).
Connect the electrical connector to the switch.
Check the operation of the switch.
Install the left carpet retainers. Refer to Carpet Retainer Replacement - Front in Interior Trim.
Install the left side instrument panel insulator.
