Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sunroof actuator to the sunroof module.
    NOTE: Refer to Fastener Notice in Cautions and Notices.

    Install the sunroof actuator bolts.

    Tighten:  Tighten the sunroof actuator bolts to 4 N.m (35 lb in).

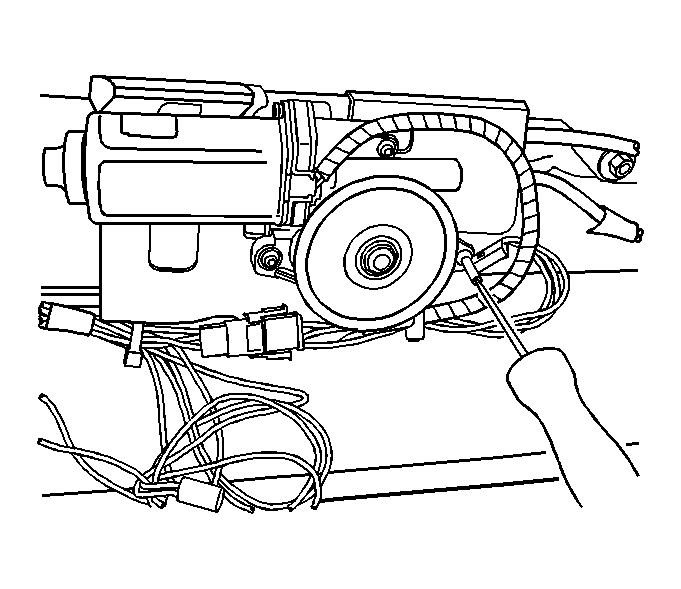

    2. Fig 1: Installing Sunroof Actuator Bolts (PES)
    GM791514Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the sunroof actuator.
  3. Remove the sunroof timing pins.
    4. Fig 2: Locating Sunroof Window Panel Screw Holes
    GM548328Courtesy of GENERAL MOTORS CORP.
  4. Install the front screws to the sunroof window panel. Refer toSunroof Window Replacement .
  5. Check the sunroof for proper operation.
  6. Install the headliner. Refer to Headliner Replacement (Impala) or Headliner Replacement (Monte Carlo) in Interior Trim.
