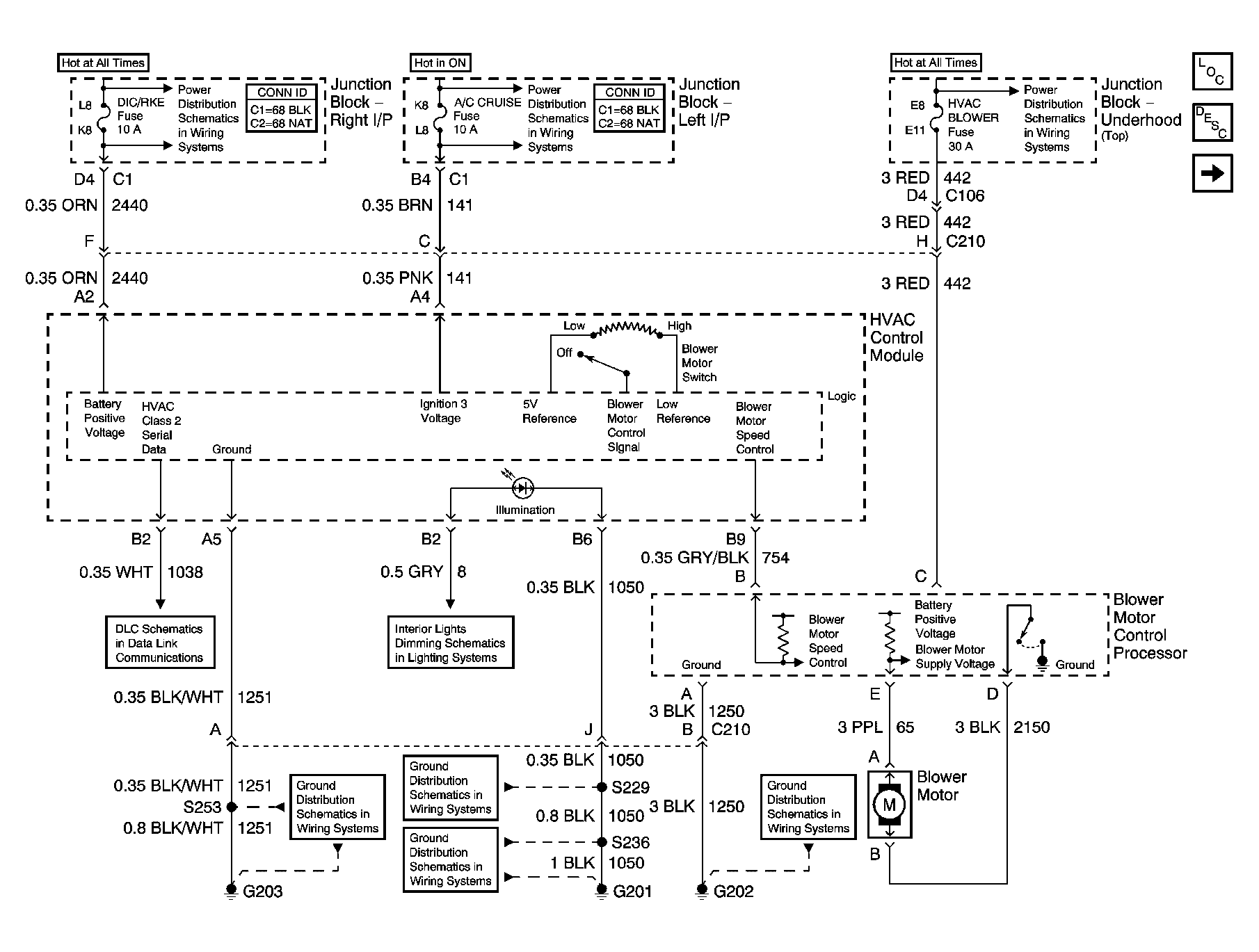

Fig 1: Power, Ground, and Blower Motor Controls Schematic
Courtesy of GENERAL MOTORS CORP.

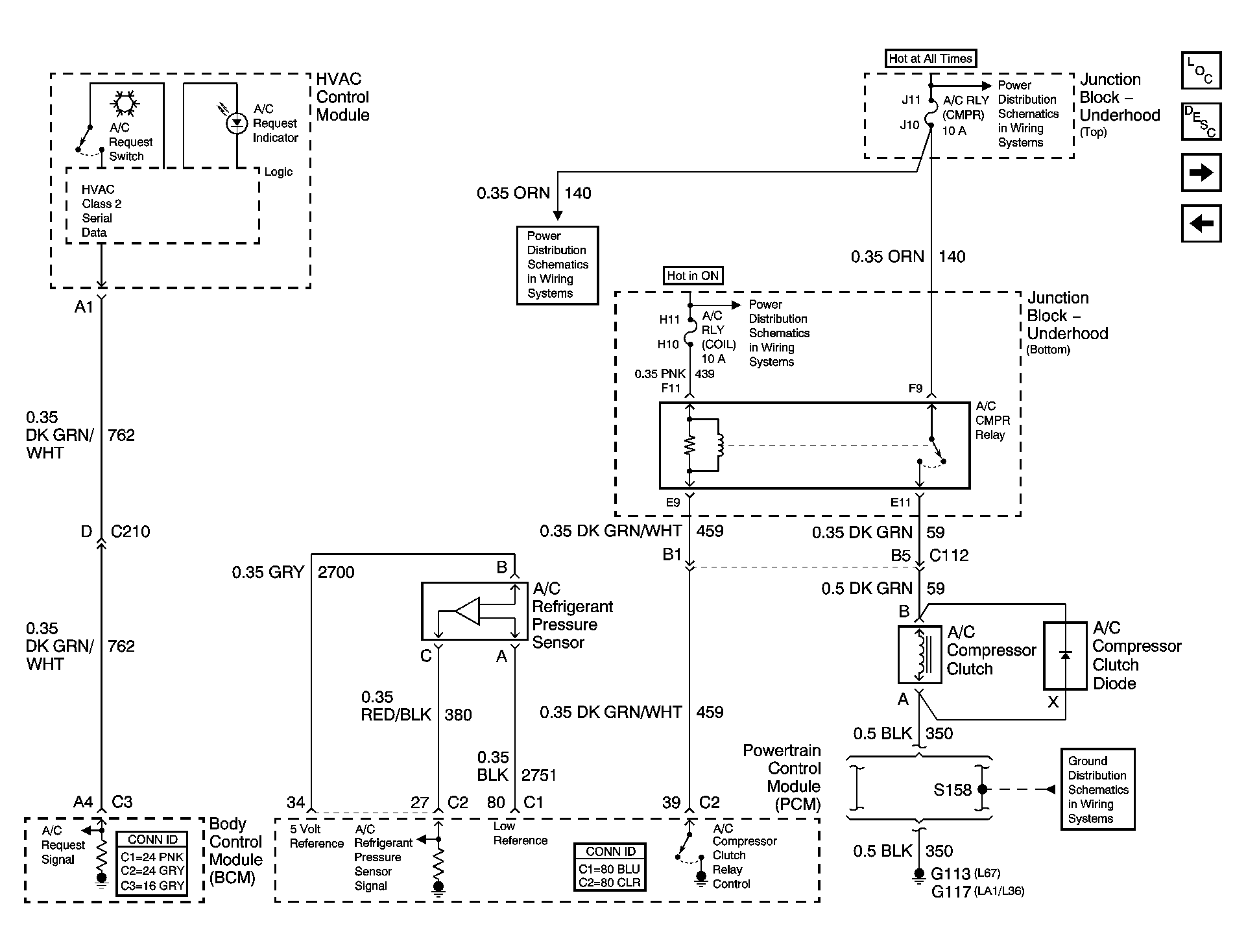

Fig 2: A/C Compressor Controls Schematic
Courtesy of GENERAL MOTORS CORP.

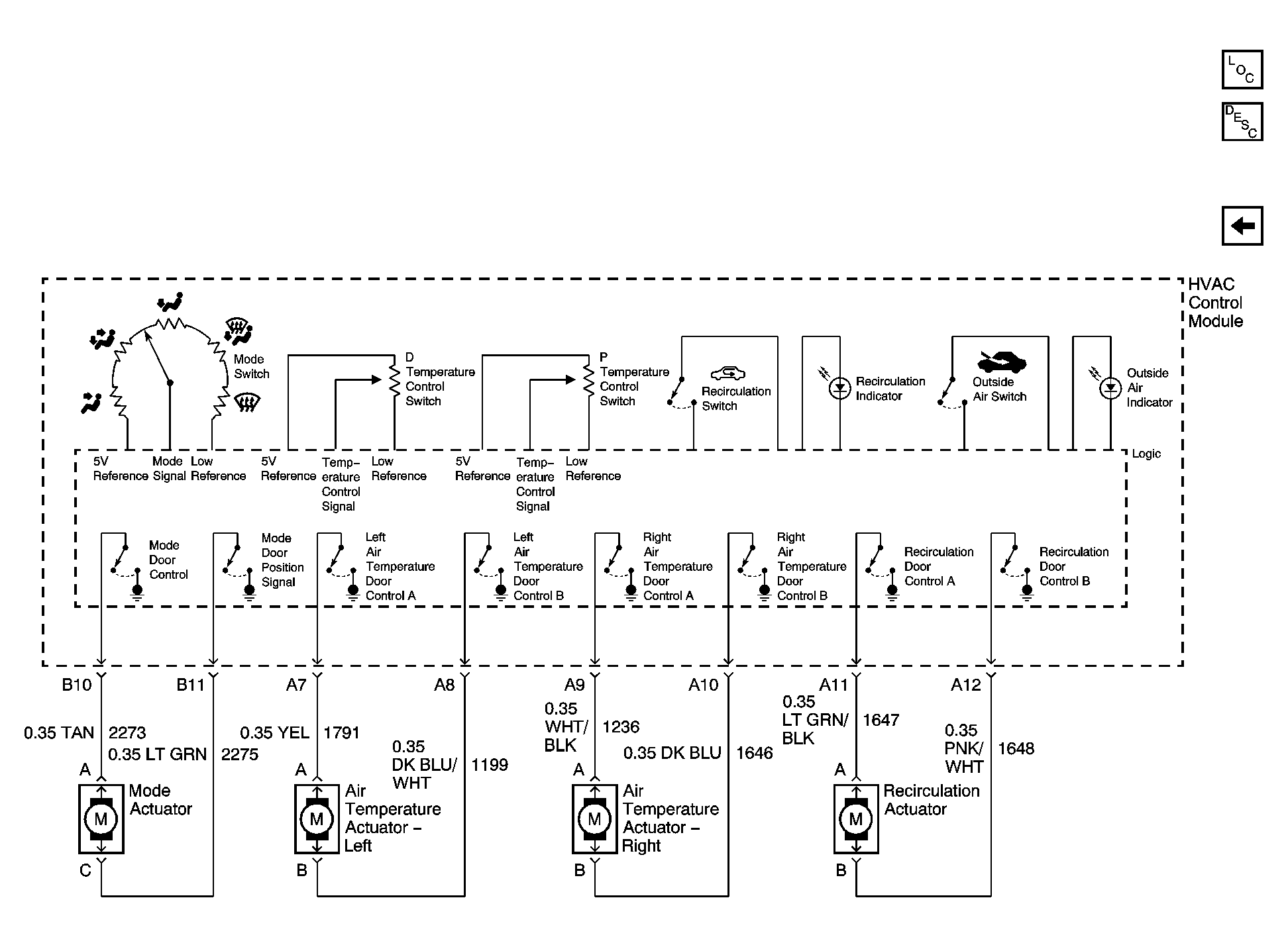

Fig 3: Mode and Air Temperature Controls Schematic
