Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent container filler neck to the washer solvent container, pressing in until fully seated.
  2. Install the washer solvent container filler neck push-in retainer.

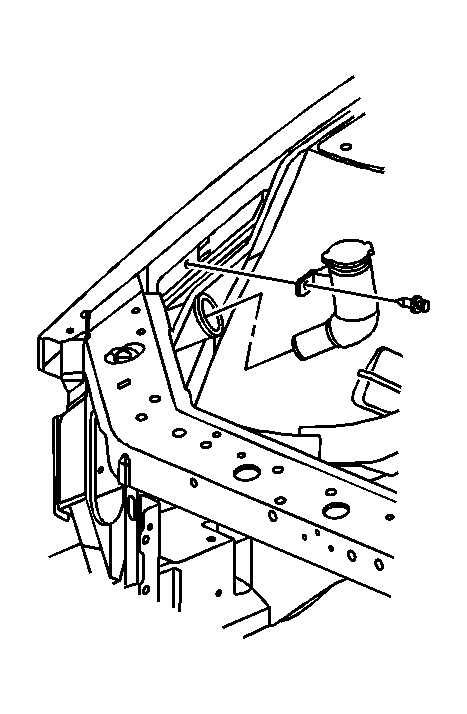

    3. Fig 1: Washer Solvent Container Filler Neck
    GM815205Courtesy of GENERAL MOTORS CORP.
  3. Close the hood.
