Disabling Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.
  2. Turn OFF the ignition.
  3. Remove the key from the ignition switch.
  4. Remove the I/P fuse block cover.
    IMPORTANT: With the SIR Fuse removed and the ignition ON, the AIR BAG indicator illuminates. This is normal operation, and does not indicate an SIR system malfunction.
  5. Remove the SIR Fuse.
    6. Fig 1: SIR Fuse
    GM300140Courtesy of GENERAL MOTORS CORP.
  6. Remove the LH insulator panel.
  7. Remove the connector position assurance (CPA) from the inflatable restraint steering wheel module coil connector located at the base of the steering column.
  8. Disconnect the steering wheel module coil connector.

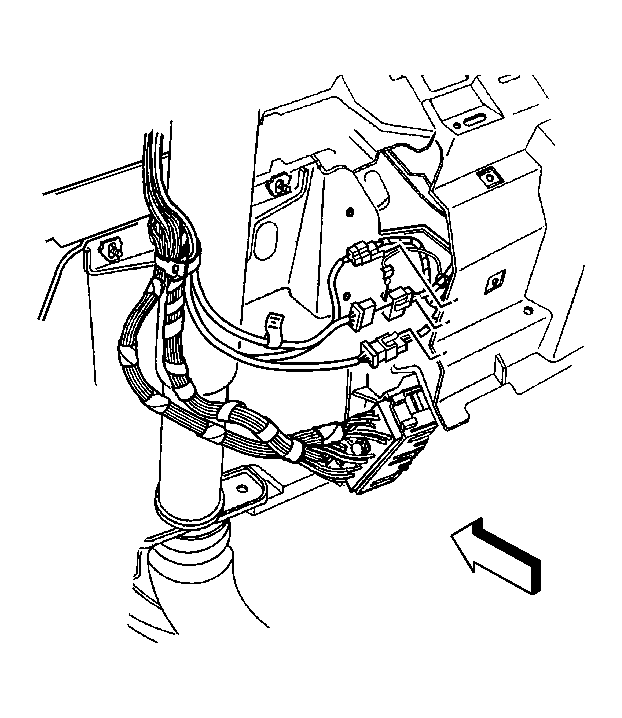

    9. Fig 2: Disconnecting Steering Wheel Module Coil Connector
    GM217461Courtesy of GENERAL MOTORS CORP.
  9. Remove the RH I/P access hole cover.
  10. Remove the CPA from the inflatable restraint I/P module connector, located at the RH side of the I/P.
  11. Disconnect the I/P module connector.
    12. Fig 3: Disconnecting I/P Module Connector
    GM300141Courtesy of GENERAL MOTORS CORP.
  12. Remove the CPA from the inflatable restraint side impact module - LF connector (1), located under the driver seat.
  13. Disconnect the side impact module - LF connector.
    14. Fig 4: View Of Deployment Harness At Side Impact Module
    GM628320Courtesy of GENERAL MOTORS CORP.
