Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Align the top and bottom of the rear compartment strut with the ball studs on the hinge.

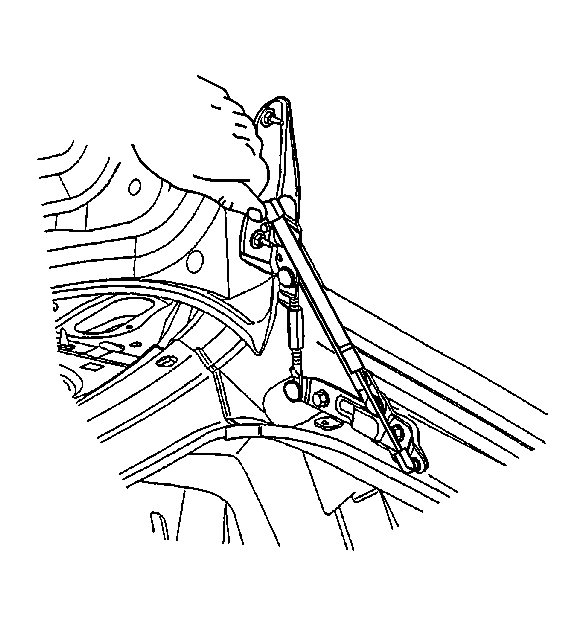

Fig 1: Rear Compartment Strut

Courtesy of GENERAL MOTORS CORP.

Install the rear compartment strut onto the upper ball stud, pressing into place until fully seated.

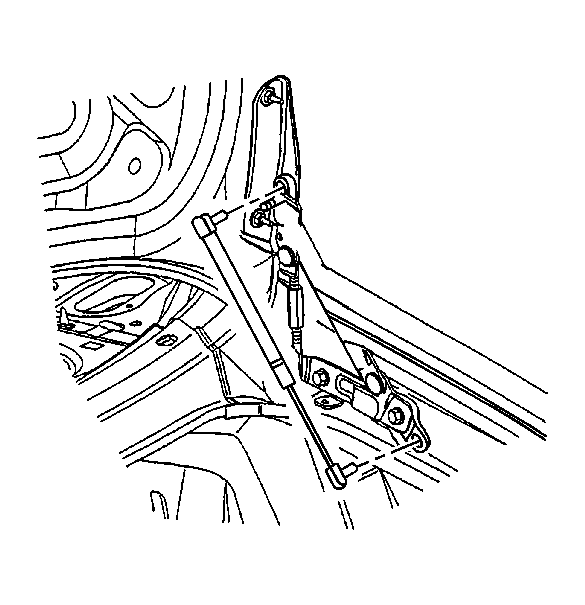

Fig 2: Installing Rear Compartment Strut Onto Upper Ball Stud

Courtesy of GENERAL MOTORS CORP.

Install the rear compartment strut onto the lower ball stud, pressing into place until fully seated.

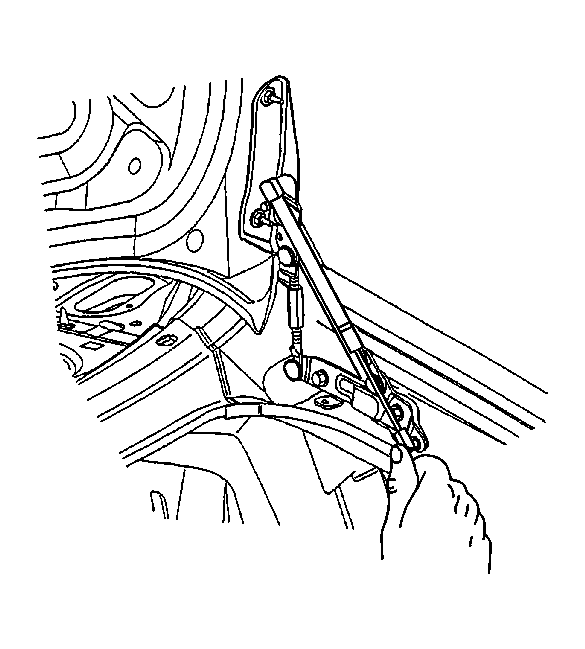

Fig 3: Installing Rear Compartment Strut Onto Lower Ball Stud

Courtesy of GENERAL MOTORS CORP.

Close the upper and lower strut retainers.
Remove the support and close the rear compartment.
