Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear compartment lid ajar lamp/switch (6) to the rear compartment lid latch (8).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the rear compartment lid ajar lamp/switch to rear compartment lid latch screw (5).

    Tighten:  Tighten the rear compartment lid ajar lamp/switch to rear compartment lid latch screw to 5 N.m (44 lb in).

  3. Install the rear compartment lid latch. Refer to Latch Replacement - Rear Compartment Lid .

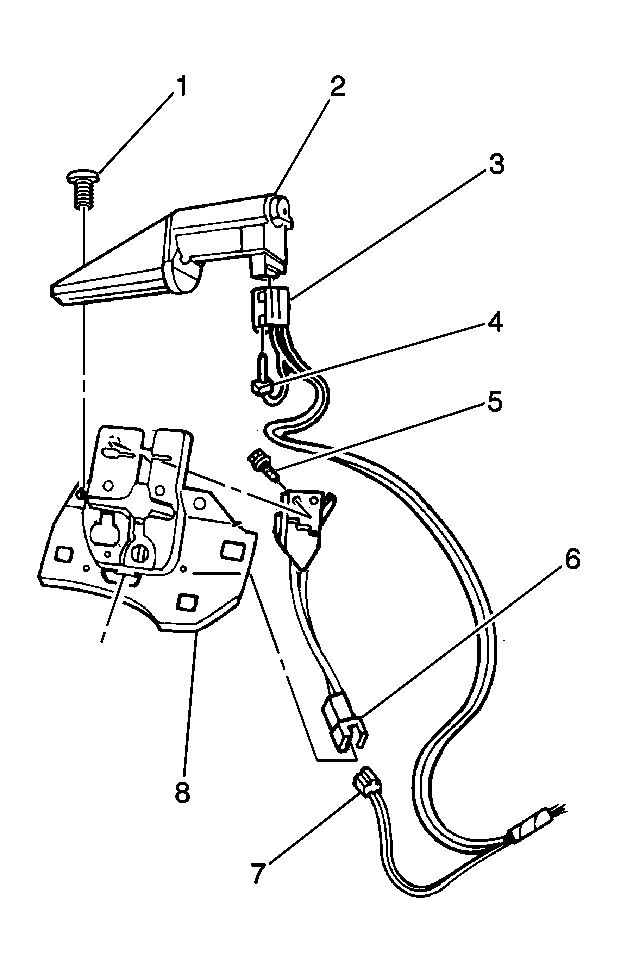

    4. Fig 1: Rear Compartment Lid Ajar Switch & Components
    GM330424Courtesy of GENERAL MOTORS CORP.
  4. Close the rear compartment.
