Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear compartment latch to the marks made on the rear compartment.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the rear compartment latch nuts.

    Tighten:  Tighten the rear compartment latch nuts to 9 N.m (80 lb in).

  3. Connect the electrical connectors to the rear compartment latch.

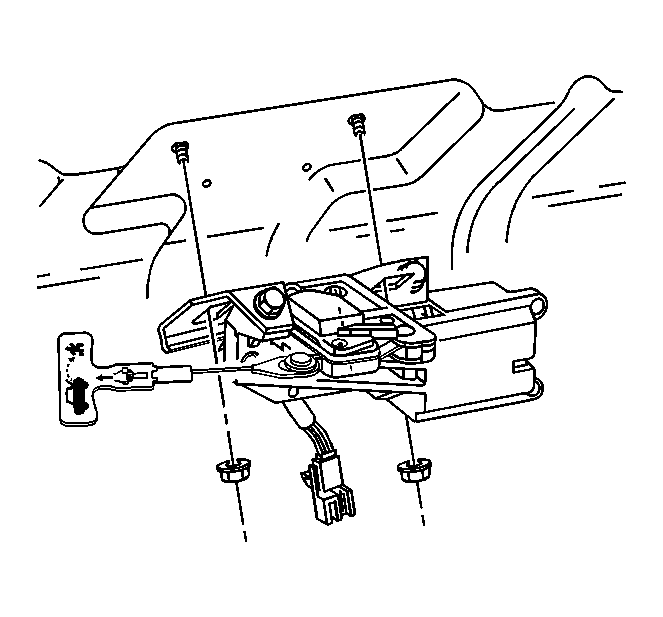

    4. Fig 1: Rear Compartment Latch
    GM739321Courtesy of GENERAL MOTORS CORP.
  4. Close the rear compartment.
