Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear compartment lid to the hinges at the alignment marks, with an assistant.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the nuts to the rear compartment hinges, with an assistant.

    Tighten:  Tighten the rear compartment lid hinge nuts to 25 N.m (18 lb ft).

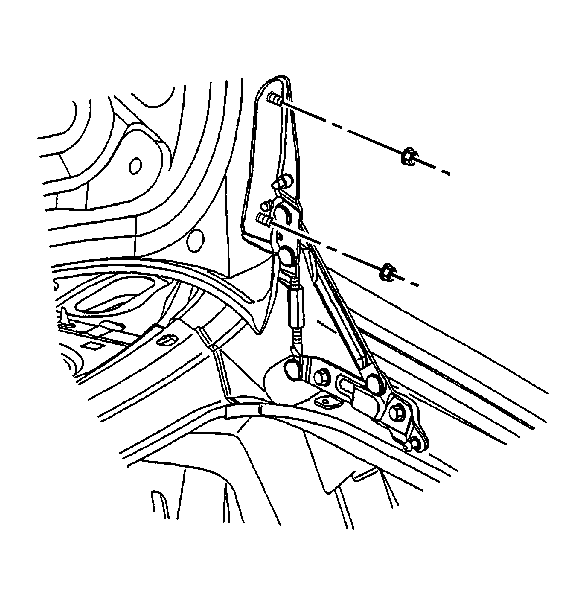

    3. Fig 1: Rear Compartment Hinges (Upper Mounting Nuts)
    GM460248Courtesy of GENERAL MOTORS CORP.
  3. Install the wiring harness to the quarter panel.
  4. Install the wiring harness grommet to the right quarter panel, using a small, flat-bladed tool.
  5. Connect the electrical connector to the right quarter panel.

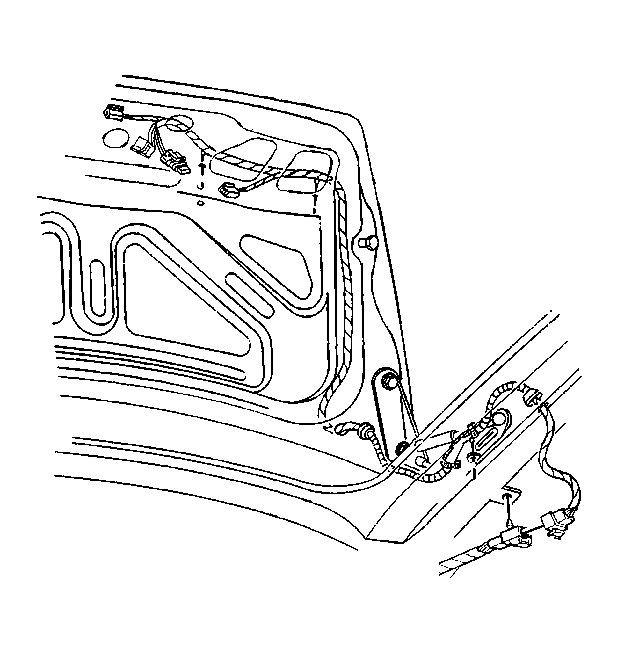

    6. Fig 2: Right Quarter Panel Electrical Connector
    GM458217Courtesy of GENERAL MOTORS CORP.
  6. Connect the electrical connector to the rear compartment lid lamps and the flasher fuse (1), if equipped.

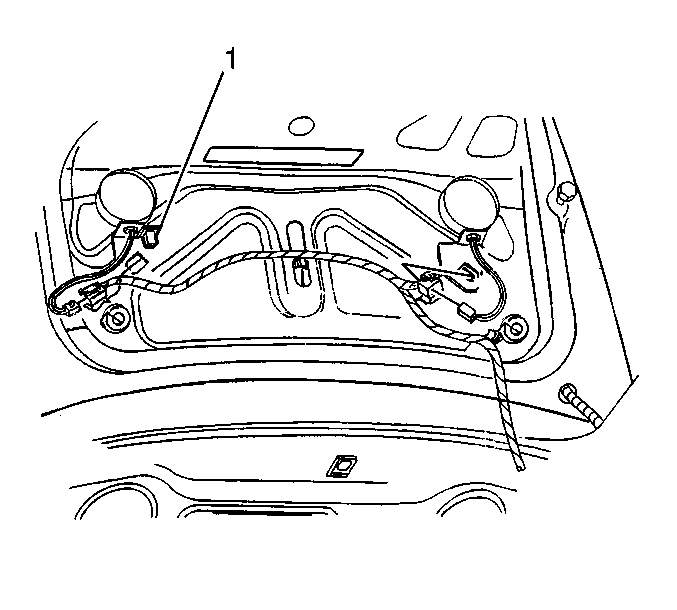

    7. Fig 3: Rear Compartment Lid Lamps & Flasher Fuse
    GM556315Courtesy of GENERAL MOTORS CORP.
  7. Remove the protective coverings.
  8. Close the rear compartment.
