Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the instrument cluster.
  2. Install the instrument cluster to the I/P.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the instrument cluster screws.

    Tighten:  Tighten the instrument cluster screws to 2 N.m (18 lb in).

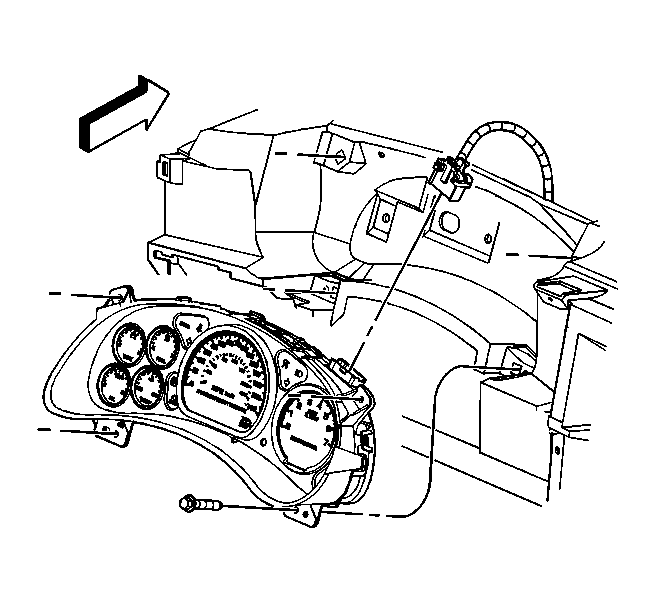

    4. Fig 1: Instrument Panel Cluster
    GM519478Courtesy of GENERAL MOTORS CORP.
  4. Install the I/P cluster trim plate. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster (Impala)  or Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster (Monte Carlo) .
  5. If a new instrument cluster was installed, program the cluster. Refer to Service Programming System (SPS) in Vehicle Control Systems.
